VLT AutomationDrive FC 301/302
Programming Guide

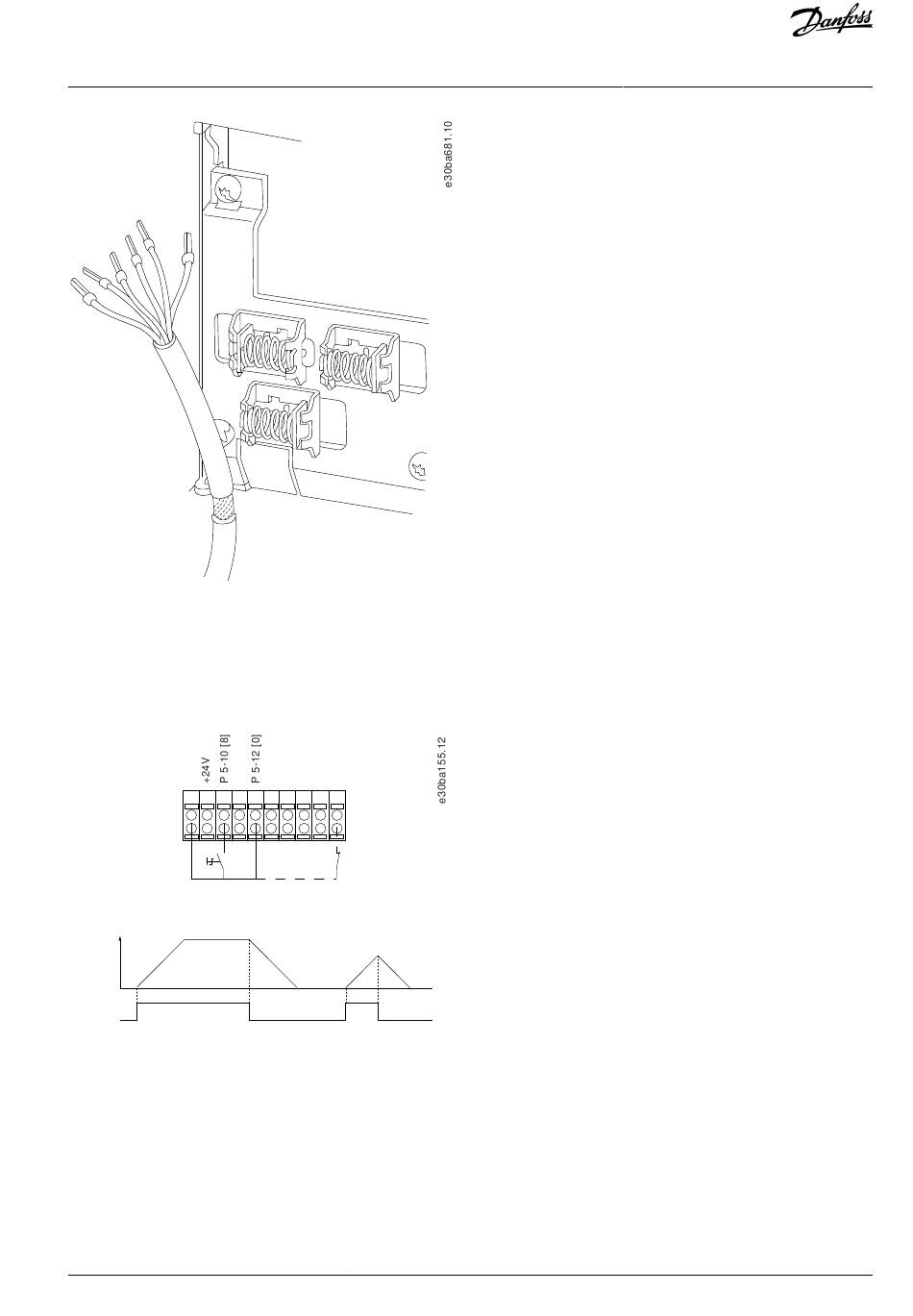

Illustration 4: Grounding of Shielded/Armored Control Cables

3.1.1 Start/Stop

Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [8] Start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [0] No operation (Default [2] Coast inverse).
Terminal 37 = Safe Torque Off.
12 13 18 19
Start/Stop
Speed
Start/Stop
[18]
Illustration 5: Start/Stop

3.1.2 Pulse Start/Stop

Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9] Latched start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [6] Stop inverse.
Terminal 37 = Safe Torque Off.
Danfoss A/S © 2022.12
27 29 32 33 20 37
Safe Stop
Electrical Diagrams
AU275636650261en-000101 / 130R0334 | 17
