FC 300 Instruction Manual

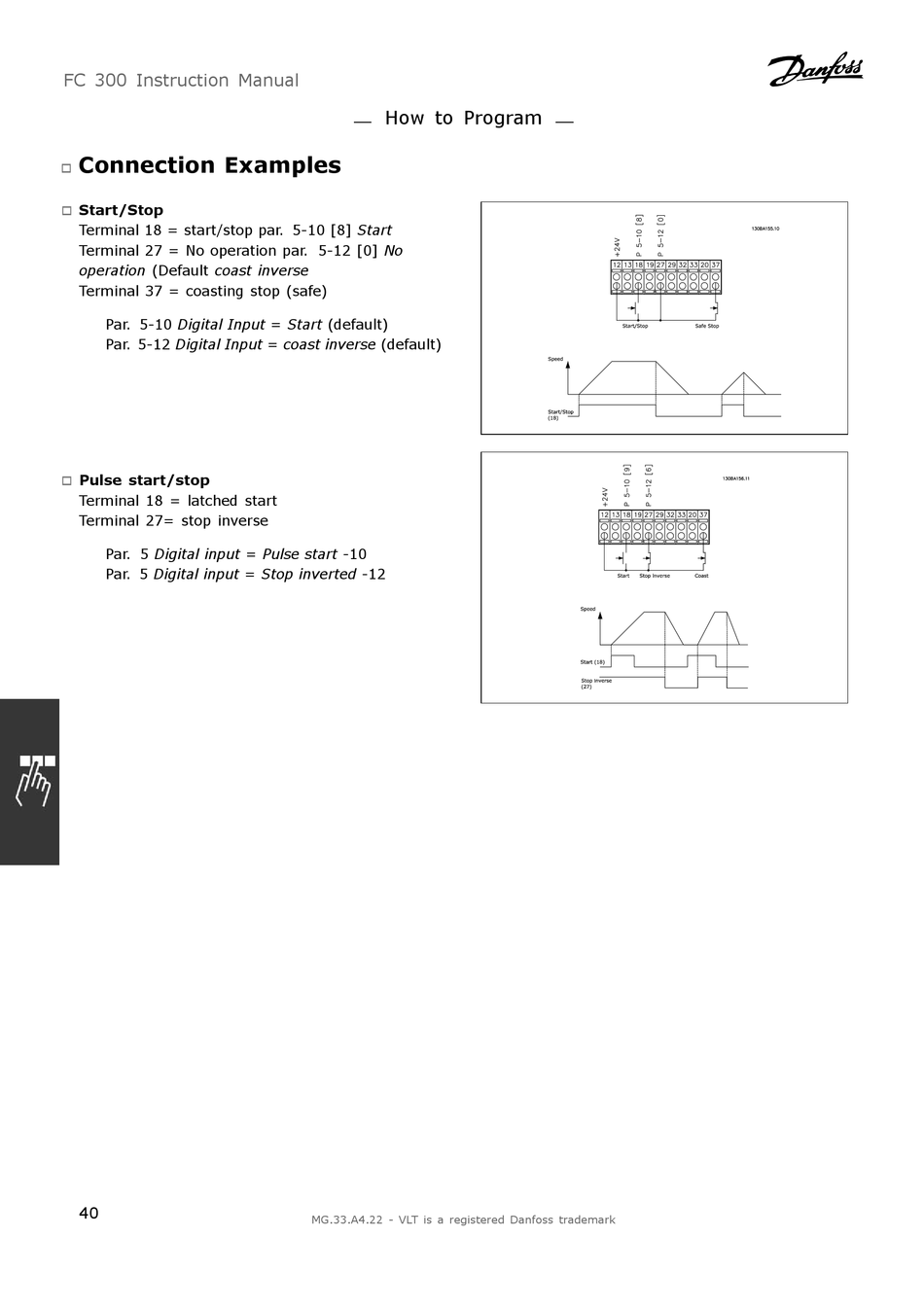

Connection Examples
"
Start/Stop
"
Terminal 18 = start/stop par. 5-10 [8] Start
Terminal 27 = No operation par. 5-12 [0] No
operation (Default coast inverse
Terminal 37 = coasting stop (safe)
Par. 5-10 Digital Input = Start (default)
Par. 5-12 Digital Input = coast inverse (default)
Pulse start/stop
"
Terminal 18 = latched start
Terminal 27= stop inverse
Par. 5 Digital input = Pulse start -10
Par. 5 Digital input = Stop inverted -12
40
How to Program
MG.33.A4.22 - VLT is a registered Danfoss trademark
