Operating Guide | VLT® Refrigeration Drive FC 103
7.1.6 Wiring Configuration: Start/Stop

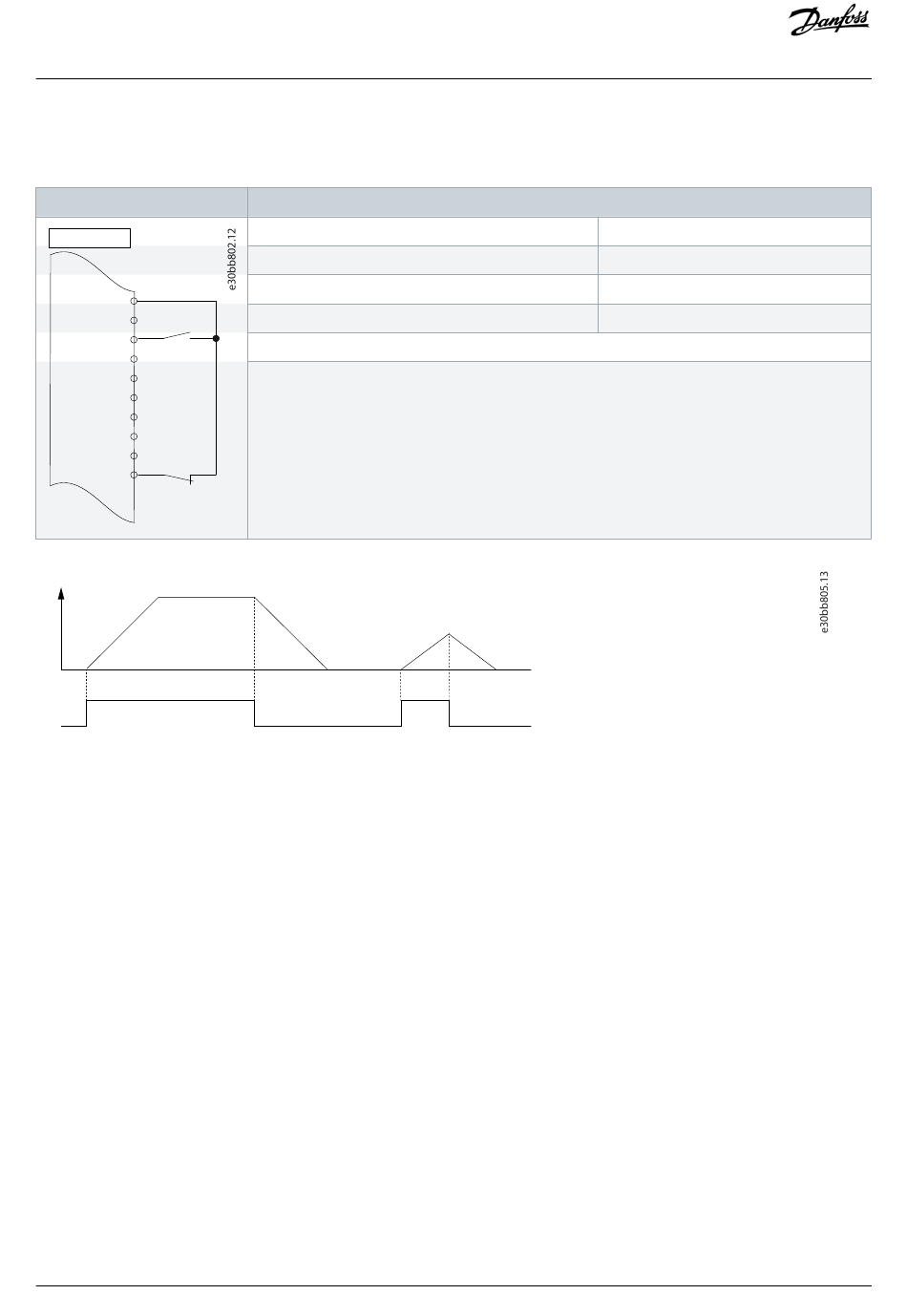

Table 28: Start/Stop Command with Safe Torque Off Option
Drive
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
Speed
Start/Stop (18)
Illustration 40:
Start/Stop Command with Safe Torque Off
Danfoss A/S © 2020.01
Parameter
Function
Parameter 5-10 Terminal 18 Digital Input
Parameter 5-12 Terminal 27 Digital Input
Parameter 5-19 Terminal 37 Safe Stop
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
Wiring Configuration Examples
Setting
[Start]*
[0] No operation
[1] Safe Stop Alarm
AQ275652766279en-000101 / 130R0707| 83
