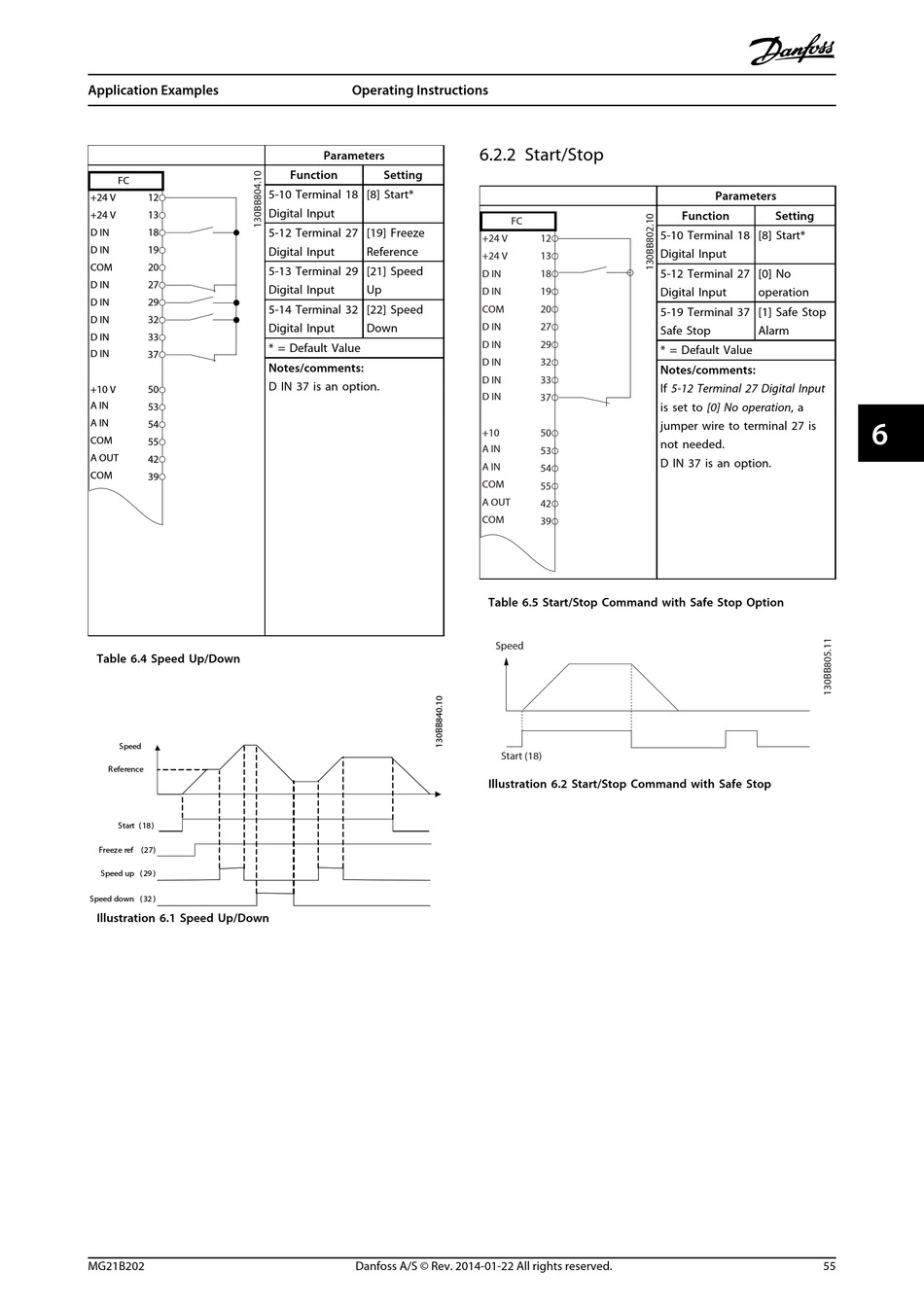

Application Examples
FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
37
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.4 Speed Up/Down
S p e e d
R e f e r e n c e
S t a r t ( 1 8 )
F r e e z e r e f ( 2 7 )
S p e e d u p ( 2 9 )
S p e e d d o w n ( 3 2 )
Illustration 6.1 Speed Up/Down
MG21B202
Operating Instructions
Parameters
Function
Setting
5-10 Terminal 18
[8] Start*
Digital Input
5-12 Terminal 27
[19] Freeze
Digital Input
Reference
5-13 Terminal 29
[21] Speed
Digital Input
Up
5-14 Terminal 32
[22] Speed
Digital Input
Down
* = Default Value
Notes/comments:
D IN 37 is an option.
Danfoss A/S © Rev. 2014-01-22 All rights reserved.

6.2.2 Start/Stop

FC
+24 V
12
+24 V
13
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
32
D IN
D IN
33
D IN
37
+10
50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.5 Start/Stop Command with Safe Stop Option
Speed
Start (18)
Illustration 6.2 Start/Stop Command with Safe Stop
Parameters
Function
Setting
5-10 Terminal 18
[8] Start*
Digital Input
5-12 Terminal 27
[0] No
Digital Input
operation
5-19 Terminal 37
[1] Safe Stop
Safe Stop
Alarm
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input
is set to [0] No operation, a
jumper wire to terminal 27 is
not needed.
D IN 37 is an option.
