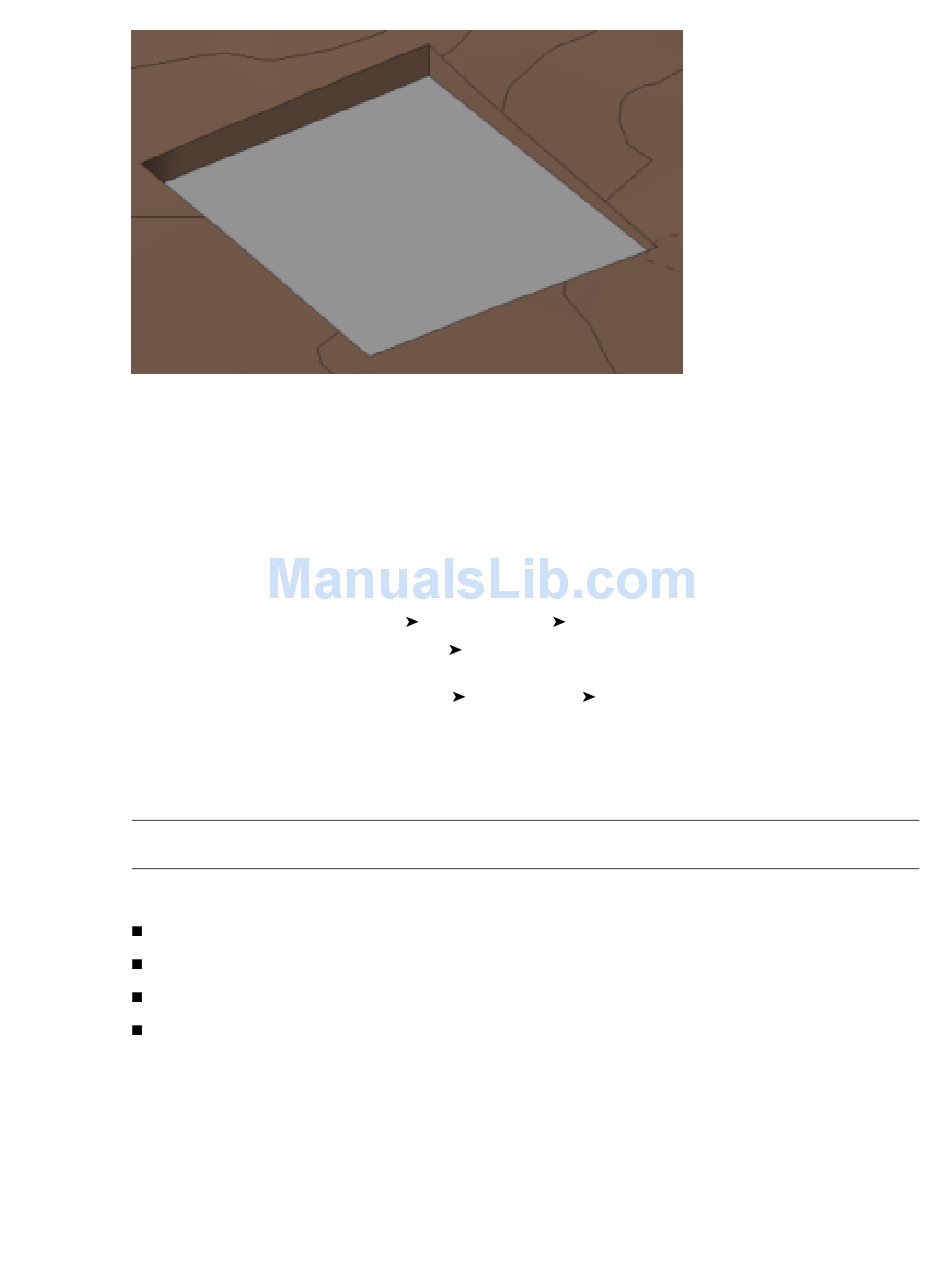

You can add a building pad to a toposurface only. It is recommended that you create the building pad within
a site plan. However, you can add a building pad to a toposurface in a floor plan view. The pad may not be
immediately visible in the floor plan view if the view range or building pad offset are not adjusted
appropriately. For example, suppose that you sketch a toposurface at an elevation of 10 meters in a floor
plan view. You then sketch a pad on the surface at an offset of –20 meters from the surface. If the view depth
of the plan view is not low enough, you will not see the pad. See

Adding a Building Pad

1 Open a site plan view.
2 Click Massing & Site tab
3 Click Create Pad Boundary tab
4 Click Create Pad Boundary tab
5 In the Instance Properties dialog, set the Height Offset From Level and other building pad
6 Click OK.
7 Click Finish Building Pad.
TIP To see the building pad in a Floor Plan view, set the building pad offset to a value higher than Level One, or
adjust the view range.
Related topics

Modifying Building Pads

Modifying the Structure of a Building Pad
Sloping a Building Pad
Building Pad Properties
Modifying Building Pads
1 Open the site plan that contains the building pad.
2 Select the building pad.
966 | Chapter 15 Site Design
as a closed loop. See Sketching
properties as needed. See
on page 966
on page 967
on page 968
Model Site panel Building Pad.
Draw panel, and use the draw tools to sketch the building pad
on page 303.
Element panel
Building Pad Properties on page 968.
on page 967
View Range on page 247.
Building Pad Properties.
