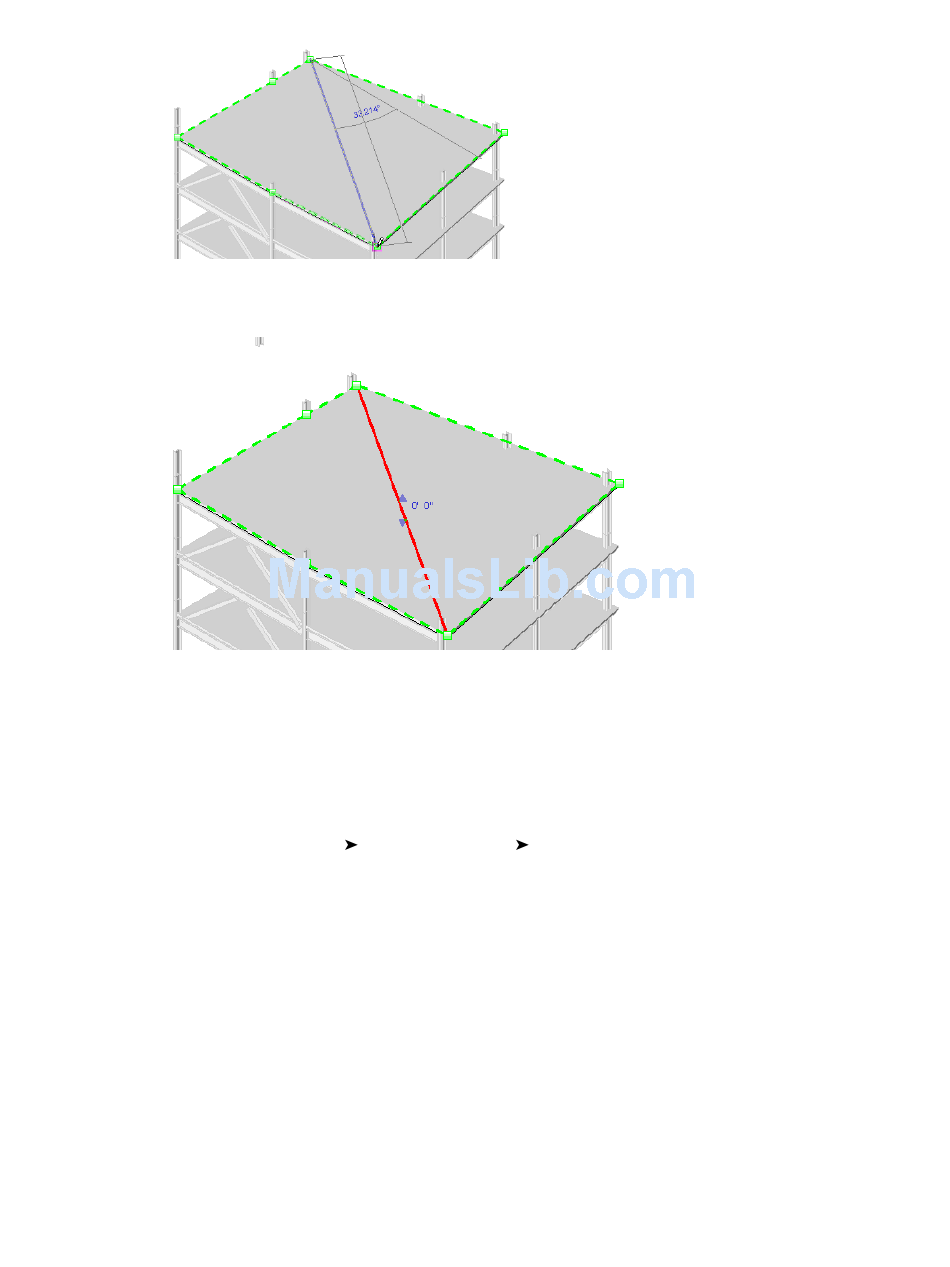

4 Select another vertex, edge, face or point anywhere on the structural floor to end the split line.
A new edge will be added to the face of the structural floor.

Using the Pick Supports Tool

You can use the Pick Supports tool to pick beams to define split lines and create constant bearing lines for
the structural floor.
1 Select the structural floor, roof, or floor you want to modify.
2 Click Modify Floors tab
3 Select an existing beam.
A new split edge is created using the endpoint elevations from the picked reference. The elevations are moved
up from the bottom face to the top face of the structural floor or roof using the structural floor or roof
thickness.

Using the Curved Edge Condition Tool

Structural Floors drawn with arc segments can be altered using structural floor shape editing tools. The
Curved Edge Condition tool is an additional tool specific to curved edges. It sets them to project a flat surface
to the edge or a curved surface that conforms to the arc edge of the structural floor.
1 Right click the shape edited curved edge structural floor you want to modify and select Element
Properties.
948 | Chapter 14 Structural Modeling
Shape Editing panel Pick Supports.
