30 ULP Coprocessor (ULP)
Once the timer expires, the ULP coprocessor is powered up and runs a program with the program counter
(PC) which is stored in register SENS_PC_INIT. The relationship between the described signals and registers is
shown in Figure 30-19.
On reset or power-up the above-mentioned ULP program may start up only after the expiration of
SENS_ULP_CP_SLEEP_CYC0_REG, which is the default selection period of the ULP timer.

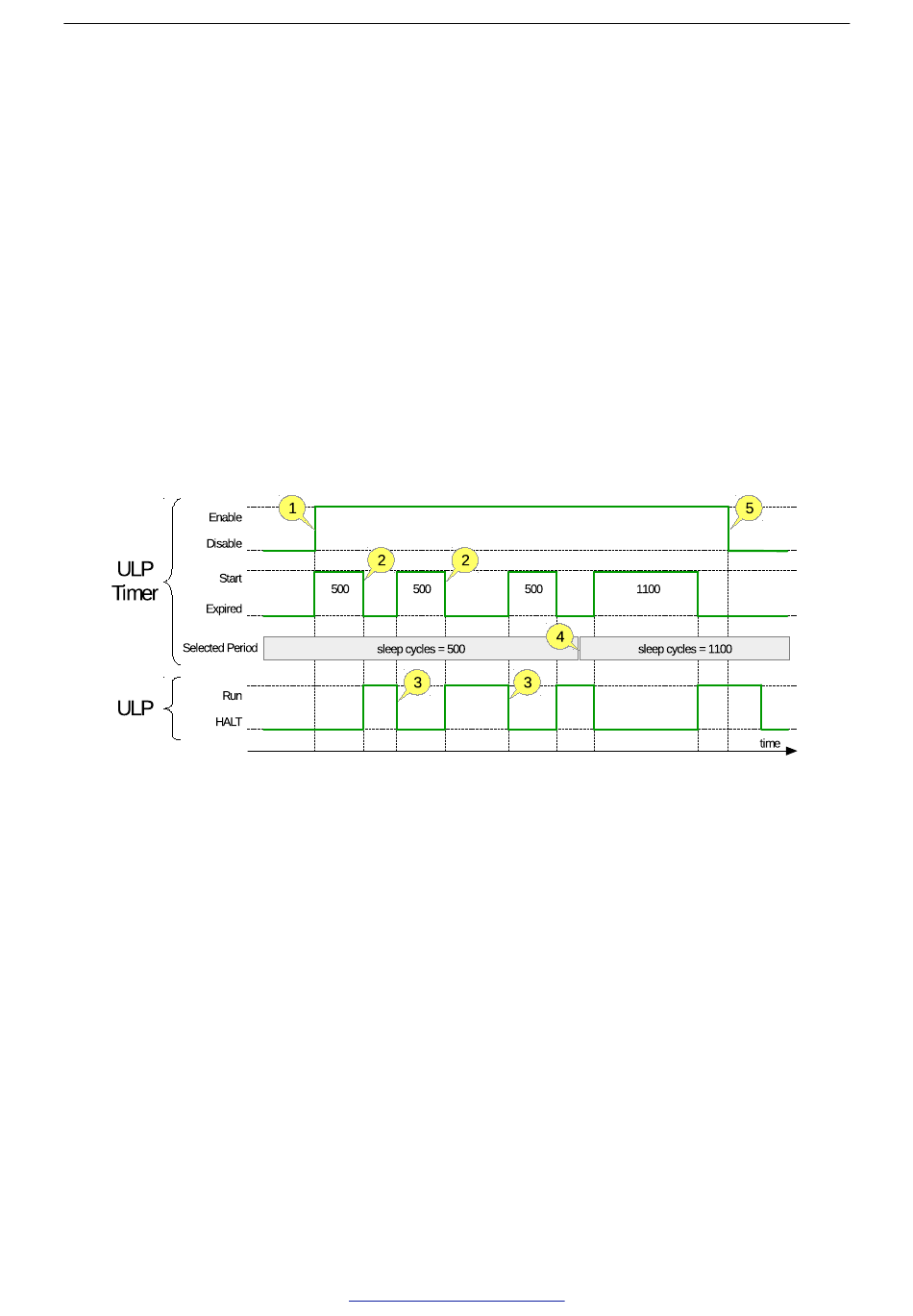

A sample operation sequence of the ULP program is shown in Figure 30-20, where the following steps are
executed:
1. Software enables the ULP timer by using bit RTC_CNTL_ULP_CP_SLP_TIMER_EN.
2. The ULP timer expires and the ULP coprocessor starts running the program at PC = SENS_PC_INIT.
3. The ULP program executes the HALT instruction; the ULP coprocessor is halted and the timer gets
restarted.
4. The ULP program executes the SLEEP instruction to change the sleep timer period register.
5. The ULP program, or software, disables the ULP timer by using bit RTC_CNTL_ULP_CP_SLP_TIMER_EN.
The specific timing of the wakeup, program execution and sleep sequence is governed by the ULP FSM as
follows:
1. On the ULP timer expiration the FSM wakes up the ULP and this process takes two clock cycles.
2. Then, before executing the program, the FSM waits for the number of cycles configured in
RTC_CNTL_ULPCP_TOUCH_START_WAIT
waiting for the 8 MHz clock to get stable.
3. The ULP program is executed.
4. After calling HALT instruction, the program is stopped. The FSM requires additional two clock cycles to
put the ULP to sleep.
30.6 RTC_I2C Controller
The ULP coprocessor can use a separate I²C controller, located in the RTC domain, to communicate with
external I²C slave devices. RTC_I2C has a limited feature set, compared to I2C0/I2C1 peripherals.
Espressif Systems
Figure 30-20. Sample of a ULP Operation Sequence
field of the
Submit Documentation Feedback
RTC_CNTL_TIMER2_REG
676
register. This time is spent
