7 SPI Controller (SPI)
7 SPI Controller (SPI)
7.1 Overview
As Figure 7-1 shows, ESP32 integrates four SPI controllers which can be used to communicate with external
devices that use the SPI protocol. Controller SPI0 is used as a buffer for accessing external memory. Controller
SPI1 can be used as a master. Controllers SPI2 and SPI3 can be configured as either a master or a slave. When
used as a master, each SPI controller can drive multiple CS signals (CS0~CS2) to activate multiple slaves.
Controllers SPI1~SPI3 share two DMA channels.
The SPI signal buses consist of D, Q, CS0-CS2, CLK, WP, and HD signals, as Table
and SPI1 share one signal bus through an arbiter; the signals of the shared bus start with "SPI". Controllers SPI2
and SPI3 use signal buses starting with "HSPI" and "VSPI" respectively. The I/O lines included in the above-
mentioned signal buses can be mapped to pins via either the IO_MUX module or the GPIO matrix. (Please refer
to Chapter IO_MUX for details.)
The SPI controller supports four-line full-duplex/half-duplex communication (MOSI, MISO, CS, and CLK lines)
and three-line half-duplex-only communication (DATA, CS, and CLK lines) in GP-SPI mode. In QSPI mode, an
SPI controller accesses the flash or SRAM by using signal buses D, Q, CS0~CS2, CLK, WP, and HD as a four-bit
parallel SPI bus. The mapping between SPI bus signals and pin function signals under different communication
modes is shown in Table 7-1.
Table 7-1. Mapping Between SPI Bus Signals and Pin Function Signals
Four-line GP-SPI Three-line GP-SPI
Full-duplex/half- Half-duplex signal
duplex signal bus bus
MOSI DATA
MISO -
CS CS
CLK CLK
- -
- -
Espressif Systems

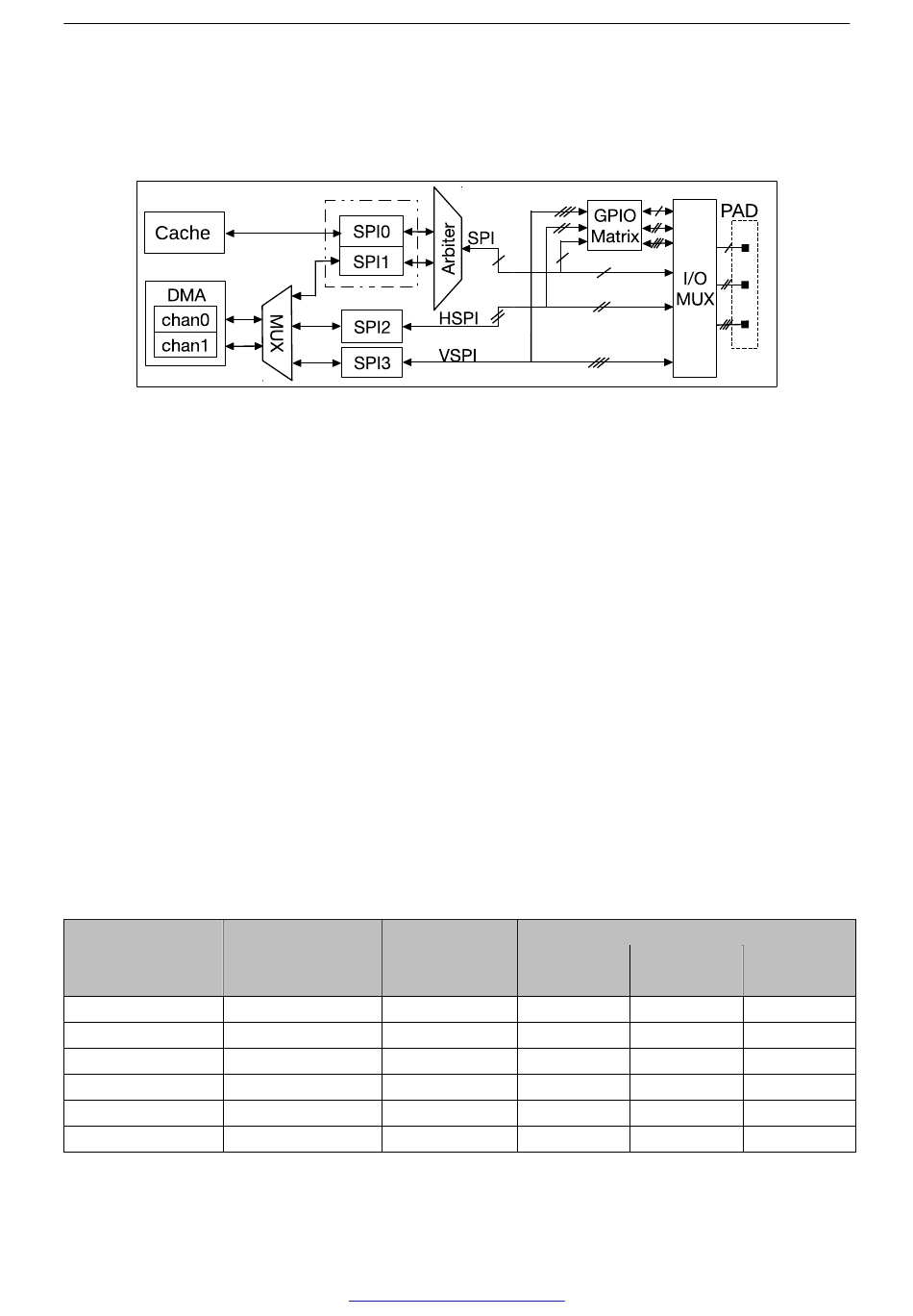

Figure 7-1. SPI Architecture
QSPI
Signal bus
D
Q
CS
CLK
WP
HD
127
Submit Documentation Feedback
7-1 shows. Controllers SPI0
Pin function signals
SPI signal HSPI signal
bus bus
SPID HSPID
SPIQ HSPIQ
SPICS0 HSPICS0
SPICLK HSPICLK
SPIWP HSPIWP
SPIHD HSPIHD
