28 Process ID Controller (PID)

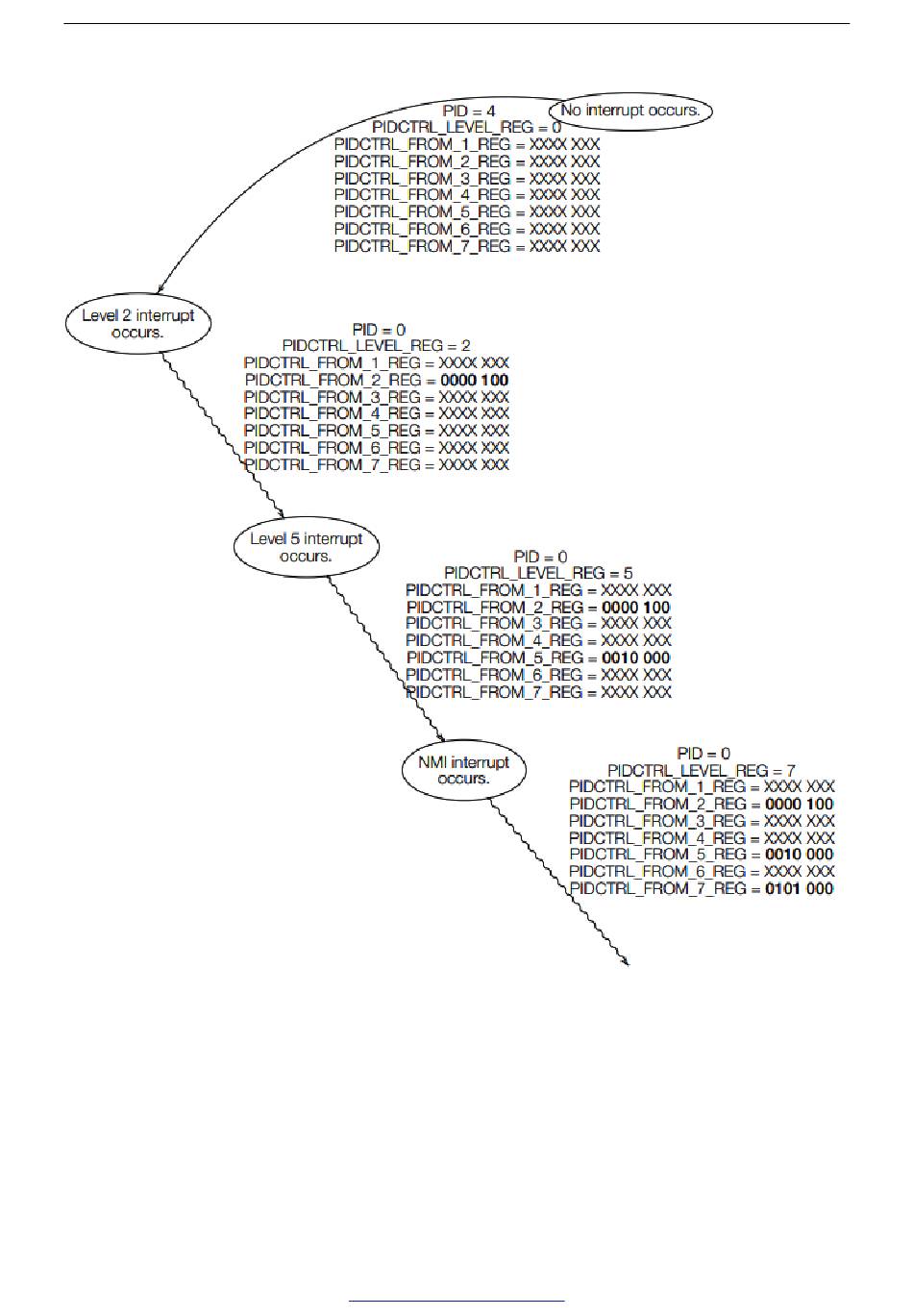

Figure 28-1. Interrupt Nesting
step 5.
In step 6, after the values of register PIDCTRL_PID_CONFIRM_REG and register PIDCTRL_NMI_MASK_DISABLE_REG
are set to 1, PID Controller will not immediately switch PID to the value of register PIDCTRL_PID_NEW_REG, nor
disable CPU NMI Interrupt Mask signal at once. Instead, PID Controller performs each task after a different num-
ber of clock cycles. The numbers of clock cycles are the values specified in register PIDCTRL_PID_DELAY_REG
and PIDCTRL_NMI_DELAY_REG respectively.
