12 I2S Controller (I2S)
The clock configuration of the LCD master transmitting mode is identical to I2S' clock configuration. In the LCD
mode, the frequency of WS is half of f
In the ADC/DAC mode, use PLL_F160M_CLK as the clock source.
12.5.1 LCD Master Transmitting Mode
As is shown in Figure 12-13, the WR signal of LCD connects to the WS signal of I2S. The LCD data bus width is
24 bits.
The I2S_LCD_EN bit of register I2S_CONF2_REG needs to be set and the I2S_TX_SLAVE_MOD bit of register
I2S_CONF_REG needs to be cleared, in order to configure I2S to the LCD master transmitting mode. Mean-
while, data should be sent under the correct mode, according to the I2S_TX_CHAN_MOD[2:0] bit of regis-
ter I2S_CONF_CHAN_REG and the I2S_TX_FIFO_MOD[2:0] bit of register I2S_FIFO_CONF_REG. The WS signal
needs to be inverted when it is routed through the GPIO Matrix. For details, please refer to the chapter about
IO_MUX and the GPIO Matrix. The I2S_LCD_TX_SDX2_EN bit and the I2S_LCD_TX_WRX2_EN bit of register
I2S_CONF2_REG should be set to the LCD master transmitting mode, so that both the data bus and WR signal
work in the appropriate mode.
As is shown in Figure 12-14
bit should be set to 0 in the data frame, form 1. Both I2S_LCD_TX_SDX2_EN bit and I2S_LCD_TX_WRX2_EN bit
are set to 1 in the data frame, form 2.
12.5.2 Camera Slave Receiving Mode
ESP32 I2S supports a camera slave mode for high-speed data transfer from external camera modules. As
shown in Figure 12-16, in this mode, I2S is set to slave receiving mode. Besides the 16-channel data signal bus
Espressif Systems
.
BCK

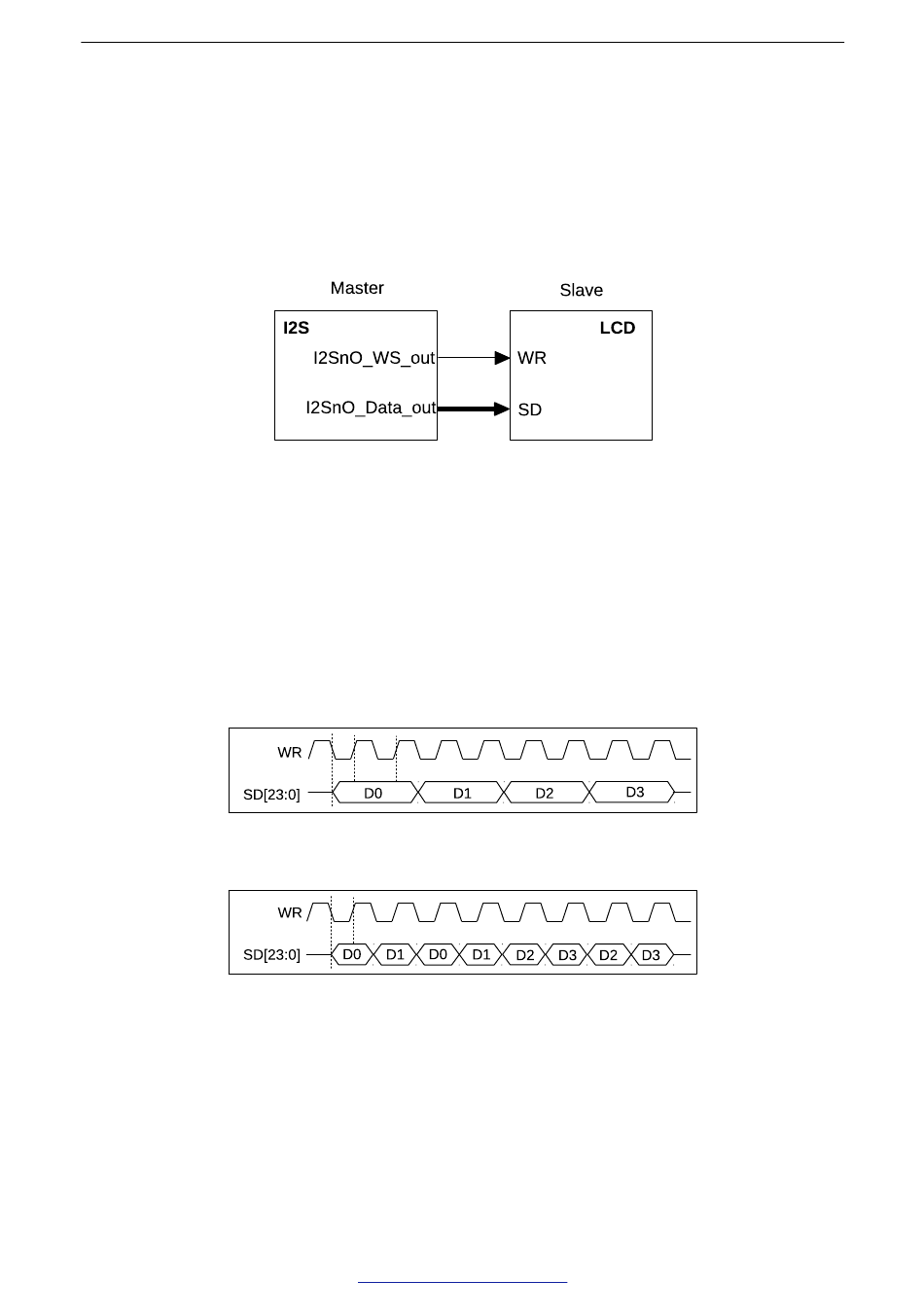

Figure 12-13. LCD Master Transmitting Mode
Figure 12-14. LCD Master Transmitting Data Frame, Form 1
Figure 12-15. LCD Master Transmitting Data Frame, Form 2
and Figure 12-15, the I2S_LCD_TX_WRX2_EN bit should be set to 1 and the I2S_LCD_TX_SDX2_EN
