16 Motor Control PWM (PWM)
Figure
16-21

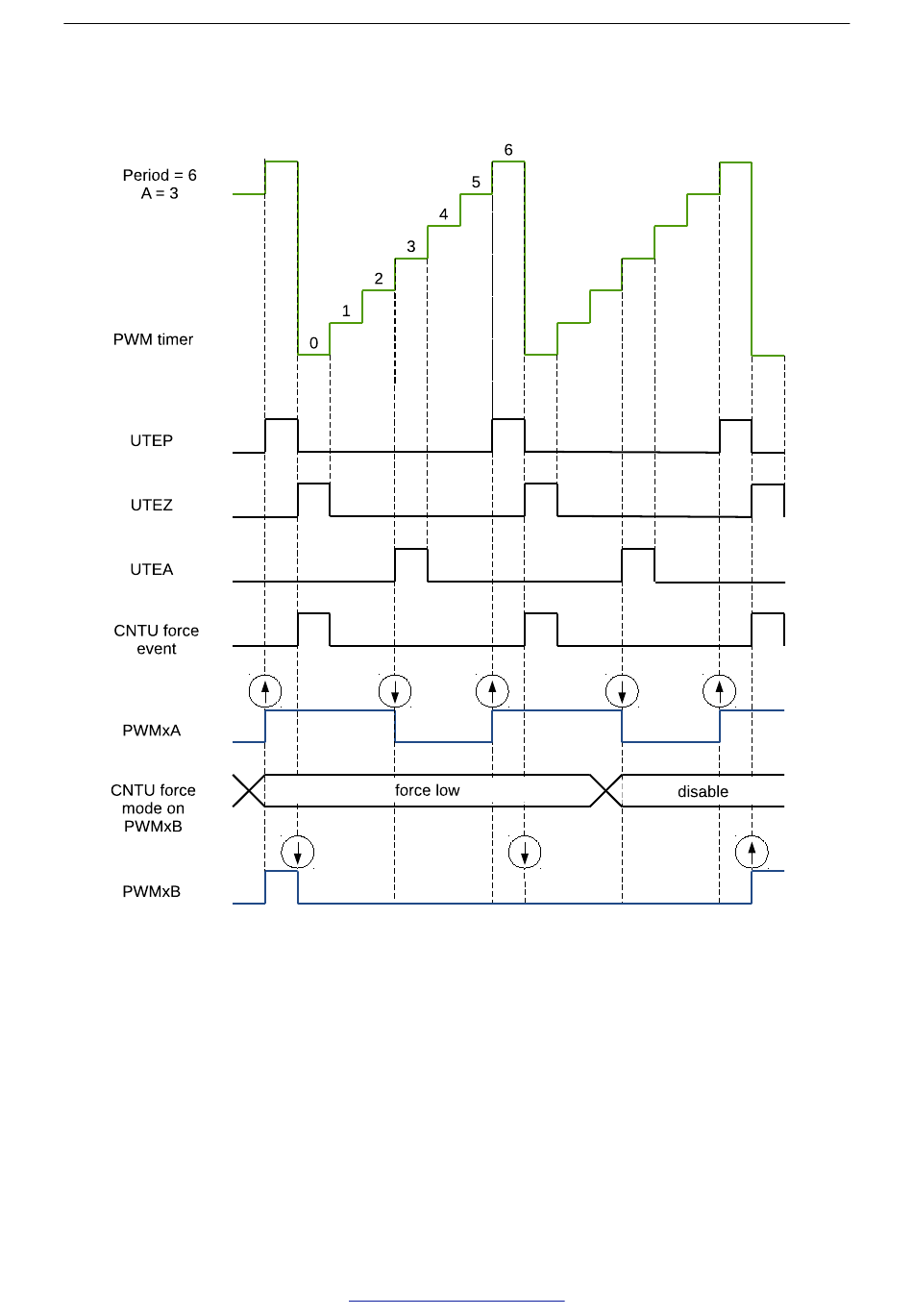

shows a waveform of CNTU software-force events. UTEZ events are selected as triggers for CNTU
software-force events. CNTU is used to force the PWMxB output low. Forcing on PWMxA is disabled.
Figure 16-21. Example of a CNTU Software-Force Event on PWMxB
