16 Motor Control PWM (PWM)
Rising edge (RED) and falling edge (FED) delays may be set up independently. The delay value is programmed
using the 16-bit registers
clock (DT_clk) periods by which a signal edge is delayed. DT_CLK can be selected from PWM_clk or PT_clk
through register PWM_DTx_CLK_SEL.
To calculate the delay on falling edge (FED) and rising edge (RED), use the following formulas:
Espressif Systems

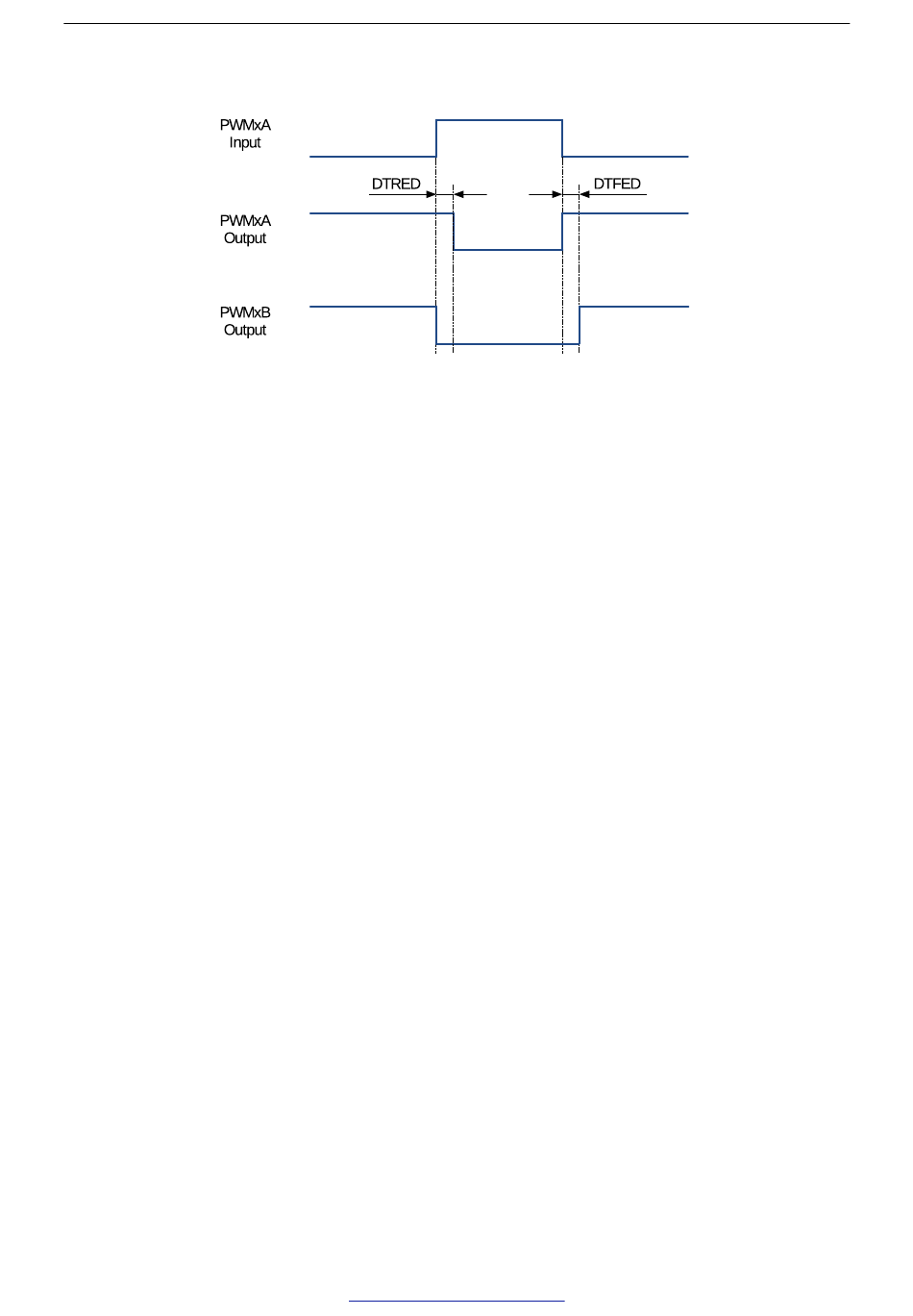

Figure 16-26. Active Low (AL) Dead Time Waveforms
PWM_DTx_RED and PWM_DTx_FED. The register value represents the number of
F ED = P W M _DT x_F ED × T
RED = P W M _DT x_RED × T
Submit Documentation Feedback
DT _clk
DT _clk
