16 Motor Control PWM (PWM)
31
0 0 0 0 0 0 0
PWM_GEN1_B_SHDW_FULL Set and reset by hardware. If set, PWM generator 1 time stamp B's
shadow register is filled and to be transferred to time stamp B's active register. If cleared, time
stamp B's active register has been updated with shadow register's latest value. (RO)
PWM_GEN1_A_SHDW_FULL Set and reset by hardware. If set, PWM generator 1 time stamp A's
shadow register is filled and to be transferred to time stamp A's active register. If cleared, time
stamp A's active register has been updated with shadow register latest value. (RO)
PWM_GEN1_B_UPMETHOD Updating method for PWM generator 1 time stamp B's active register.
0: immediately; when bit0 is set to 1: TEZ; when bit1 is set to 1: TEP; when bit2 is set to 1: sync;
when bit3 is set to 1: disable the update. (R/W)
PWM_GEN1_A_UPMETHOD Updating method for PWM generator 1 time stamp A's active register.
0: immediately; when bit0 is set to 1: TEZ; when bit1 is set to 1: TEP; when bit2 is set to 1: sync;
when bit3 is set to 1: disable the update. (R/W)
31
0 0 0 0 0 0 0
PWM_GEN1_A PWM generator 1 time stamp A's shadow register. (R/W)
31
0 0 0 0 0 0 0
PWM_GEN1_B PWM generator 1 time stamp B's shadow register. (R/W)
Espressif Systems

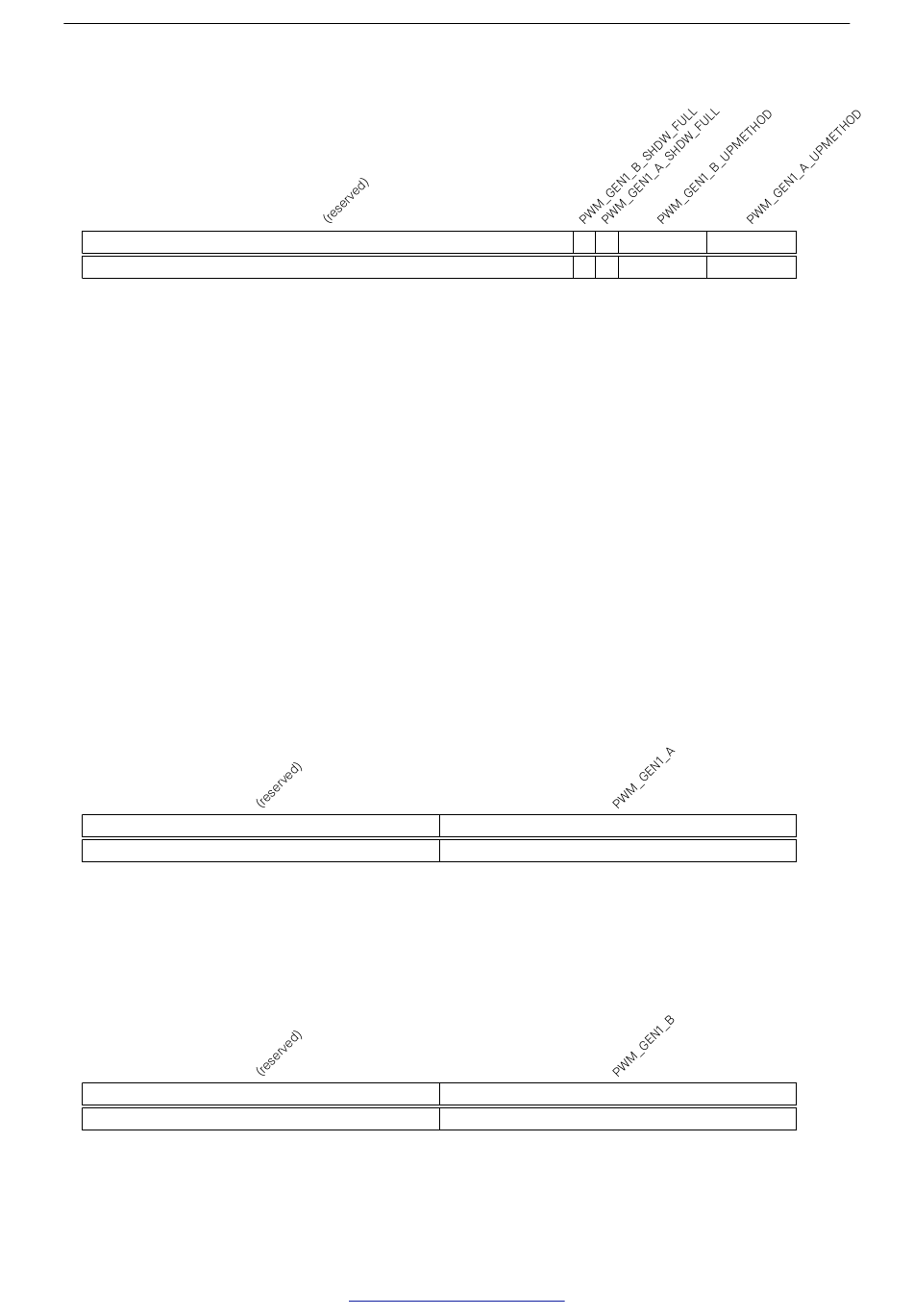

Register 16.30. PWM_GEN1_STMP_CFG_REG (0x0074)
