11 I2C Controller (I2C)

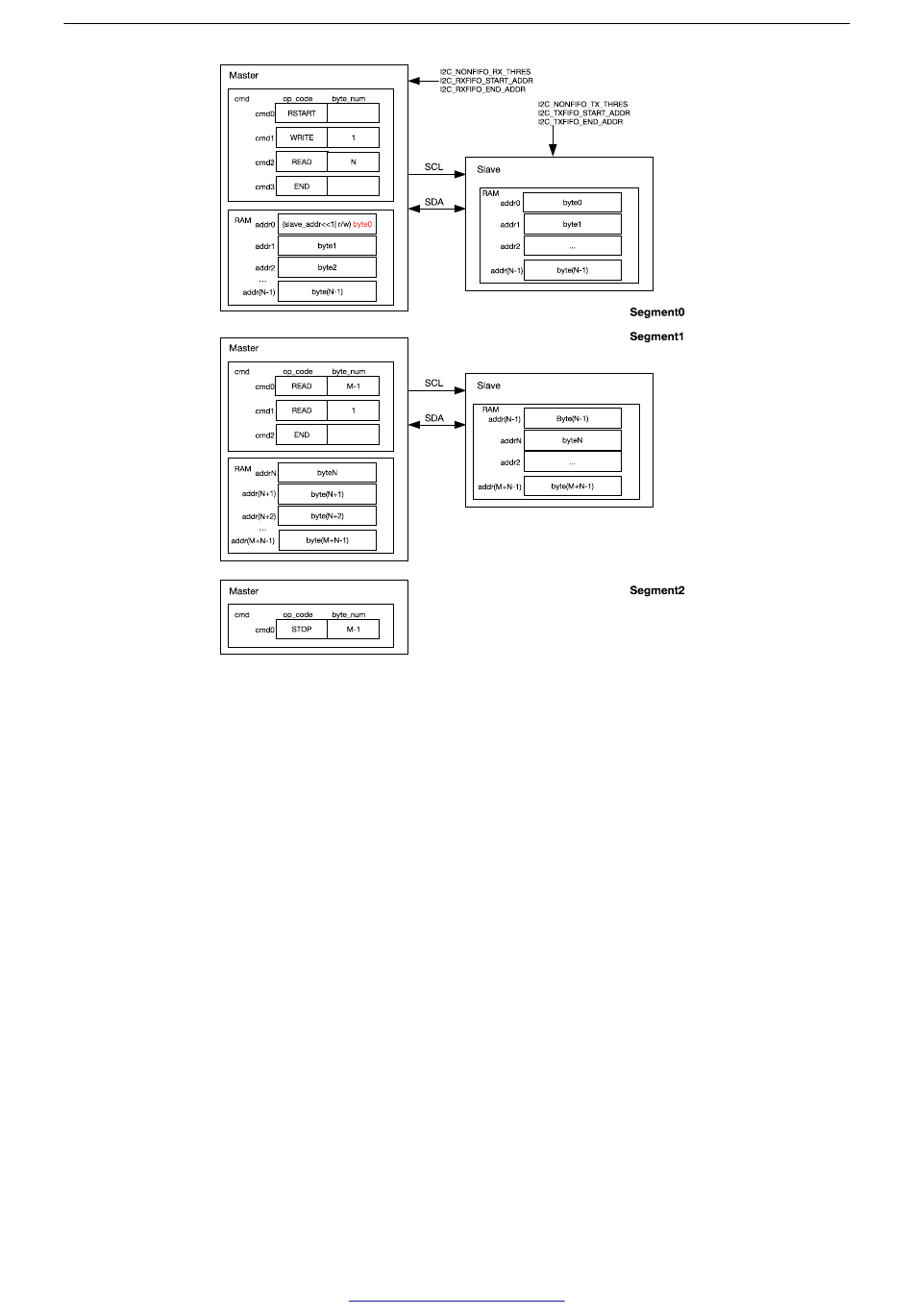

Figure 11-12. Master Reads from Slave with 7-bit Address in Three Segments
11.3.7 Interrupts
• I2C_TX_SEND_EMPTY_INT: Triggered when the Master or Slave has sent nonfifo_tx_thres bytes of data.
• I2C_RX_REC_FULL_INT: Triggered when the Master or Slave has received nonfifo_rx_thres bytes of data.
• I2C_ACK_ERR_INT: Triggered when the Master receives an ACK that is not as expected, or when the Slave
receives an ACK whose value is 1.
• I2C_TRANS_START_INT: Triggered when the Master or Slave sends the START bit.
• I2C_TIME_OUT_INT: Triggered when the SCL stays high or low for more than I2C_TIME_OUT clocks.
• I2C_TRANS_COMPLETE_INT: Triggered when the Master or Slave detects a STOP bit.
• I2C_MASTER_TRAN_COMP_INT: Triggered when the Master sends or receives a byte.
• I2C_ARBITRATION_LOST_INT: Triggered when the Master's SCL is high, while the output value and input
value of the SDA do not match.
• I2C_END_DETECT_INT: Triggered when the Master deals with the END command.
Espressif Systems
299
Submit Documentation Feedback
ESP32 TRM (Version 5.2)
