16 Motor Control PWM (PWM)

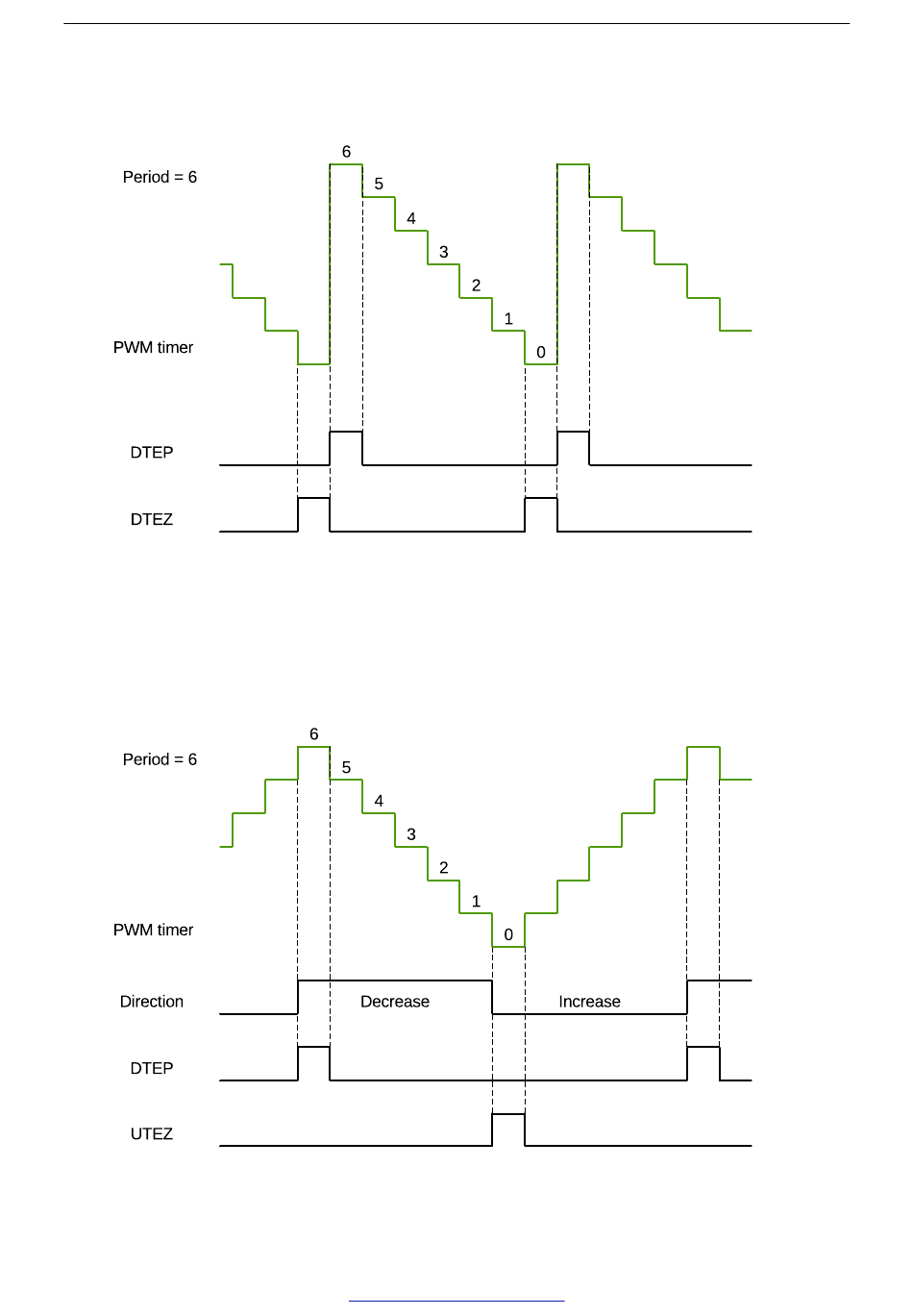

Figure 16-12. DTEP and DTEZ Generation in Count-Down Mode

Figure 16-13. DTEP and UTEZ Generation in Count-Up-Down Mode

Espressif Systems

426

ESP32 TRM (Version 5.2)

Submit Documentation Feedback
