16 Motor Control PWM (PWM)

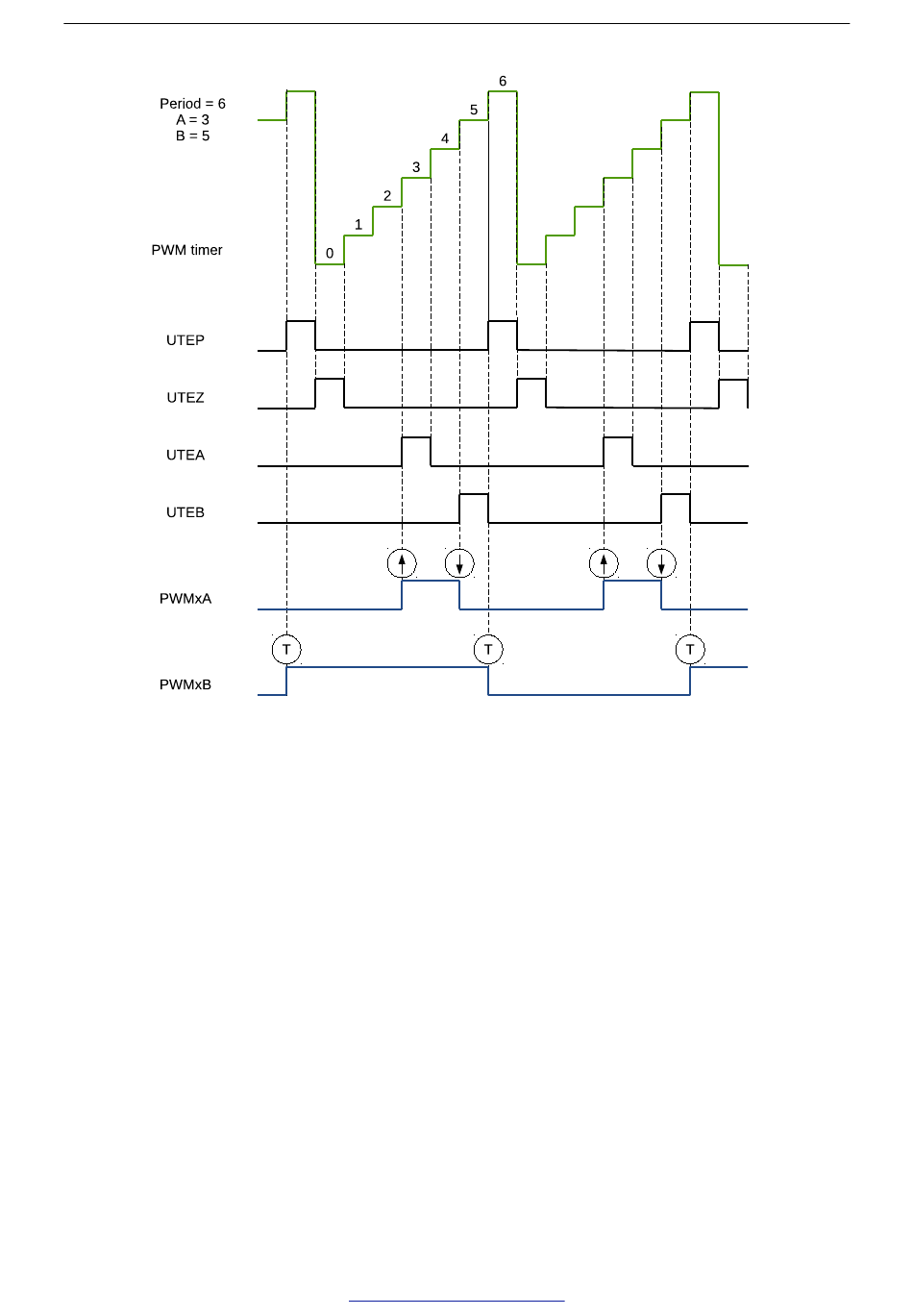

Figure 16-17. Count-Up, Pulse Placement Asymmetric Waveform with Independent Modulation on PWMxA
Pulses may be generated anywhere within the PWM cycle (zero – period).
PWMxA's high time duty is proportional to (B – A).
P eriod = (P W M _T IM ERx_P ERIOD + 1) × T
P T _clk
Espressif Systems
435
ESP32 TRM (Version 5.2)
