S0: I-bus

This bus connects the instruction bus of the Cortex
used by the core to fetch instructions. The targets of this bus are the internal Flash memory,
SRAM1, SRAM2 and external memories through FMC or QUADSPI.
2.1.2

S1: D-bus

This bus connects the data bus of the Cortex
by the core for literal load and debug access. The targets of this bus are the internal Flash
memory, SRAM1, SRAM2 and external memories through FMC or QUADSPI.

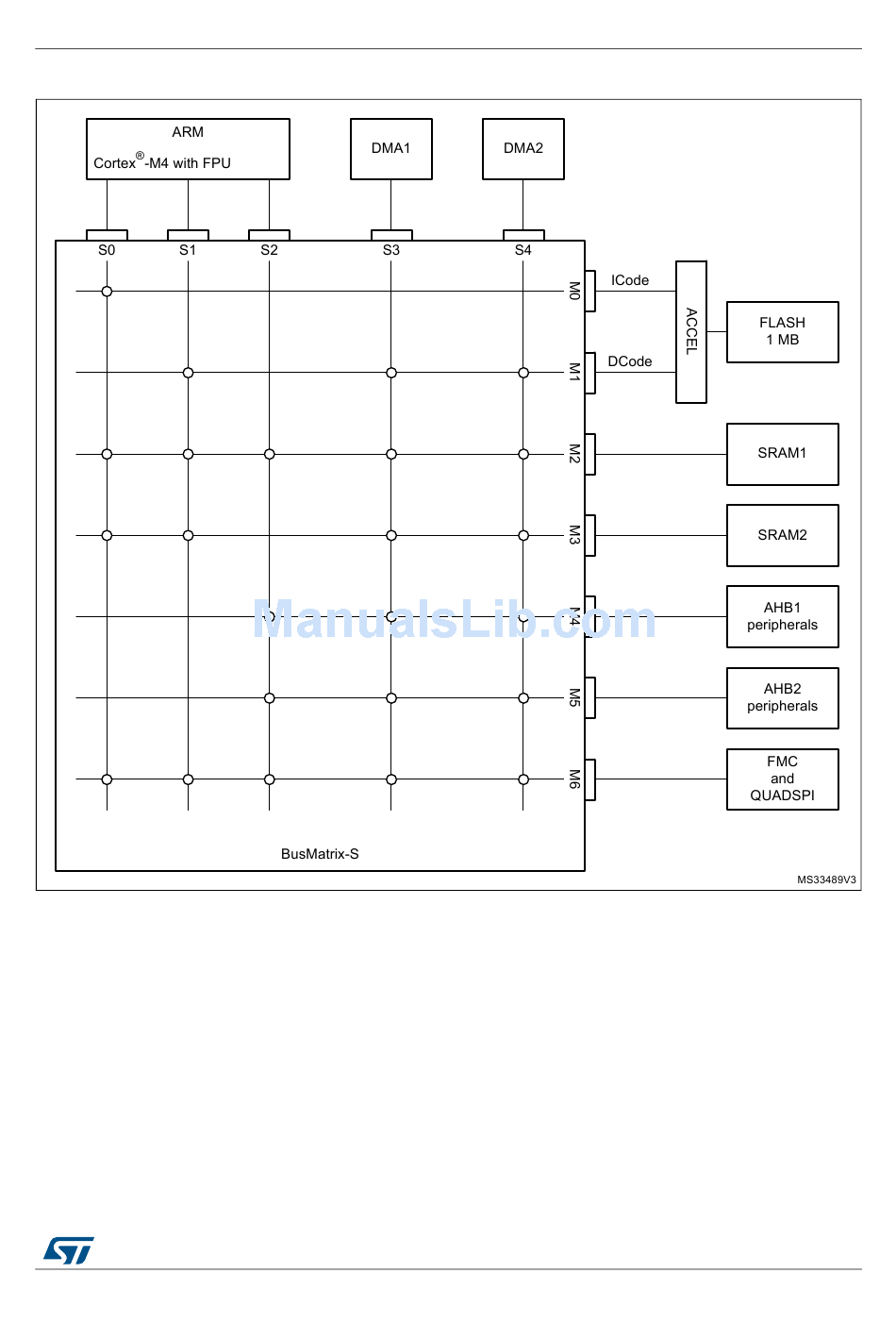

Figure 1. System architecture
