RM0351
The following figures show some examples of the counter behavior for different clock
frequencies when TIMx_ARR=0x36.

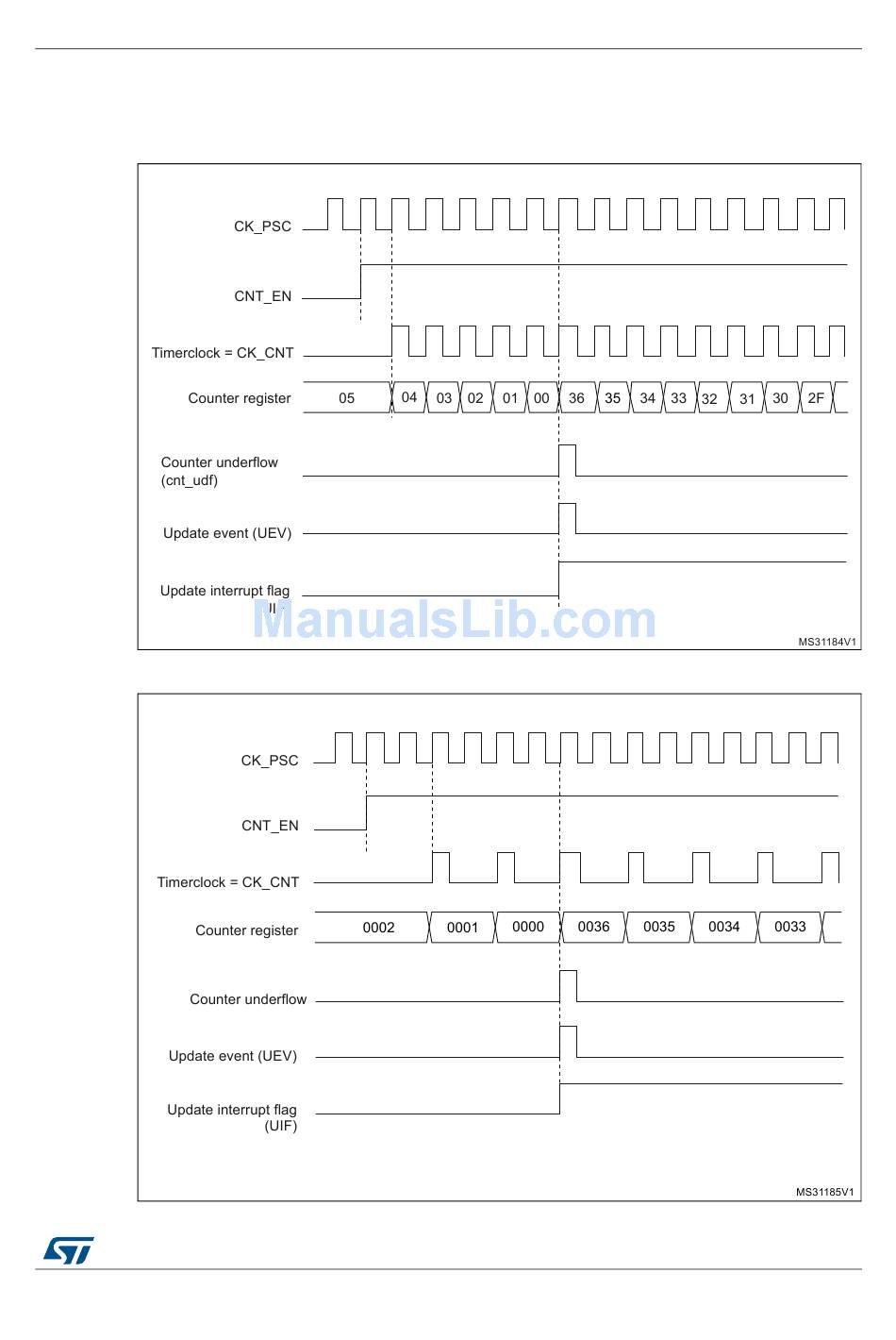

Figure 258. Counter timing diagram, internal clock divided by 1

Figure 259. Counter timing diagram, internal clock divided by 2

DocID024597 Rev 3
General-purpose timers (TIM2/TIM3/TIM4/TIM5)
865/1693
929
