Behavior when changing the trigger or sequence context
The Figure 72
sequence or the triggers.

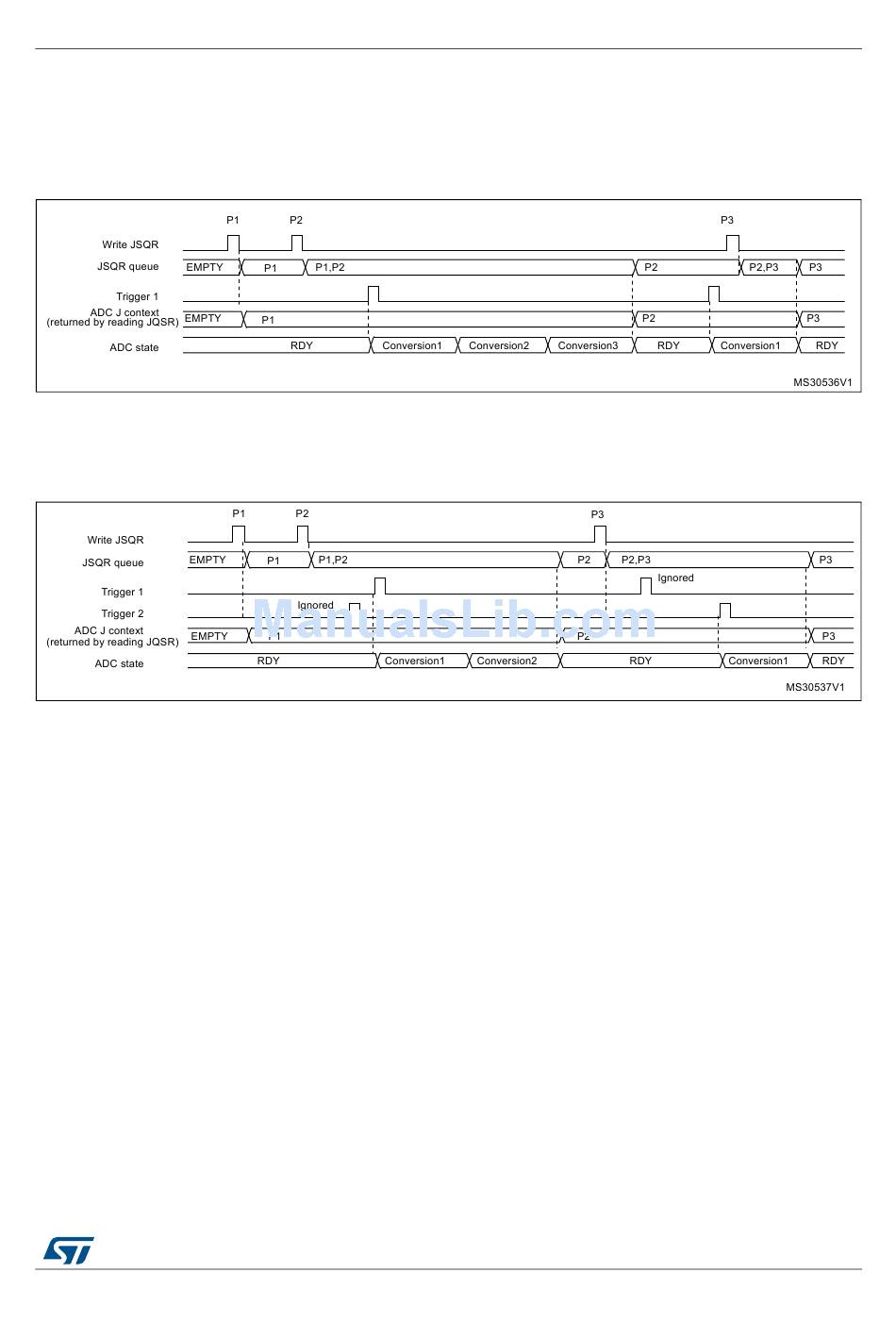

Figure 72. Example of JSQR queue of context (sequence change)

1. Parameters:
P1: sequence of 3 conversions, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 4 conversions, hardware trigger 1

Figure 73. Example of JSQR queue of context (trigger change)

1. Parameters:
P1: sequence of 2 conversions, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 2
P3: sequence of 4 conversions, hardware trigger 1
and Figure 73 show the behavior of the context Queue when changing the
