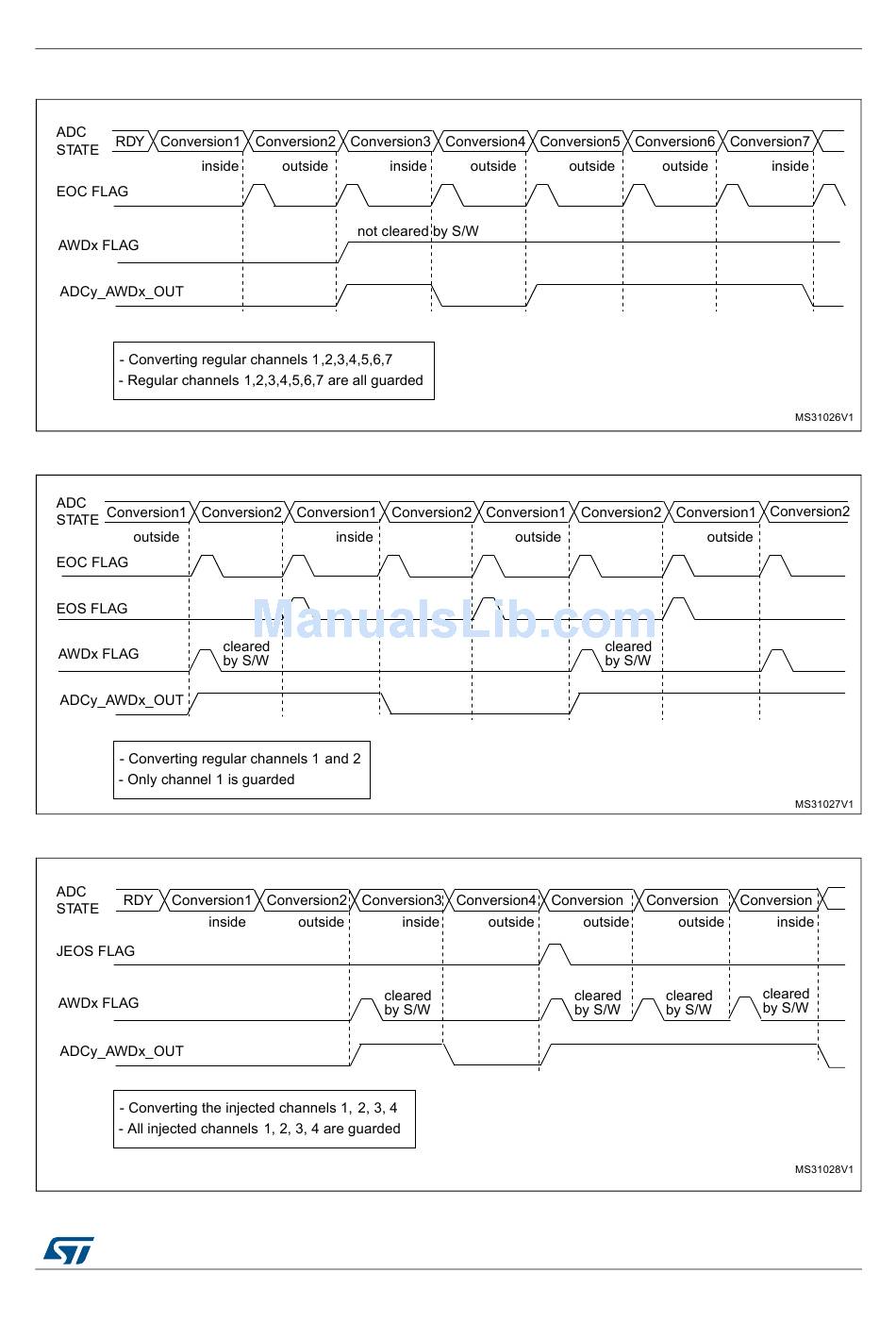

Figure 100. ADCy_AWDx_OUT signal generation (AWDx flag not cleared by SW)

Figure 101. ADCy_AWDx_OUT signal generation (on a single regular channel)

Figure 102. ADCy_AWDx_OUT signal generation (on all injected channels)
