RM0351 General-purpose timers (TIM15/16/17)

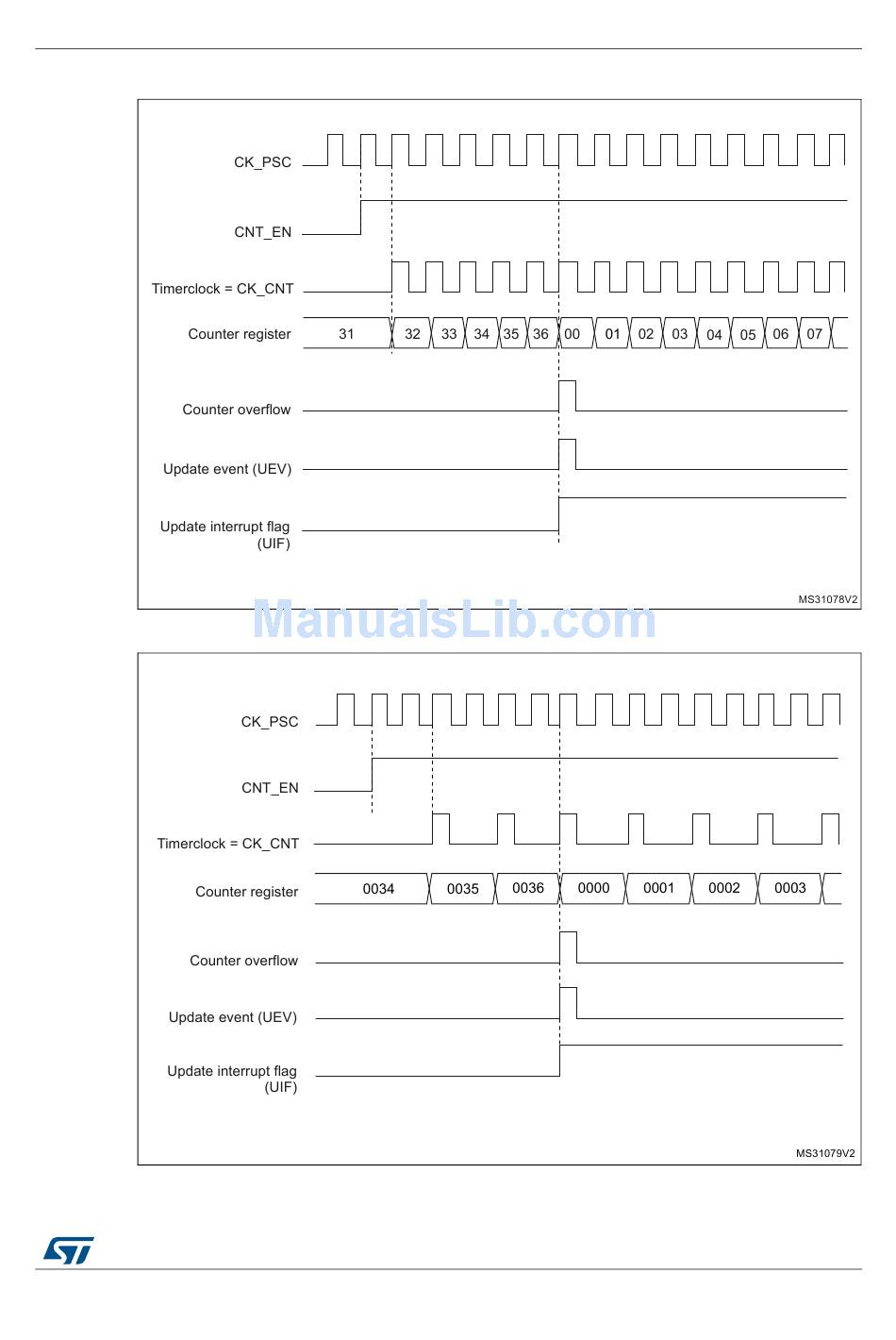

Figure 302. Counter timing diagram, internal clock divided by 1

Figure 303. Counter timing diagram, internal clock divided by 2
