Flushing the queue of context
The figures below show the behavior of the context Queue in various situations when the
queue is flushed.

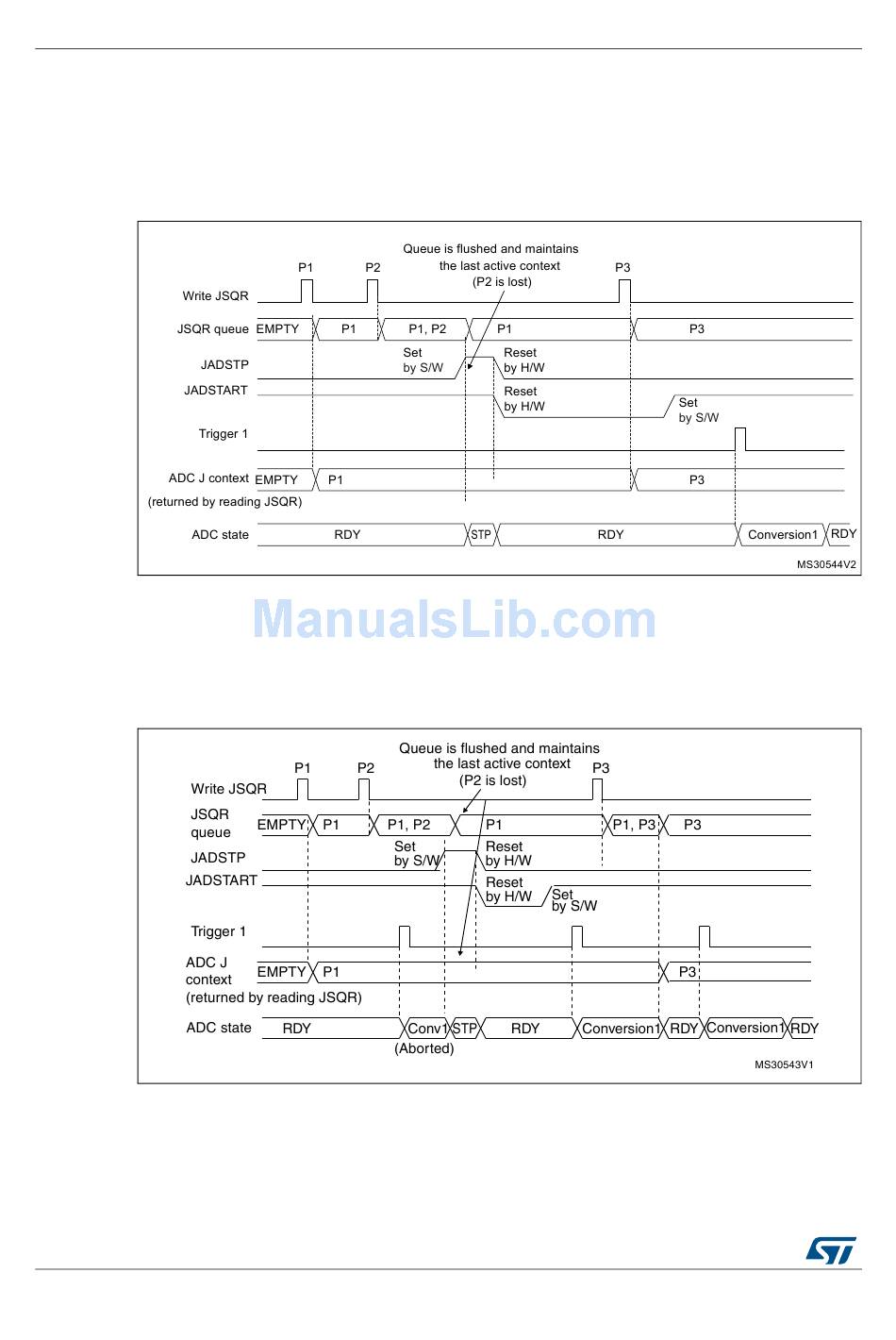

Figure 78. Flushing JSQR queue of context by setting JADSTP=1 (JQM=0).
1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1
Figure 79. Flushing JSQR queue of context by setting JADSTP=1 (JQM=0).
1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1
458/1693
Case when JADSTP occurs during an ongoing conversion.
Case when JADSTP occurs during an ongoing conversion and a new

trigger occurs.
