General-purpose timers (TIM2/TIM3/TIM4/TIM5)

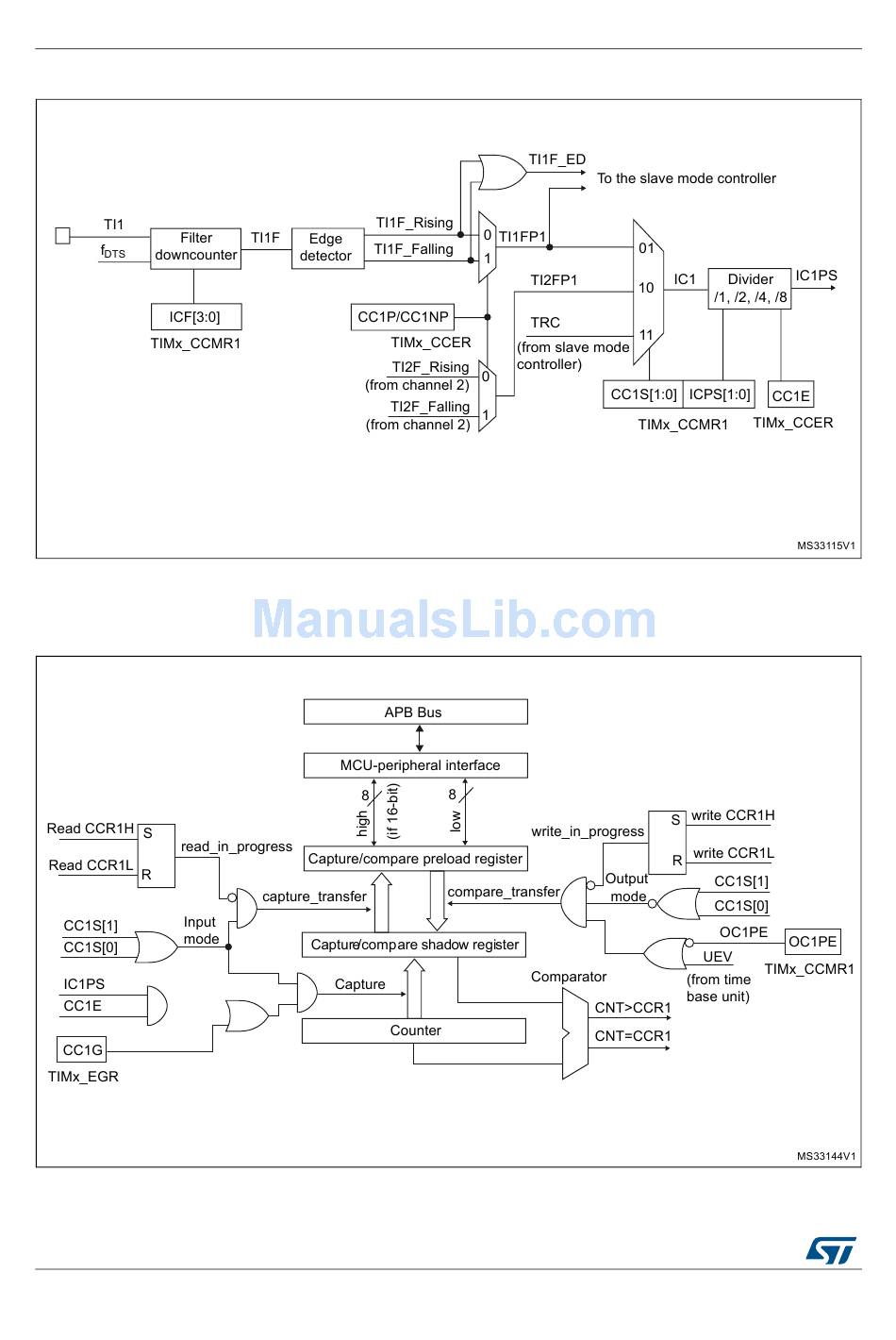

Figure 274. Capture/compare channel (example: channel 1 input stage)

The output stage generates an intermediate waveform which is then used for reference:
OCxRef (active high). The polarity acts at the end of the chain.
876/1693

Figure 275. Capture/compare channel 1 main circuit

DocID024597 Rev 3
RM0351
