RM0351
The remaining GPIOs are dedicated to the electrodes and are commonly called channels.
For some specific needs (such as proximity detection), it is possible to simultaneously
enable more than one channel per analog I/O group.
Note: Gx_IOy where x is the analog I/O group number and y the GPIO number within the selected
group.
The surface charge transfer acquisition principle consists of charging an electrode
capacitance (C
capacitor (C
threshold (V
is a direct representation of the size of the electrode capacitance.
The Table 134
channel 1. States 3 to 7 are repeated until the voltage across C
threshold. The same sequence applies to the acquisition of the other channels. The
electrode serial resistor R

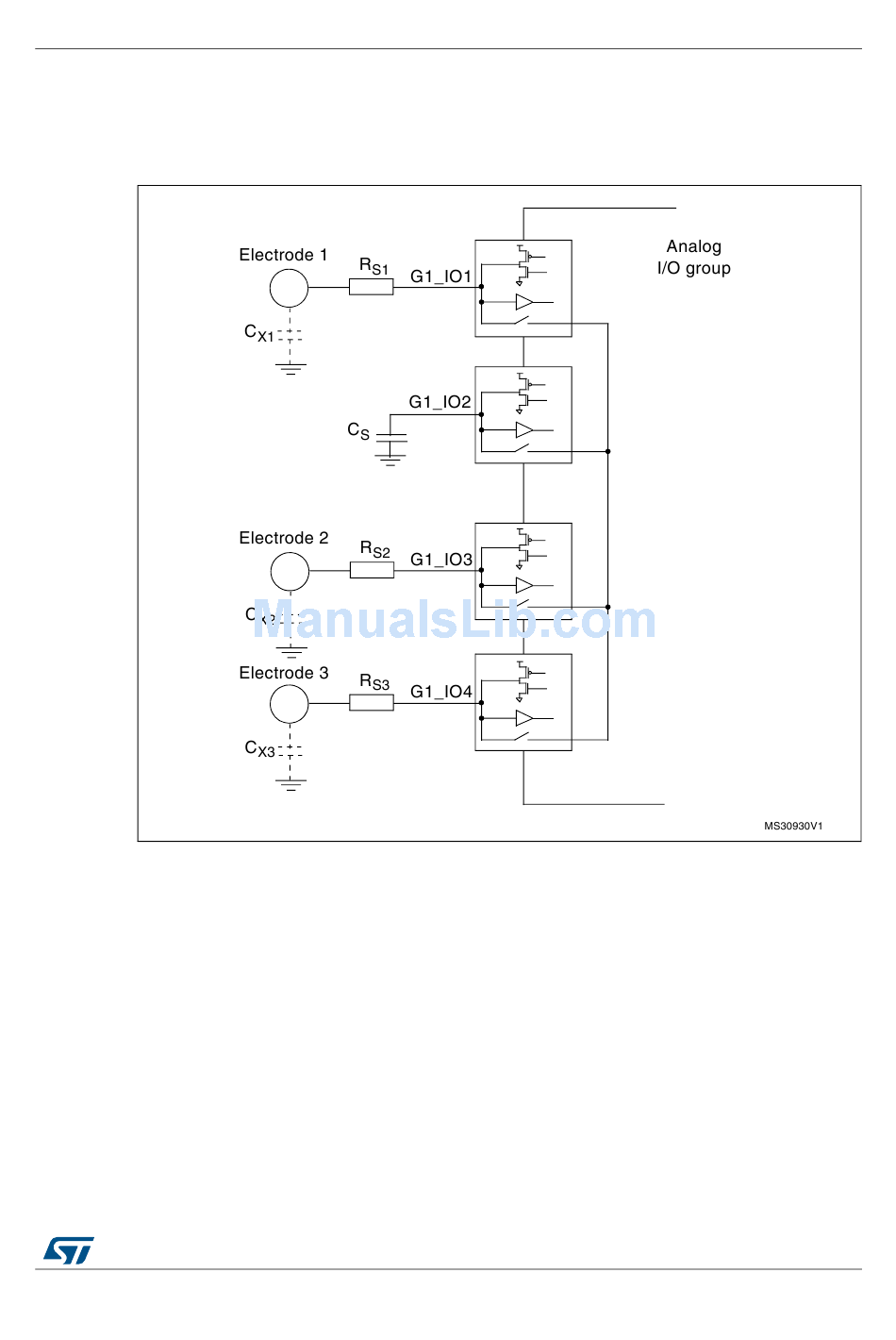

Figure 166. Surface charge transfer analog I/O group structure

) and transferring a part of the accumulated charge into a sampling
X
). This sequence is repeated until the voltage across C
S
in our case). The number of charge transfers required to reach the threshold
IH
details the charge transfer acquisition sequence of the capacitive sensing
improves the ESD immunity of the solution.
S
DocID024597 Rev 3
Touch sensing controller (TSC)
reaches a given
S
reaches the given
S
693/1693
