Advanced encryption standard hardware accelerator (AES)
to switch the AES to mode 3 (decryption mode), there is no need to write the AES_KEYRx
registers if their content corresponds to the derivation key (previously computed by mode 2).
In mode 4 (key derivation + decryption), the AES_KEYRx registers contain only the
encryption key. The derivation key is calculated internally without any write to these
registers.
25.5

AES chaining algorithms

Five algorithms are supported by the AES hardware and can be selected through the
CHMOD[2:0] bits in the AES_CR register when the AES is disabled (bit EN = 0):
•
Electronic codebook (ECB)
•
Cipher block chaining (CBC)
•
Counter mode (CTR)
• Galois counter mode (GCM) and Galois message authentication code mode (GMAC)
•
Cipher message authentication code mode (CMAC)
25.5.1 Electronic codebook (ECB)
This is the default mode. This mode does not use the AES_IVR register. There are no
chaining operations. The message is divided into blocks and each block is encrypted
separately
Figure 172
encryption and decryption respectively.
718/1693
.
and Figure 173 describe the principle of the electronic codebook algorithm for

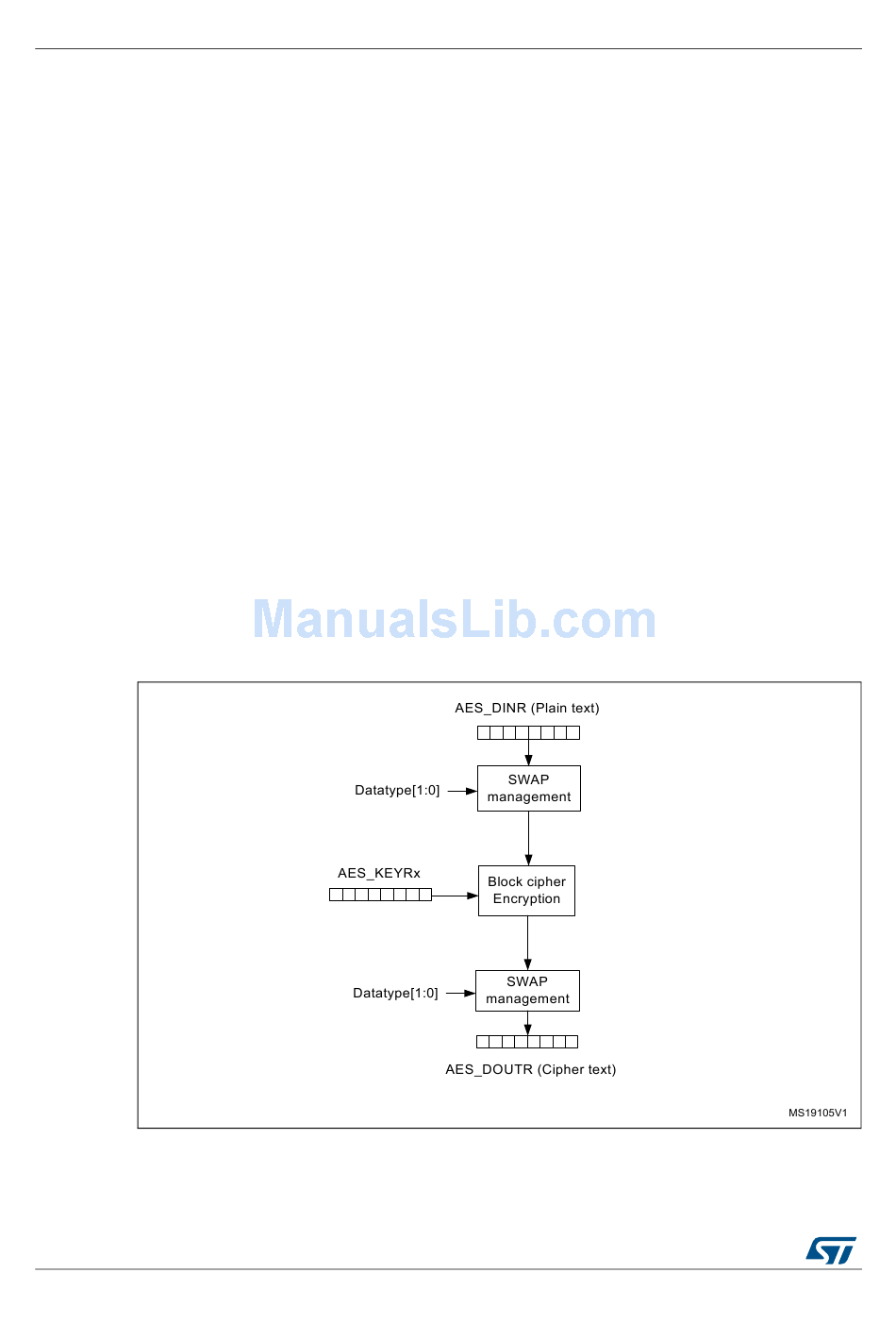

Figure 172. ECB encryption mode
