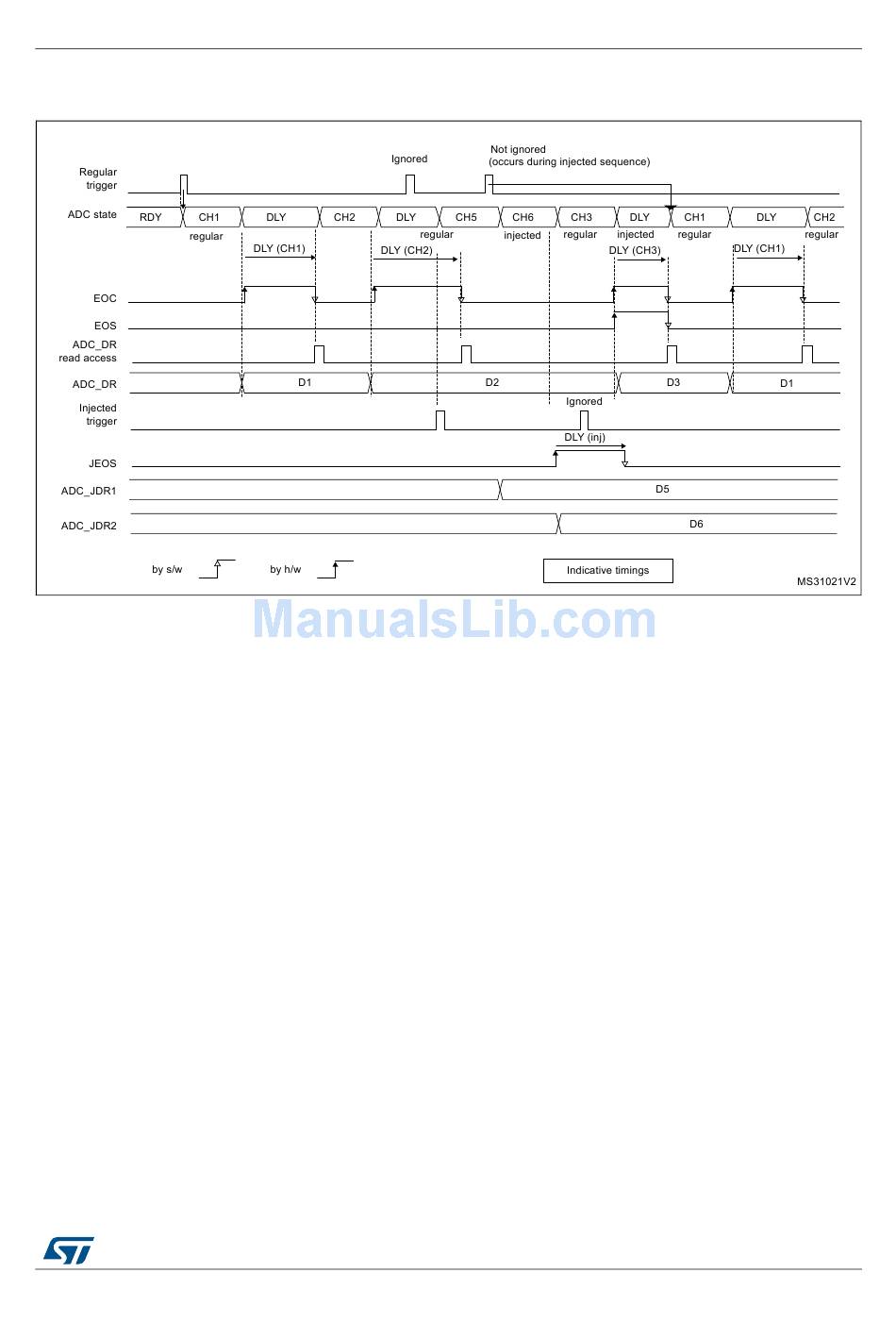

Figure 94. AUTODLY=1, regular HW conversions interrupted by injected conversions

(DISCEN=0; JDISCEN=0)

1. AUTDLY=1
2. Regular configuration: EXTEN=0x1 (HW trigger), CONT=0, DISCEN=0, CHANNELS = 1, 2, 3
3. Injected configuration: JEXTEN=0x1 (HW Trigger), JDISCEN=0, CHANNELS = 5,6
