General-purpose timers (TIM15/16/17)
only by software (except UG which remains cleared automatically). As soon as the CEN bit
is written to 1, the prescaler is clocked by the internal clock CK_INT.
Figure 309
without prescaler.

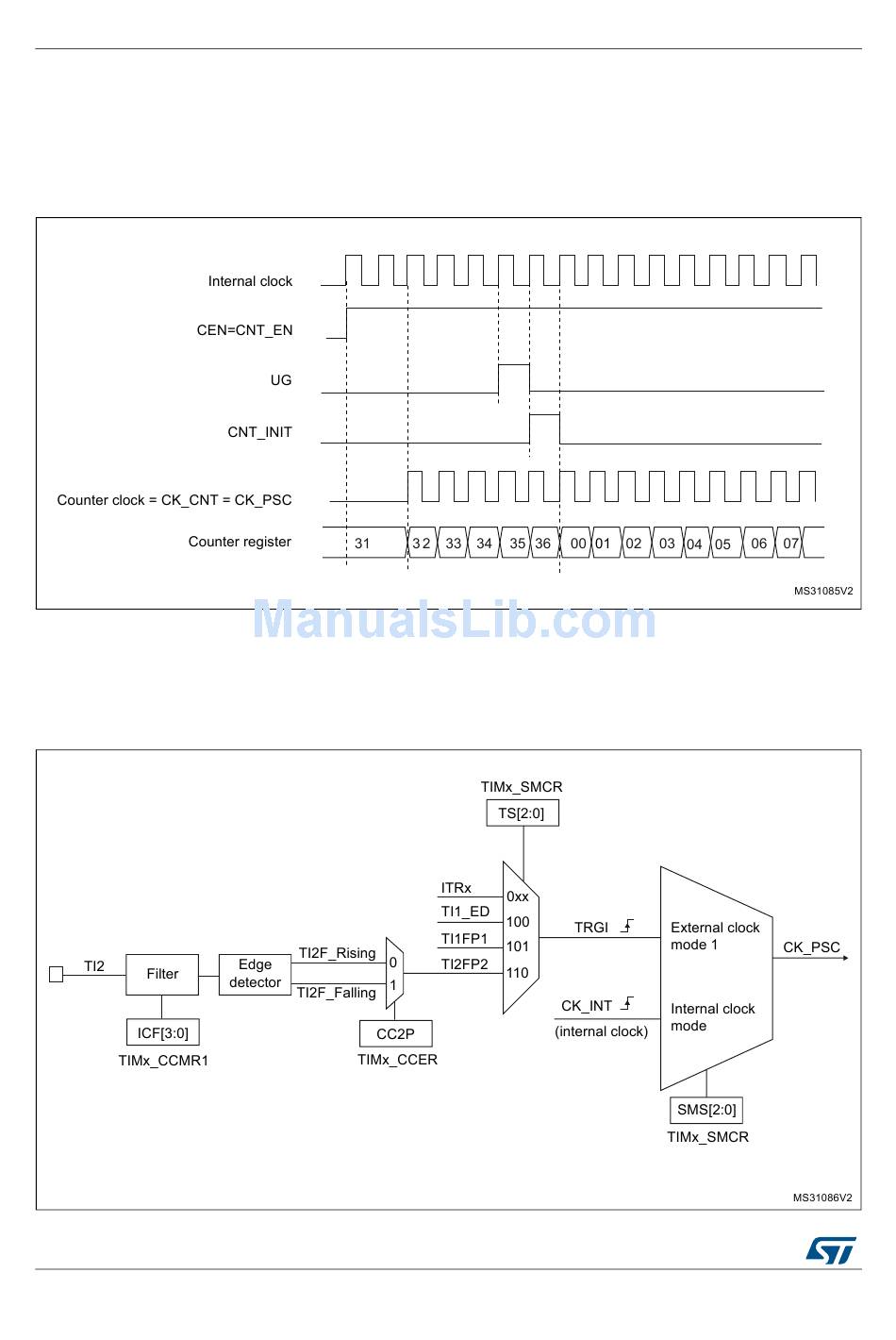

Figure 309. Control circuit in normal mode, internal clock divided by 1

External clock source mode 1
This mode is selected when SMS=111 in the TIMx_SMCR register. The counter can count at
each rising or falling edge on a selected input.
942/1693
shows the behavior of the control circuit and the upcounter in normal mode,

Figure 310. TI2 external clock connection example

DocID024597 Rev 3
RM0351
