Figure 59. Adc Clock Scheme - ST STM32L4x6 Reference Manual

Analog-to-digital converters (ADC)
Clock ratio constraint between ADC clock and AHB clock
There are generally no constraints to be respected for the ratio between the ADC clock and
the AHB clock except if some injected channels are programmed. In this case, it is
mandatory to respect the following ratio:
•
F
HCLK
• F
HCLK
with lower resolutions)
•
F
HCLK
432/1693

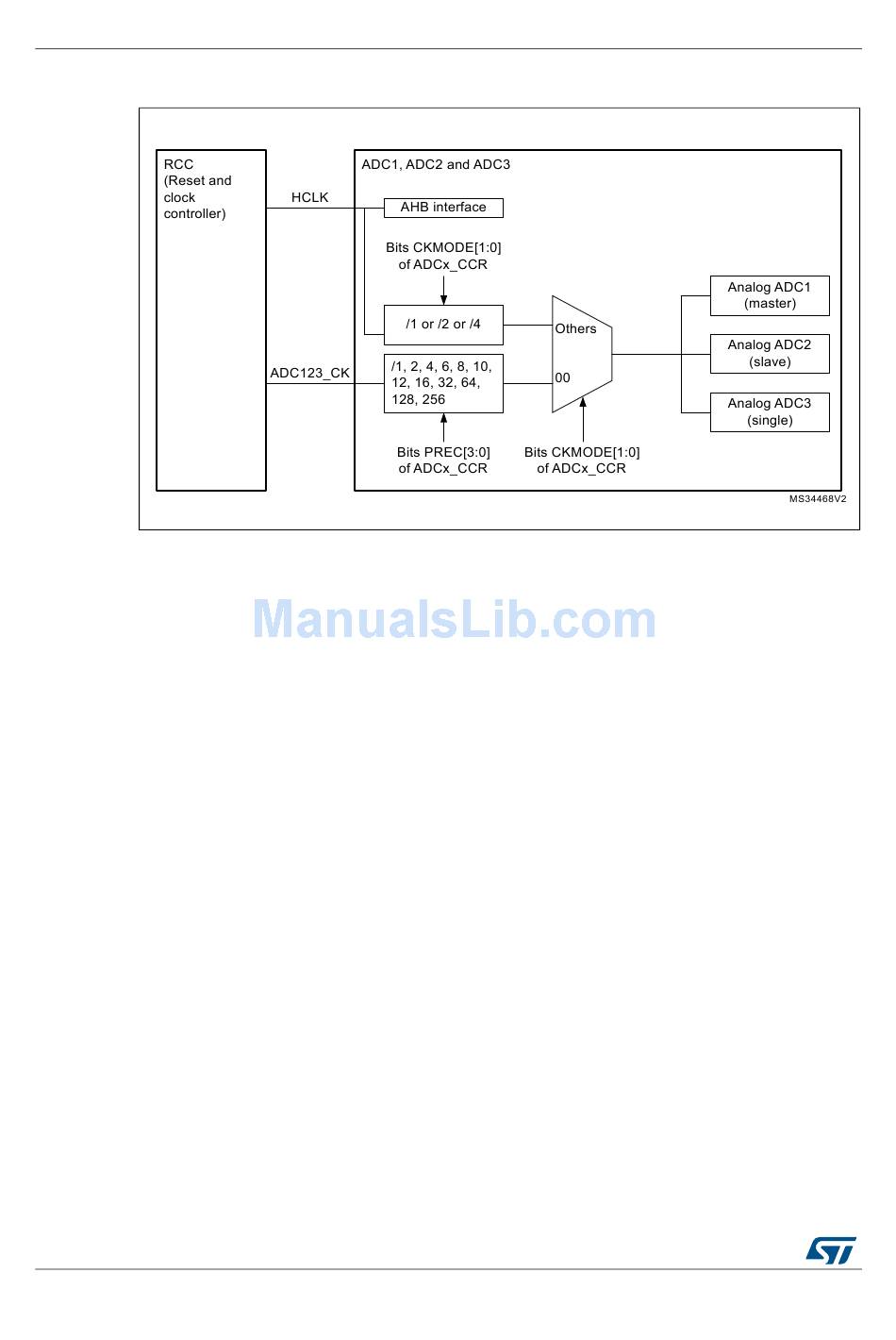

Figure 59. ADC clock scheme

>= F / 4 if the resolution of all channels are 12-bit or 10-bit
ADC
>= F / 3 if there are some channels with resolutions equal to 8-bit (and none
ADC
>= F / 2 if there are some channels with resolutions equal to 6-bit
ADC
