Low-power universal asynchronous receiver transmitter (LPUART)
37.3 LPUART functional description
37.3.1 LPUART block diagram
lpuart_wkup
lpuart_it
lpuart_tx_dma
lpuart_rx_dma
lpuart_pclk
lpuart_ker_ck
The simplified block diagram given in
domains:
•
The lpuart_pclk clock domain
The lpuart_pclk clock signal feeds the peripheral bus interface. It must be active when
accesses to the LPUART registers are required.
•
The lpuart_ker_ck kernel clock domain
The lpuart_ker_ck is the LPUART clock source. It is independent of the lpuart_pclk
and delivered by the RCC. So, the LPUART registers can be written/read even when
the lpuart_ker_ck is stopped.
When the dual clock domain feature is disabled, the lpuart_ker_ck is the same as the
lpuart_pclk clock.
There is no constraint between lpuart_pclk and lpuart_ker_ck: lpuart_ker_ck can be
faster or slower than lpuart_pclk, with no more limitation than the ability for the software to
manage the communication fast enough.
1642/2083

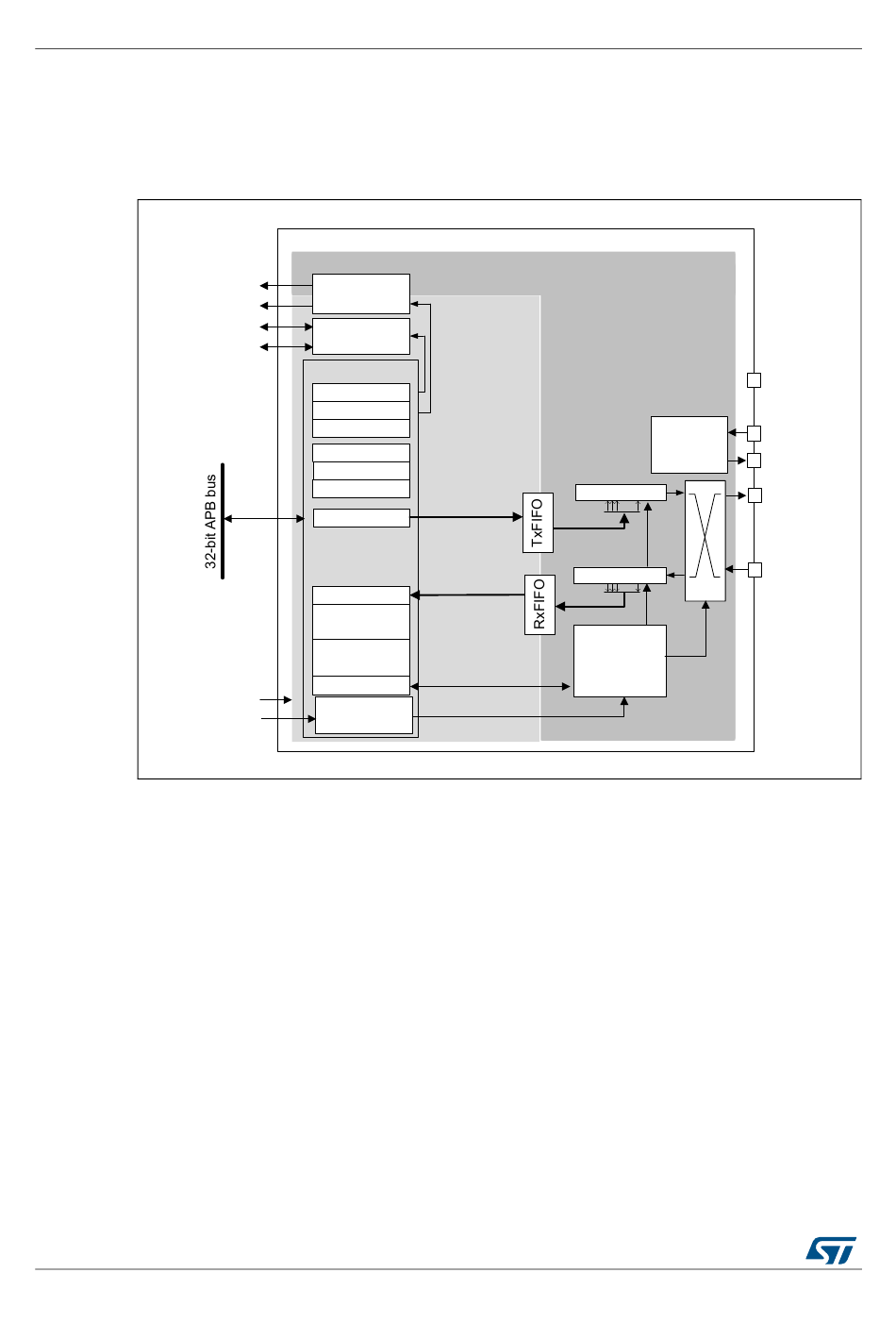

Figure 556. LPUART block diagram
