M162 ENGINE MECHANICAL 1B1-81
Installation Procedure
1. Connect the thrust pin (6) and the snap ring (5) to
the chain tensioner housing (7).
Notice: When connecting the thrust pin, push in
the thrust pin far enough so that it doesn't protrude
at the chain tensioner housing.
2. Install the chain tensioner housing (7), thrust pin
(6), snap ring (5), and the seal (8).
Installation Notice
Tightening Torque
3. Insert the compression spring (4) with the filler
pin (3) into chain tensioner housing.

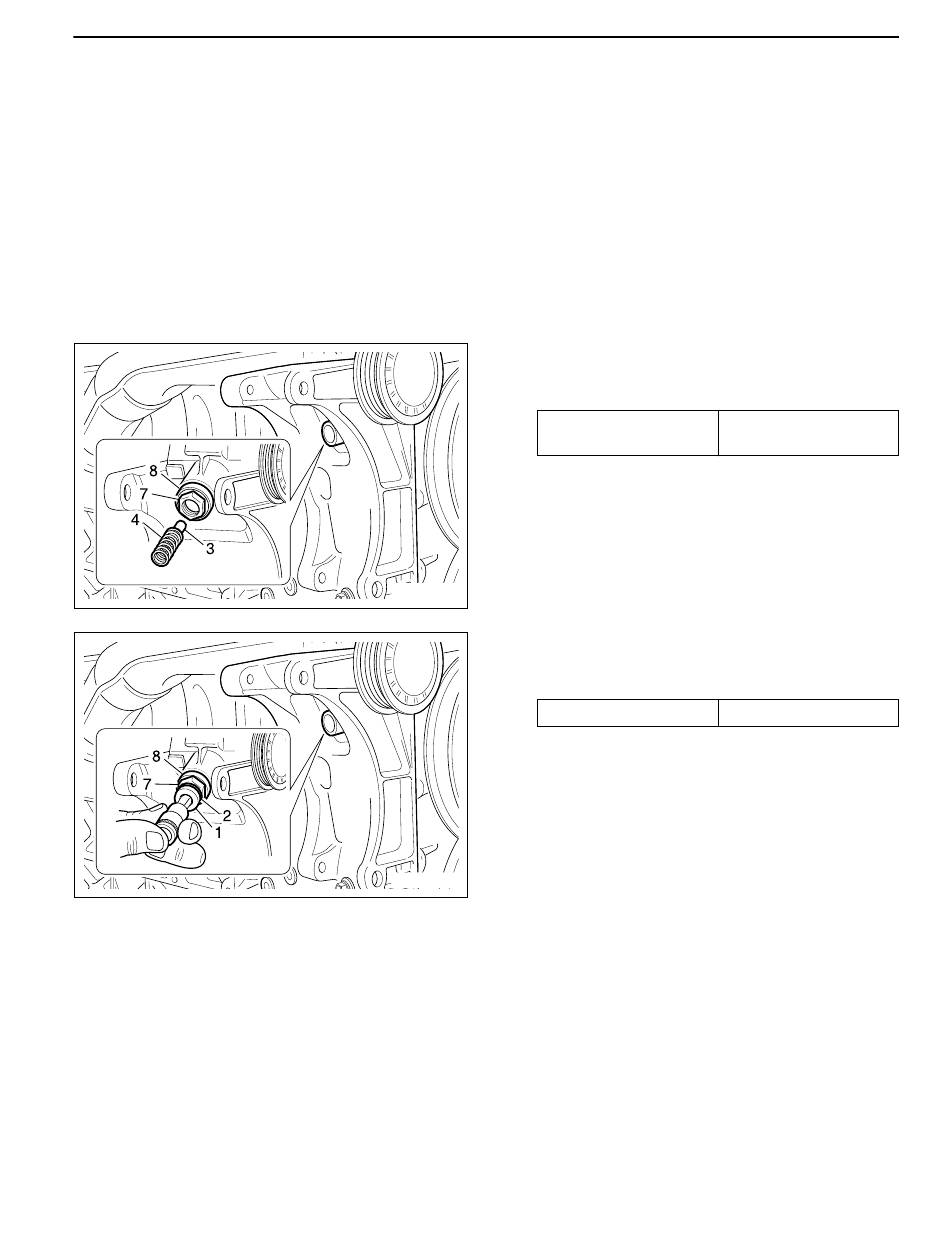

YAD1B1S0
4. Lightly apply the grease to the seal (2) and install
the screw plug (1).
Installation Notice
Tightening Torque
5. Check for leaks by operating the engine.
YAD1B1T0
72 - 88 N•m
(53 - 65 lb-ft)
40 N•m (30 lb-ft)
