Functional Diagrams

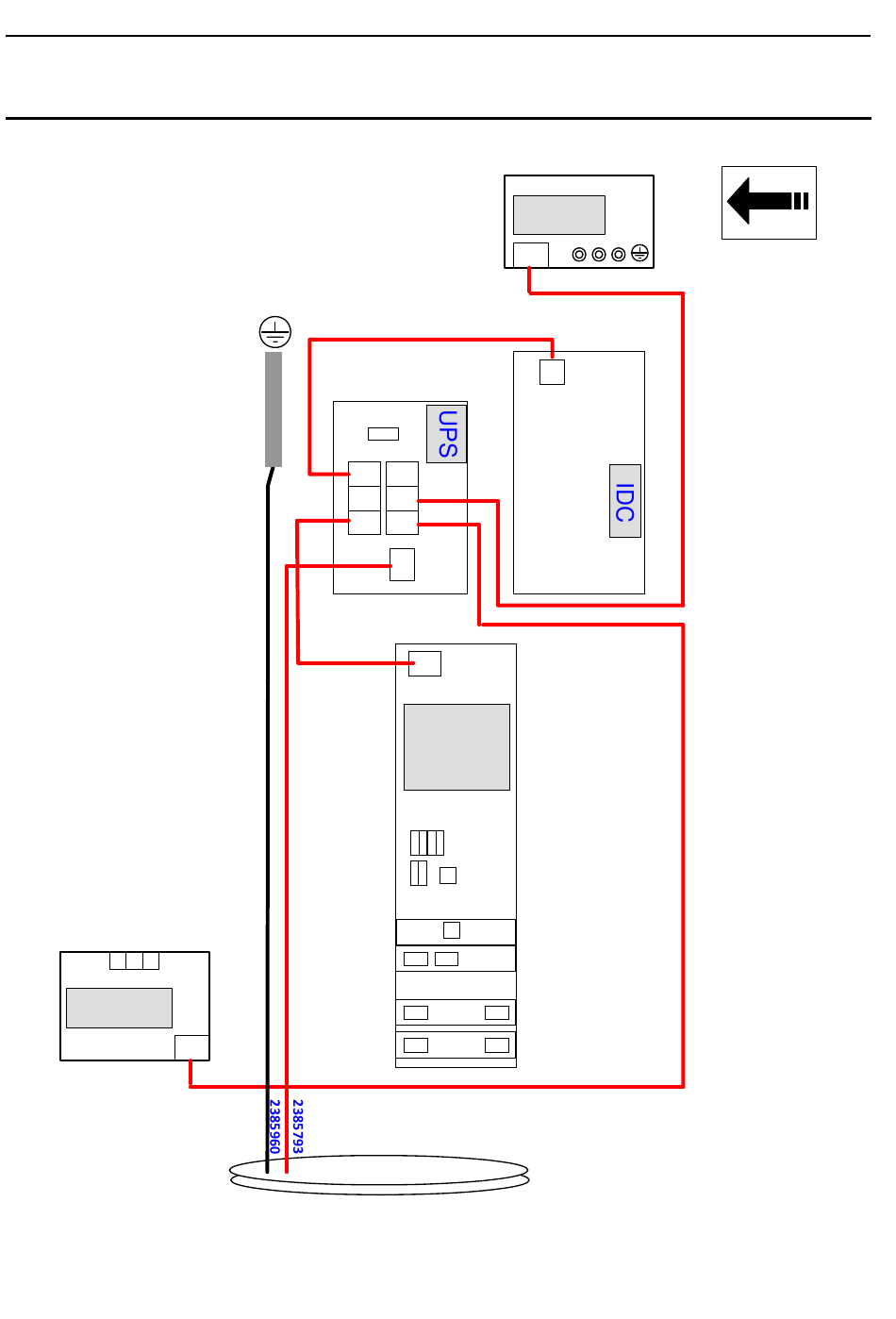

12-8. Control Station Power Distribution Diagram (CS V4)
ETHERNET
SWITCH
Chapter 3
AC
Service Information and Procedures Class A 2385072-16-8EN
AC
OUT
AC
AC
AC
AC
AC
AC
AC
IN
AC
Z400
USB
USB
net1
net0
PCIe2
1
2
PCI1
PCI0
Page no. 89
Monitor
AC
Senographe DS
FunctionsDS.fm
