SYSTEM COMPONENT DESCRIPTION

Control Station
Radiation screen
Position for mouse
or optional track-
ball (not shown)
AWS Cabinet

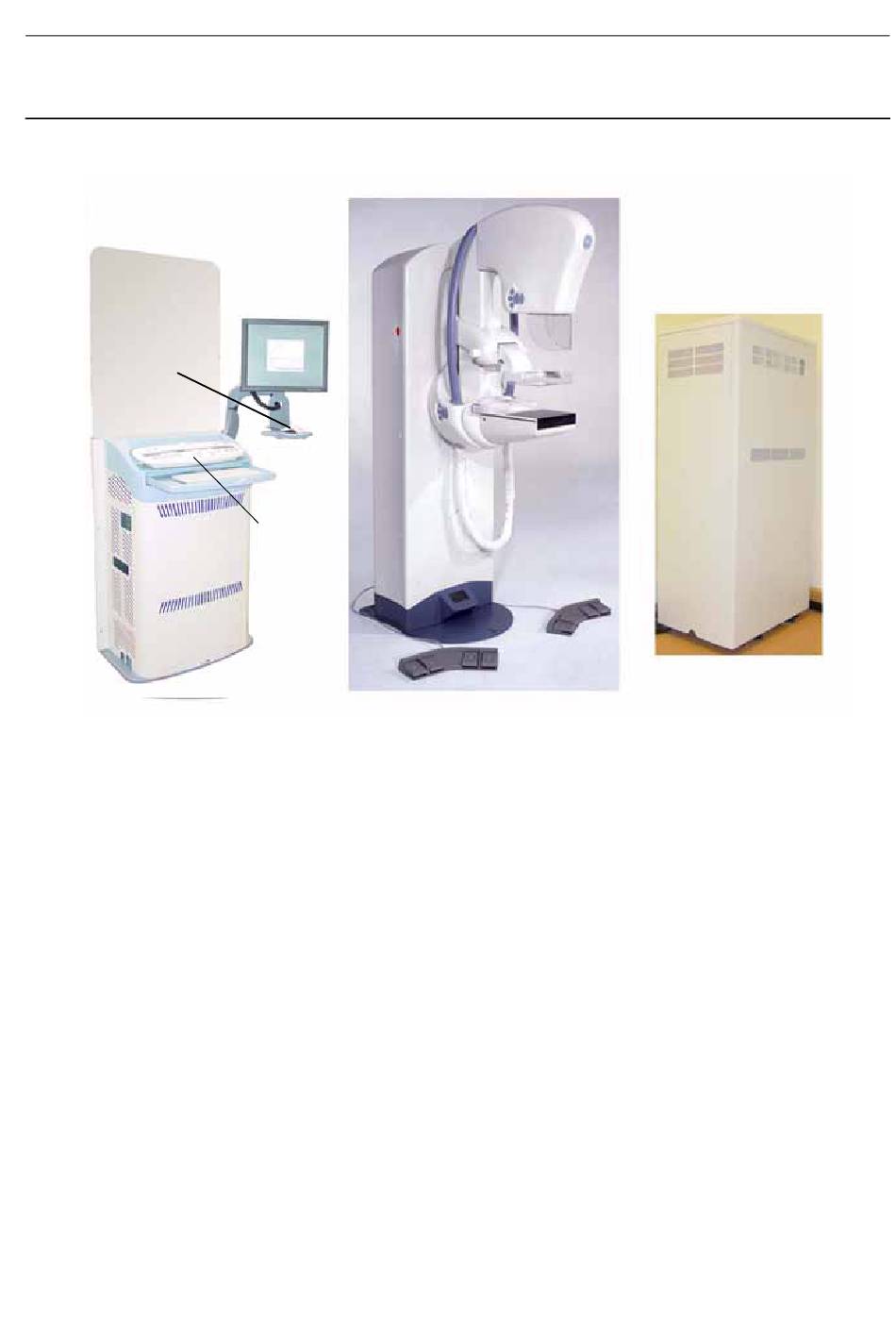

2-1. Overview
The following pages describe the main system components:
1. The Gantry is equipped with a Digital Detector for efficient creation of X-ray images. The X-ray Con-
sole controls Gantry operations, X-ray exposures, and power to all parts of the Senographe system.
The X-ray Console is normally mounted on the Control Station.
2. The Control Station includes the Acquisition Workstation (AWS) Cabinet, an LCD monitor, a key-
board and mouse (or optional trackball), and a radiation screen. The AWS Cabinet houses the work-
station electronics and a UPS (Uninterruptable Power Supply).
3. Accessories (standard and optional).
Mandatory marking labels such as CE marking, UL Listing labels, and FDA labels are located on the bot-
tom left-hand side of the Generator Cabinet.
Introduction.fm
Service Information and Procedures Class A 2385072-16-8EN
LCD monitor
X-ray Console
Gantry
Digital
Detector
Page no. 45
Senographe DS
Sub-Systems and Components
Generator Cabinet
Chapter 3
