GE Healthcare
Revision 1

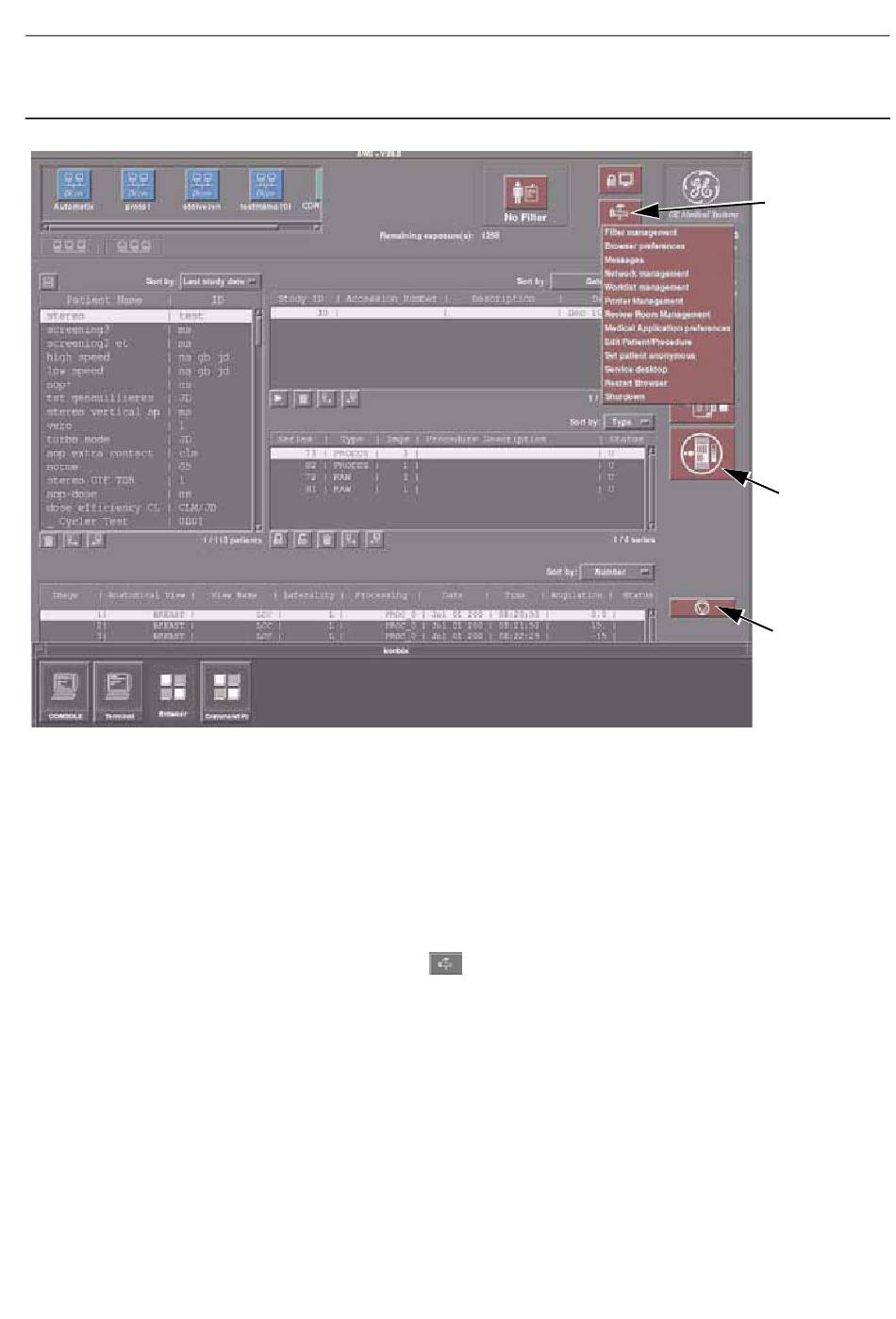

vice-based functions that service personnel use, which are available from the Browser (shown below).
Many service-based functions are accessible by clicking the Tools menu button, and then by clicking
the appropriate command from the drop-down menu that appears.
Clicking on the QAP button launches the Quality Assurance Procedures screen, from which you can
undertake various Quality Assurance Procedures.
Clicking on the Power off button powers off the Senographe System.
3-3
Restarting the Browser
On some occasions (e.g. during trouble shooting), you may need to restart the Browser. Use one of the
following two methods if you need to restart the Browser:
•
In the Browser, click the Tools menu button
menu.
•
Click the title bar of the Browser window and move the Browser to expose the background. Then
click the right mouse button on the background of the Browser screen, and select Restart Browser
from the Root menu which appears.
4.
HOW TO USE THE COMMAND LINE
The command line is required for many service-based procedures. The command line is a text-based
case-sensitive tool, which allows you to execute UNIX-based shell scripts, UNIX commands, and launch
X-Windows based UNIX applications.
Some shell scripts and commands contain upper and lower case characters. Since the command line is
S2100D How To.fm
Service Information and Procedures Class A 2385072-16-8EN
and then click Restart Browser in the drop-down
Page no. 119
Senographe DS
Senographe Operations - How to...
Tools menu button
QAP button
Power off button
Chapter 3
- Quick Links:
- Err Sub A001 - Generator Error...
Hide quick links:
Advertisement
Table of Contents
Troubleshooting
Need help?
Do you have a question about the Senographe DS and is the answer not in the manual?
Questions and answers
G.E.Essential l have recently bought What is the full weight.of the mamo Full weight of the console and other İtem's also measurements of each item with the main machine please All this Shipping Company required
The GE Senographe DS mammography machine is shipped in three crates with the following dimensions and weights:
- Crate 1 (Gantry, Generator Cabinet, and ramp):
- Dimensions: 2066 mm (81.34 in) depth × 848 mm (33.39 in) width × 2292 mm (90.24 in) height
- Mass: 641 kg (1410.2 lbs)
- Crate 2 (Control Station):
- Dimensions: 1110 mm (43.70 in) depth × 770 mm (30.31 in) width × 1850 mm (72.83 in) height
- Mass: 210.5 kg (464.07 lbs) for truck transport (without side covers and lid)
- Mass: 223.5 kg (492.73 lbs) for plane/boat transport (with side covers and lid)
- Crate 3 (Detector):
- Dimensions: 872 mm (34.33 in) depth × 2270 mm (89.37 in) width × 260 mm (10.24 in) height
- Mass: 104.4 kg (229.68 lbs)
### Total Mass:
- For truck transport: 641 + 210.5 + 104.4 = 955.9 kg (2104.95 lbs)
- For plane/boat transport: 641 + 223.5 + 104.4 = 968.9 kg (2133.61 lbs)
These values include the gantry, generator cabinet, control station, detector, and all related components.
