5-50 BRAKES

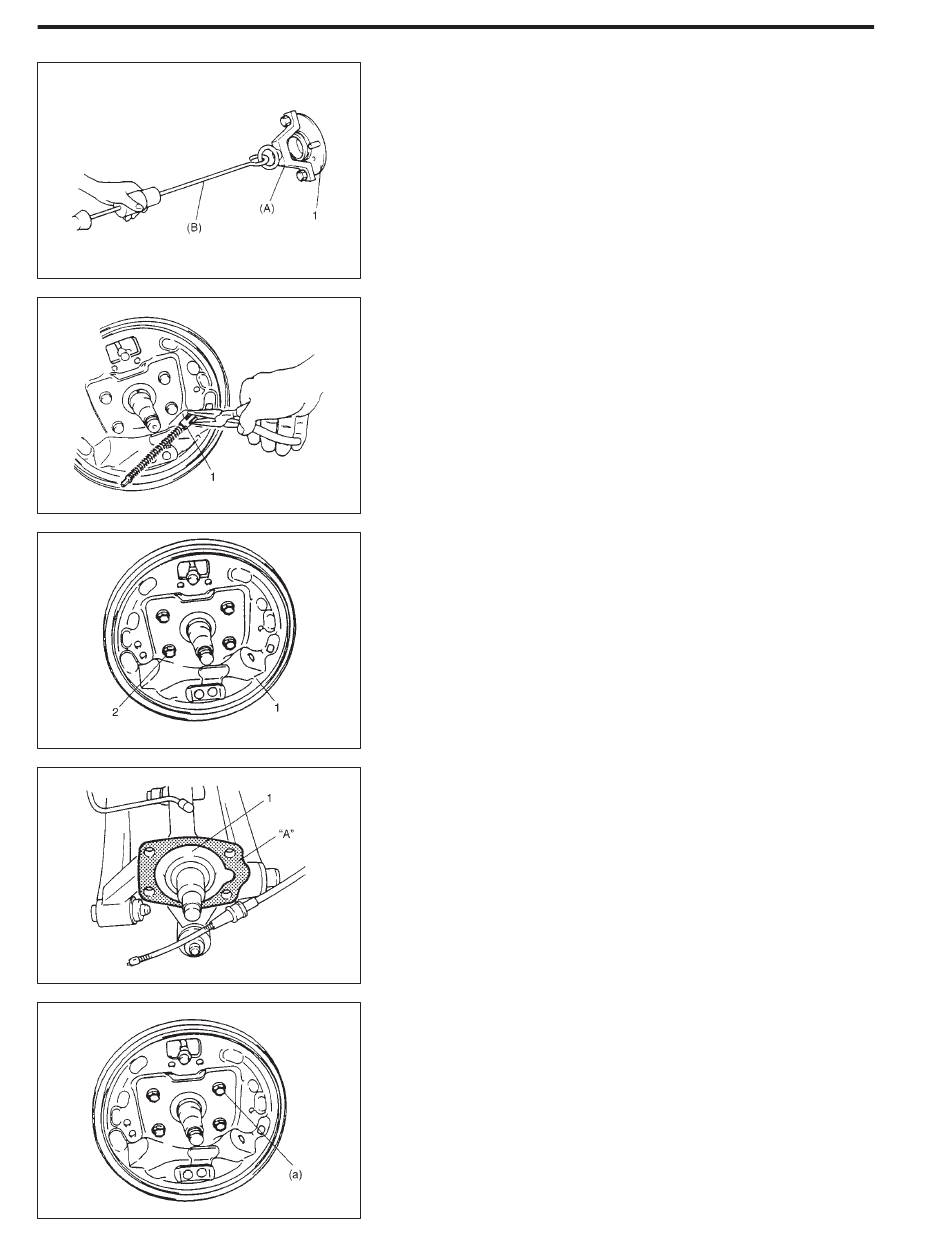

5) Pull wheel hub off by using special tools.
1. Wheel hub
6) Perform steps 2) to 4) of "REMOVAL" under "REMOVE AND
7) Perform steps 3) and 4) of "REMOVAL" under "REMOVE AND
8) Remove cable from brake back plate by squeezing parking
1. Brake cable stopper ring
9) Remove brake back plate.
1. Brake back plate
2. Plate bolt
INSTALLATION
1) Apply water tight sealant to mating surfaces of brake back plate
1. Knuckle
2) Install brake back plate and tighten back plate bolts to specified
Special Tool
(A): 09943-17912
(B): 09942-15511
INSTALL BRAKE SHOE" in this section.
INSTALL WHEEL CYLINDER" in this section.
brake cable stopper ring.
and rear knuckle.
"A": Sealant 99000-31090
torque.
Tightening Torque
.
(a): 50 N
m (5.0 kg-m, 36.0 lb-ft)
