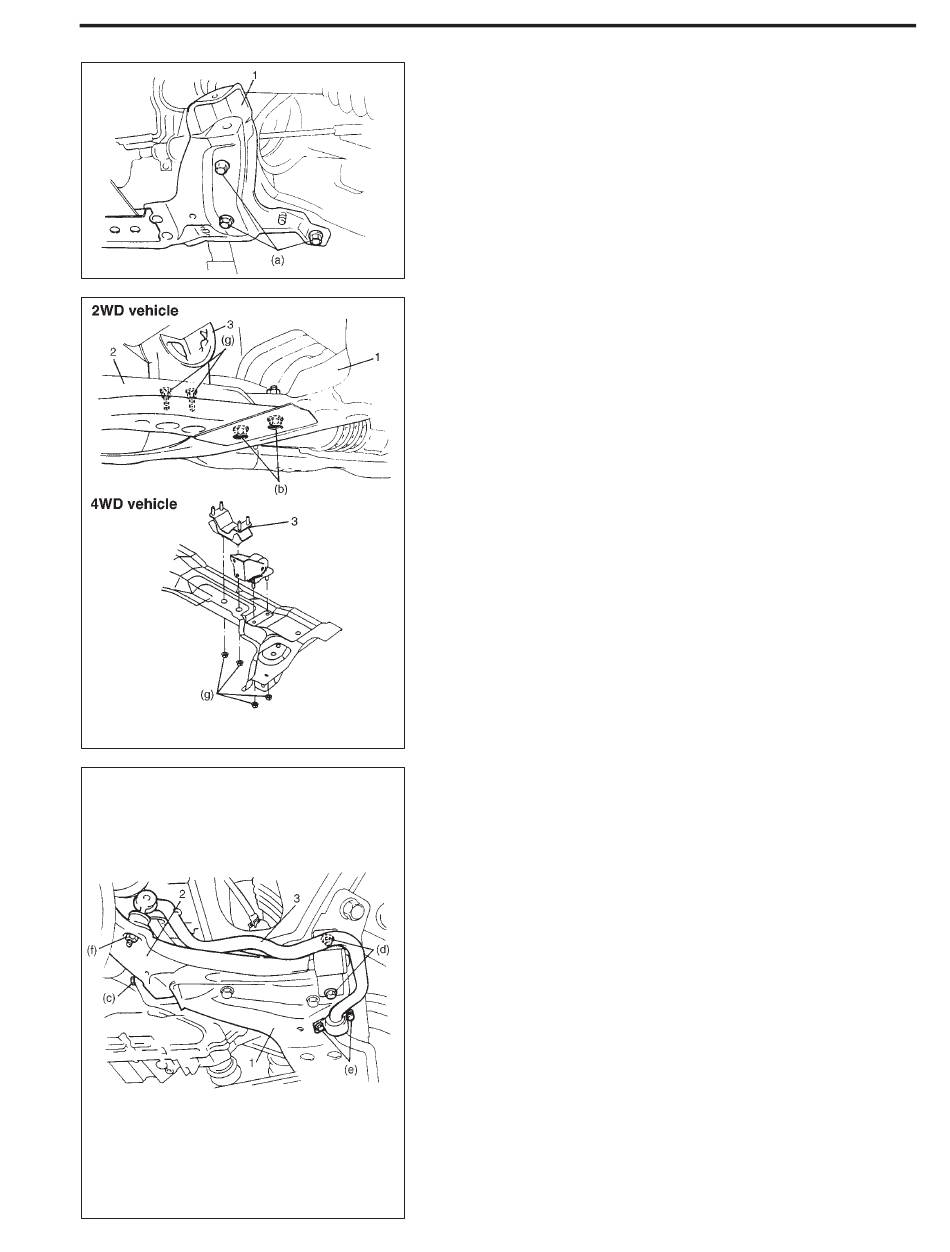

1. Suspension frame
3. Rear engine mounting
2. Mounting member
1. Suspension frame
2. Suspension arm
3. Stabilizer bar
INSTALLATION
1. Suspension frame
1) Install suspension frame to body, and tighten bolt to specified
torque.
Tightening Torque
(a): 90 N·m (9.0 kg-m, 65.0 lb-ft)
2) Install mounting member, spacers and cushions to suspension
frame if removed and tighten bolts and nuts to specified torque.
Tightening Torque
(b): 55 N·m (5.5 kg-m, 40.0 lb-ft)
(g): 45 N·m (4.5 kg-m, 33.0 lb-ft)
3) Install suspension arms (right & left). Refer to Step 3), 4) in SUS-
PENSION ARM INSTALLATION of this section.
4) Install stabilizer bar. Refer to Step 1), 2) in STABILIZER BAR
INSTALLATION of this section.
5) Tighten bolts and nuts to each specified torque.
Tightening Torque
(c): 90 N·m (9.0 kg-m, 65.0 lb-ft)
(d): 37 N·m (3.7 kg-m, 27.0 lb-ft)
(e): 23 N·m (2.3 kg-m, 17.0 lb-ft)
(f): 28 N·m (2.8 kg-m, 20.5 lb-ft)
6) Install wheels (right & left) and lower hoist.
7) Confirm front-end (wheel) alignment referring to Section 3A.
FRONT SUSPENSION 3D-19
