For more information about visibility of linked Revit models, see
1282.

Removing the Color Scheme Display

1 In the Project Browser, right-click the view for which you want to remove the color scheme
2 In the Instance Properties dialog, click the value box for the Color Scheme parameter.
3 In the Edit Color Scheme dialog, select (none) from the list, and click OK.
4 Click OK to exit the Instance Properties dialog.
You can also remove the color scheme display by selecting the color scheme legend in the drawing area,
and clicking Modify Color Fill Legends tab
select (none), and click OK.

Color Scheme Legend

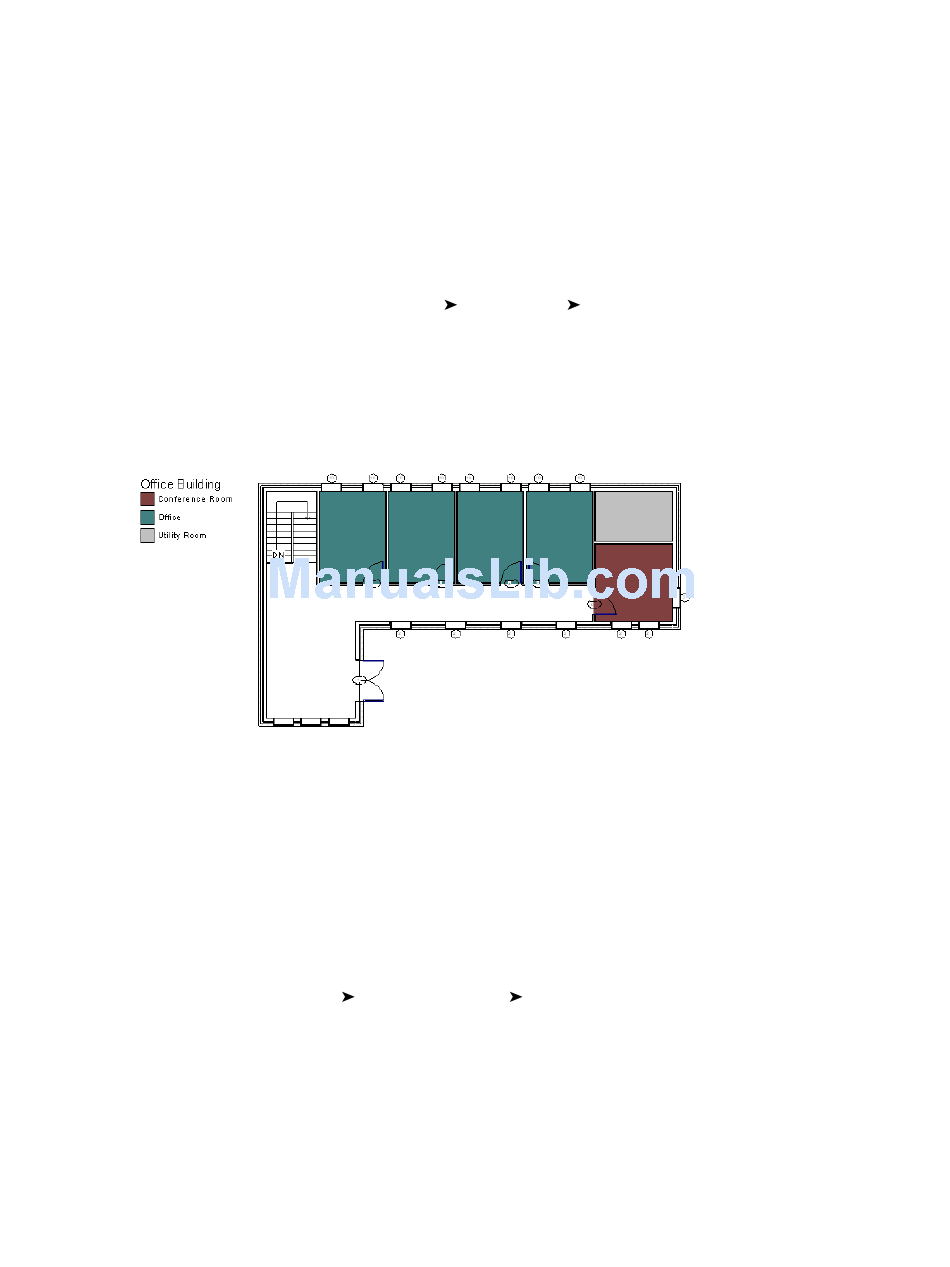

Color schemes color rooms and areas in a floor plan or section view by values that you define. You can add
a color scheme legend to the colored view to identify what the colors represent.
Color scheme legends can be placed anywhere in the floor plan. Multiple color scheme legends can be placed
in a view, or you can apply a color scheme to a view and, if you do not want the color scheme legend to
display, you can select it and delete it.
You can resize color scheme legends using drag controls. You can also resize the swatches in the color scheme
legend, show or hide the legend title, modify the order of items in the legend, and modify the graphic
appearance of the swatches.

Adding a Color Scheme Legend

1 Open a floor plan view or section view.
2 Click Home tab
3 Click in the drawing area to place the color scheme legend.
4 In the Choose Space Type and Color Scheme dialog, select the space type and color scheme,
If the color scheme legend that displays does not reflect the color scheme that you want to use, do the
following:
a In the drawing area, select the legend.
display, and select Properties.
Room & Area panel
and click OK.
Visibility for Linked Revit Models
Scheme panel Edit Scheme. In the Edit Color Scheme dialog,
Legend.
Removing the Color Scheme Display | 1025
on page
