RM0440
Serial peripheral interface / inter-IC sound (SPI/I2S)

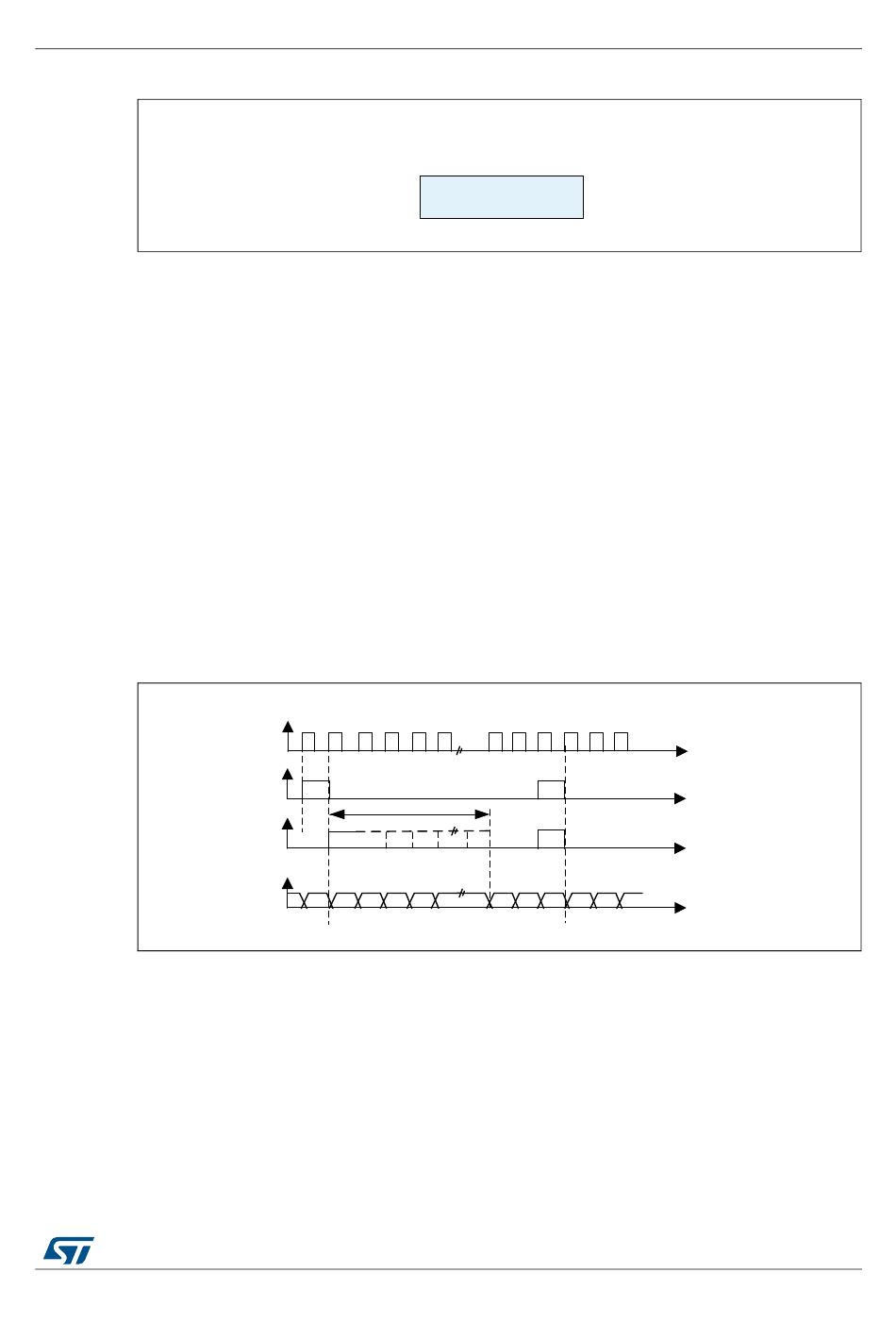

Figure 601. Example of 16-bit data frame extended to 32-bit channel frame
Only one access to the SPIx-DR register
0x76A3
MS19598V1
In transmission mode, when a TXE event occurs, the application has to write the data to be
transmitted (in this case 0x76A3). The 0x000 field is transmitted first (extension on 32-bit).
The TXE flag is set again as soon as the effective data (0x76A3) is sent on SD.
In reception mode, RXNE is asserted as soon as the significant half-word is received (and
not the 0x0000 field).
In this way, more time is provided between two write or read operations to prevent underrun
or overrun conditions.
PCM standard
For the PCM standard, there is no need to use channel-side information. The two PCM
modes (short and long frame) are available and configurable using the PCMSYNC bit in
SPIx_I2SCFGR register.
In PCM mode, the output signals (WS, SD) are sampled on the rising edge of CK signal.
The input signals (WS, SD) are captured on the falling edge of CK.
Note that CK and WS are configured as output in MASTER mode.
Figure 602. PCM standard waveforms (16-bit)
CK
WS
short frame
13-bits
WS
long frame
SD
MSB
LSB MSB
MS30106V1
For long frame synchronization, the WS signal assertion time is fixed to 13 bits in master
mode.
For short frame synchronization, the WS synchronization signal is only one cycle long.
RM0440 Rev 1
1727/2083
1750
