5.7.5 Replacing the axis-5 motor

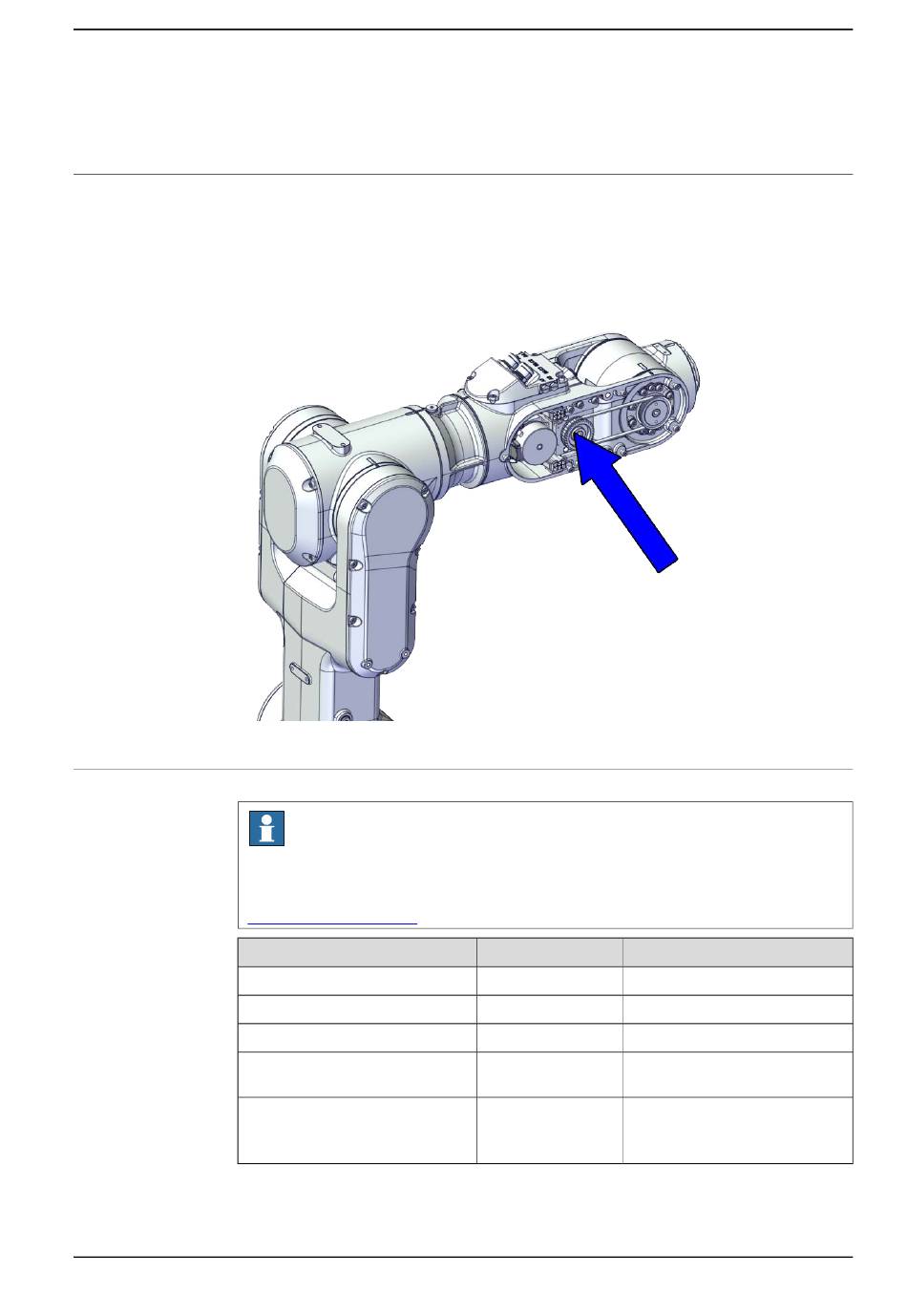

Location of the axis-5 motor
The axis-5 motor is located as shown in the figure.
xx1800002486
Required spare parts
Spare part
Motor with flange, axis 5
Timing belt, axis 5
Wrist cover
Wrist cover, Clean Room
Gasket for wrist cover
Product manual - IRB 1100
3HAC064992-001 Revision: L
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the IRB 1100 via myABB Business Portal,
www.abb.com/myABB.
© Copyright 2019-2022 ABB. All rights reserved.
5.7.5 Replacing the axis-5 motor
Article number Note
3HAC083585-001
3HAC061938-001
3HAC069061-001
3HAC075507-001 Used with protection type Clean
Room.
3HAC061959-009 Used with protection class IP67
and protection type Clean Room.
Replace if damaged.
5 Repair
Continues on next page
