5 Repair
5.8.3 Replacing the axis-3 gearbox
Continued
3
4
Continues on next page
664
Action

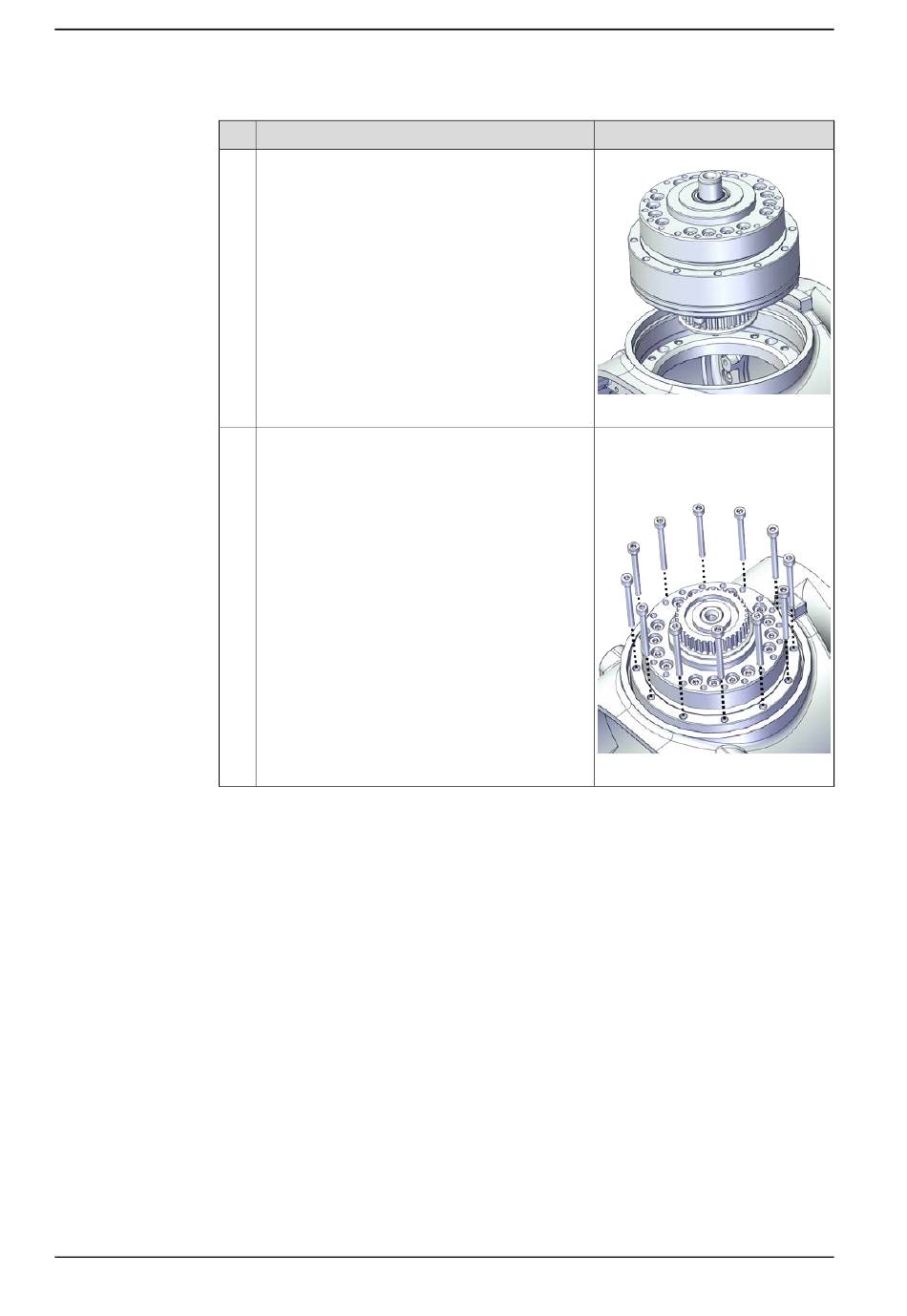

Refit the axis-3 gearbox.
Secure with screws.
© Copyright 2019-2022 ABB. All rights reserved.
Note
xx1800003285
Screw: M3x30 12.9 Lafre
2C2B/FC6.9 (12 pcs)
Tightening torque: 1.8 Nm
xx1800003284
