RM0351
Initialization of a master receiver addressing a 10-bit address slave
•
If the slave address is in 10-bit format, the user can choose to send the complete read
sequence by clearing the HEAD10R bit in the I2C_CR2 register. In this case the master
automatically sends the following complete sequence after the START bit is set:
(Re)Start + Slave address 10-bit header Write + Slave address 2nd byte + REStart +
Slave address 10-bit header Read
•
If the master addresses a 10-bit address slave, transmits data to this slave and then
reads data from the same slave, a master transmission flow must be done first. Then a
repeated start is set with the 10 bit slave address configured with HEAD10R=1. In this
case the master sends this sequence: ReStart + Slave address 10-bit header Read

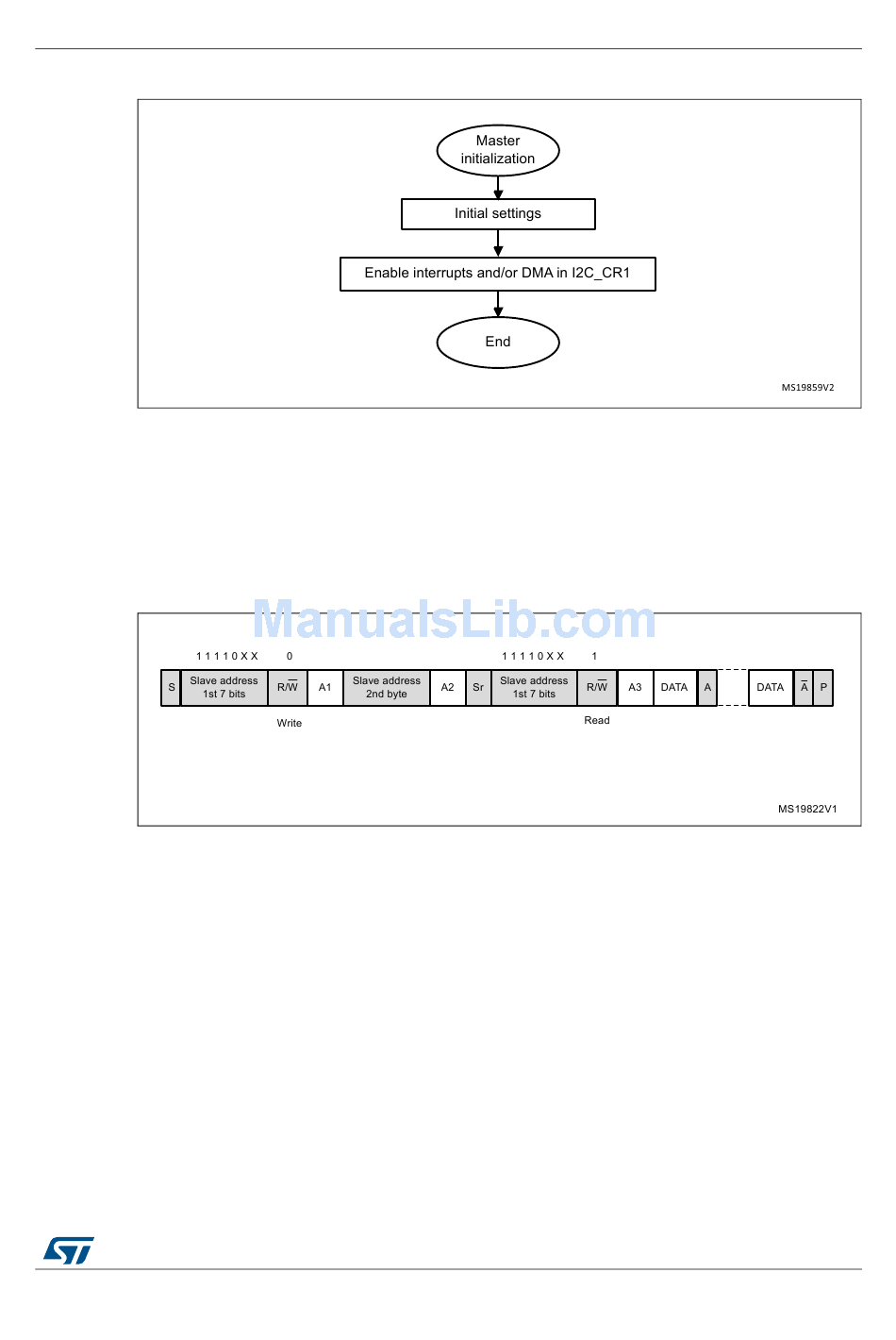

Figure 366. Master initialization flowchart

Figure 367. 10-bit address read access with HEAD10R=0

DocID024597 Rev 3
Inter-integrated circuit (I2C) interface
1131/1693
