Basic timers (TIM6/TIM7)
29
Basic timers (TIM6/TIM7)
29.1

TIM6/TIM7 introduction

The basic timers TIM6 and TIM7 consist of a 16-bit auto-reload counter driven by a
programmable prescaler.
They may be used as generic timers for time-base generation but they are also specifically
used to drive the digital-to-analog converter (DAC). In fact, the timers are internally
connected to the DAC and are able to drive it through their trigger outputs.
The timers are completely independent, and do not share any resources.
29.2
TIM6/TIM7 main features
Basic timer (TIM6/TIM7) features include:
16-bit auto-reload upcounter
16-bit programmable prescaler used to divide (also "on the fly") the counter clock
frequency by any factor between 1 and 65535
Synchronization circuit to trigger the DAC
Interrupt/DMA generation on the update event: counter overflow
1010/1693

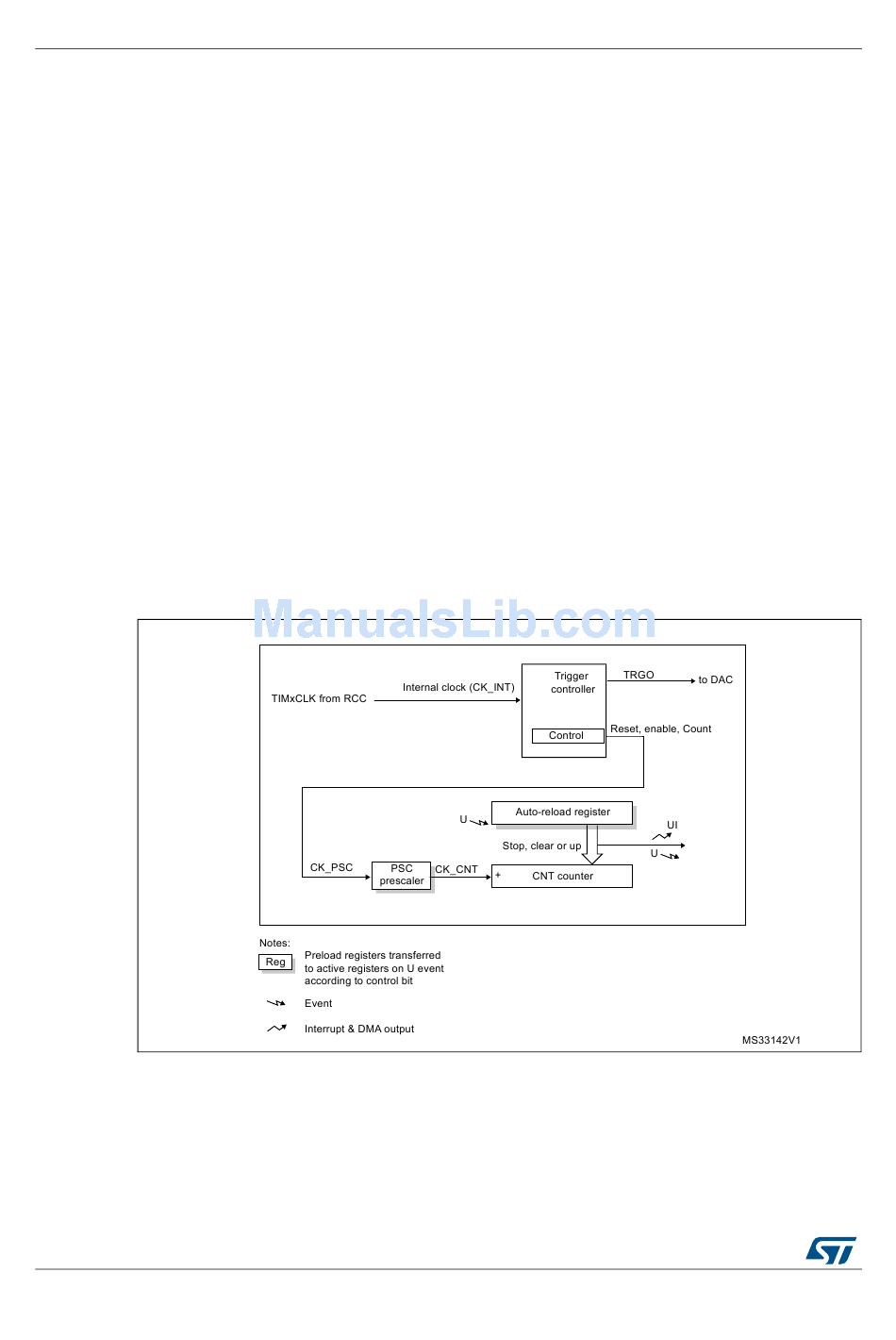

Figure 330. Basic timer block diagram

DocID024597 Rev 3
RM0351
