Absolute System
Dual battery box
10
10-16

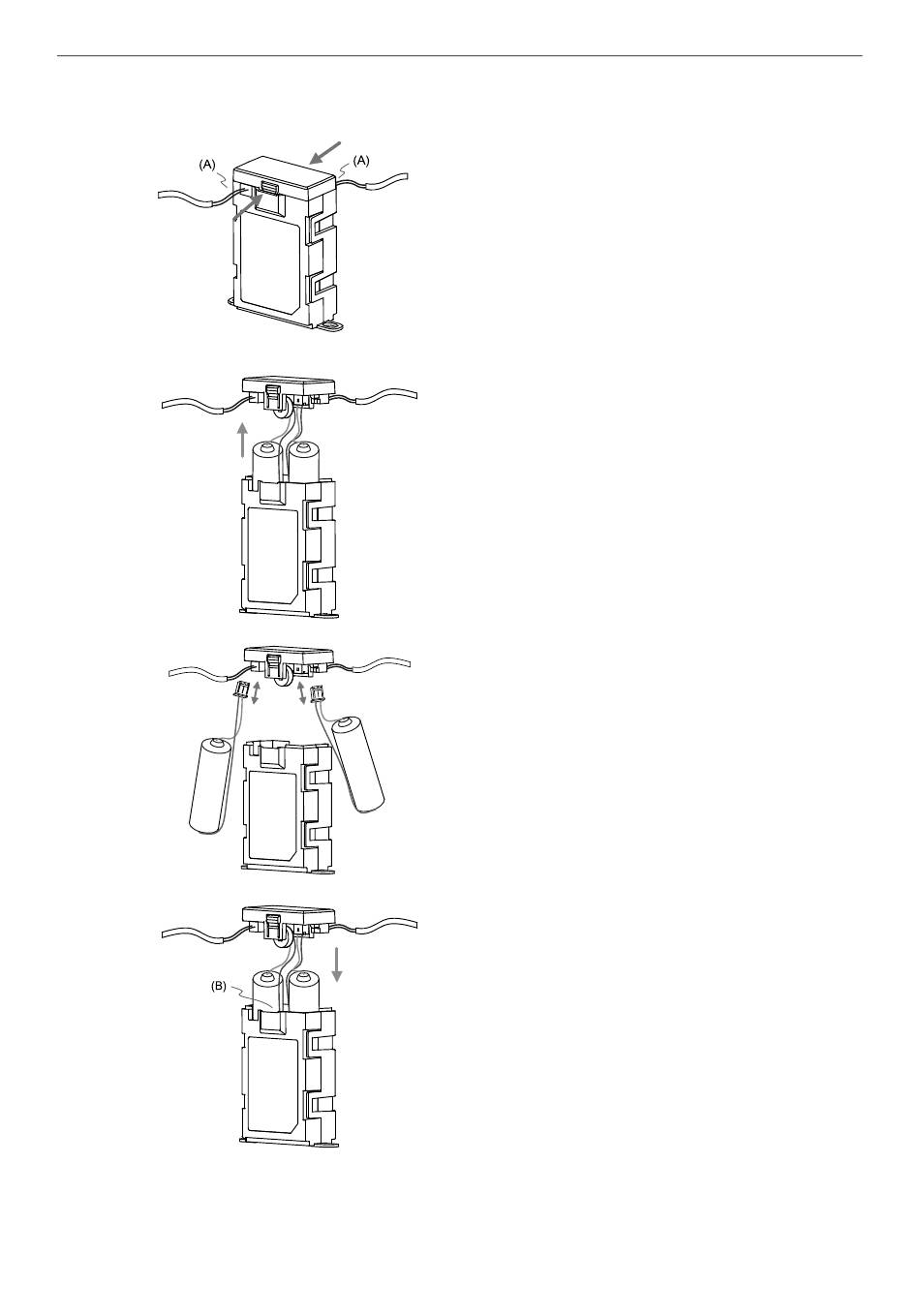

Step 1:
Release the snap-fit tabs on both sides and
remove the battery box lid.
(A) Replace the batteries only when the main
power to the servo drive is on. Do not
remove the battery box cables which connect
to the servo drive, or else the system may
lose data.
Step 2:
Lift the lid and pull out the batteries.
Step 3:
Disconnect the connectors to remove the
used batteries. Plug in the connection wire of
the new batteries. Replace the new batteries
within ten minutes to avoid data loss.
Step 4:
Fit the lid.
(B) Place the battery connection wires
toward the inside of the box so that the
batteries both fit inside the box.
