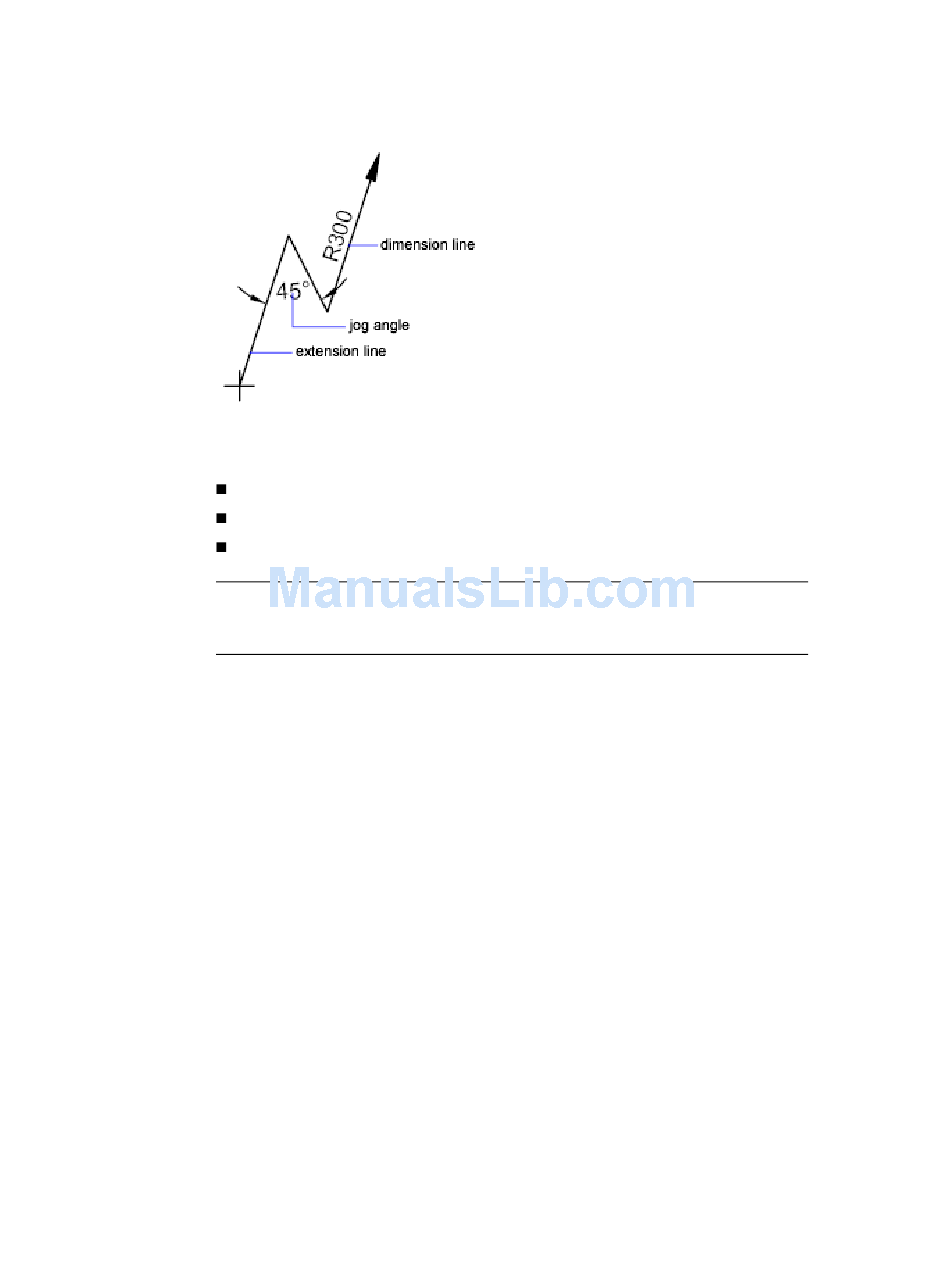

Once a jogged radius dimension is created, you can modify the jog and the
center location override by
Using grips to move the features
Changing the locations of the features with the Properties Inspector
Using STRETCH
NOTE Jogged radius dimensions can be viewed but not edited in versions previous
to AutoCAD LT 2006. Also, if you make dramatic changes to the associated
geometry, you may get unpredictable results for the jogged radius dimension.
See also:
Fit Dimension Text Within Extension Lines
Create Angular Dimensions
Angular dimensions measure the angle between two lines or three points.
To measure the angle between two radii of a circle, you select the circle and
specify the angle endpoints. With other objects, you select the objects and
then specify the dimension location. You can also dimension an angle by
specifying the angle vertex and endpoints. As you create the dimension, you
can modify the text content and alignment before specifying the dimension
line location.
406 | Chapter 9 Annotate Drawings
(page 385)
