Figure 134. Example Of Counter Operation In Encoder Interface Mode; Figure 135. Example Of Encoder Interface Mode With Ti1Fp1 Polarity Inverted - ST STM32F101 series Reference Manual

General-purpose timers (TIM2 to TIM5)
Counter
Figure 135
configuration as above except CC1P=1).

Figure 135. Example of encoder interface mode with TI1FP1 polarity inverted

Counter
The timer, when configured in Encoder Interface mode provides information on the sensor's
current position. You can obtain dynamic information (speed, acceleration, deceleration) by
measuring the period between two encoder events using a second timer configured in
capture mode. The output of the encoder which indicates the mechanical zero can be used
for this purpose. Depending on the time between two events, the counter can also be read
at regular times. You can do this by latching the counter value into a third input capture
register if available (then the capture signal must be periodic and can be generated by
another timer). when available, it is also possible to read its value through a DMA request
generated by a Real-Time clock.
387/1128

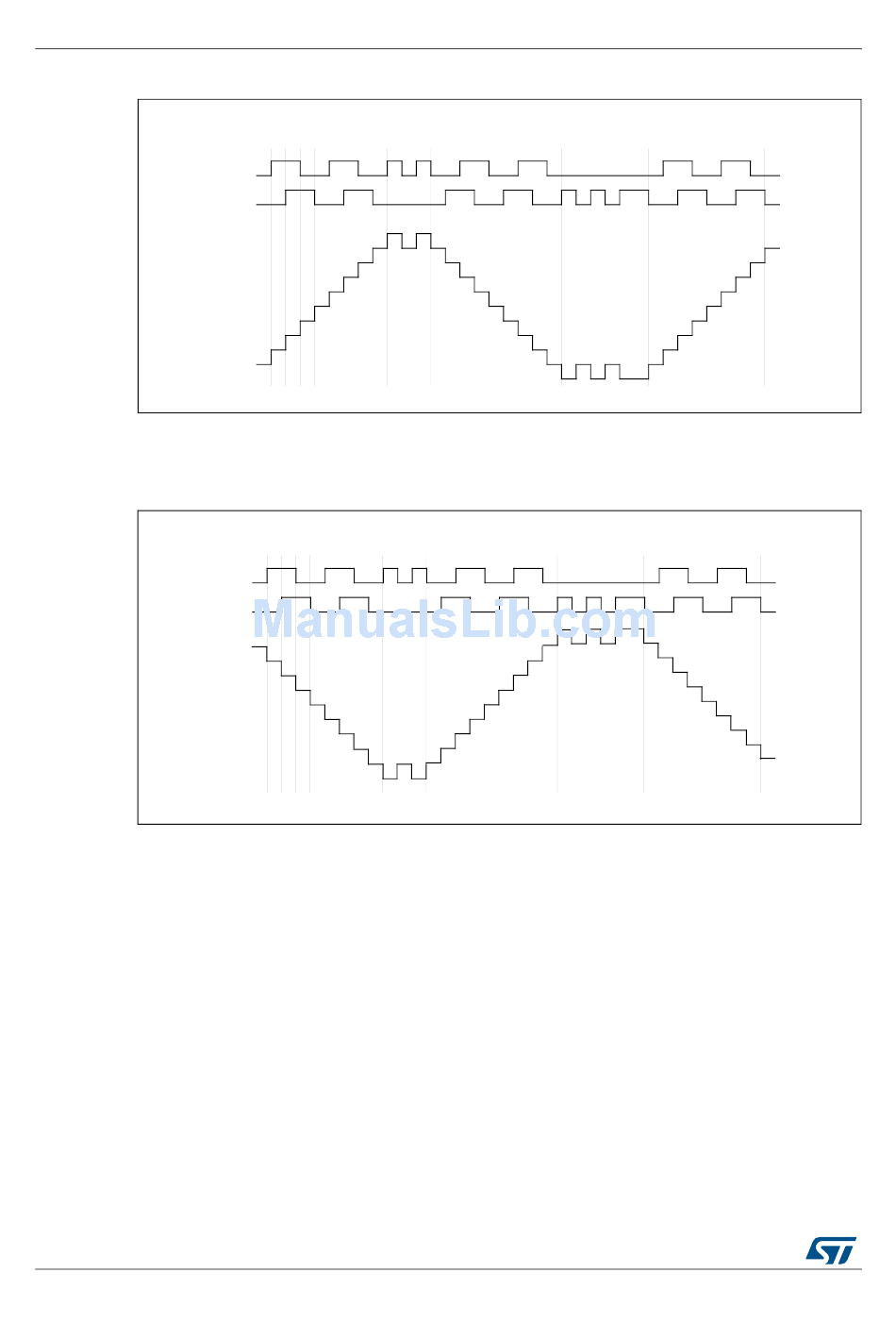

Figure 134. Example of counter operation in encoder interface mode

forward
TI1
TI2
up
gives an example of counter behavior when TI1FP1 polarity is inverted (same
forward
TI1
TI2
down
DocID13902 Rev 15
jitter backward
down
jitter backward
up
jitter forward
up
jitter forward
down
RM0008
