Analog-to-digital converter (ADC)
11.3.9

Injected channel management

Triggered injection
To use triggered injection, the JAUTO bit must be cleared and SCAN bit must be set in the
ADC_CR1 register.
1. Start conversion of a group of regular channels either by external trigger or by setting
the ADON bit in the ADC_CR2 register.
2. If an external injected trigger occurs during the regular group channel conversion, the
current conversion is reset and the injected channel sequence is converted in Scan
once mode.
3. Then, the regular group channel conversion is resumed from the last interrupted
regular conversion. If a regular event occurs during an injected conversion, it doesn't
interrupt it but the regular sequence is executed at the end of the injected sequence.
Figure 25
Note: When using triggered injection, the interval between trigger events must be longer than the
injection sequence. For instance, if the sequence length is 28 ADC clock cycles (that is two
conversions with a 1.5 clock-period sampling time), the minimum interval between triggers
must be 29 ADC clock cycles.
Auto-injection
If the JAUTO bit is set, then the injected group channels are automatically converted after
the regular group channels. This can be used to convert a sequence of up to 20 conversions
programmed in the ADC_SQRx and ADC_JSQR registers.
In this mode, external trigger on injected channels must be disabled.
If the CONT bit is also set in addition to the JAUTO bit, regular channels followed by injected
channels are continuously converted.
For ADC clock prescalers ranging from 4 to 8, a delay of 1 ADC clock period is automatically
inserted when switching from regular to injected sequence (respectively injected to regular).
When the ADC clock prescaler is set to 2, the delay is 2 ADC clock periods.
Note: It is not possible to use both auto-injected and discontinuous modes simultaneously.
ADC clock
Inj. event
Reset ADC
SOC
1. The maximum latency value can be found in the electrical characteristics of the STM32F101xx and
STM32F103xx datasheets.
221/1128
shows the timing diagram.

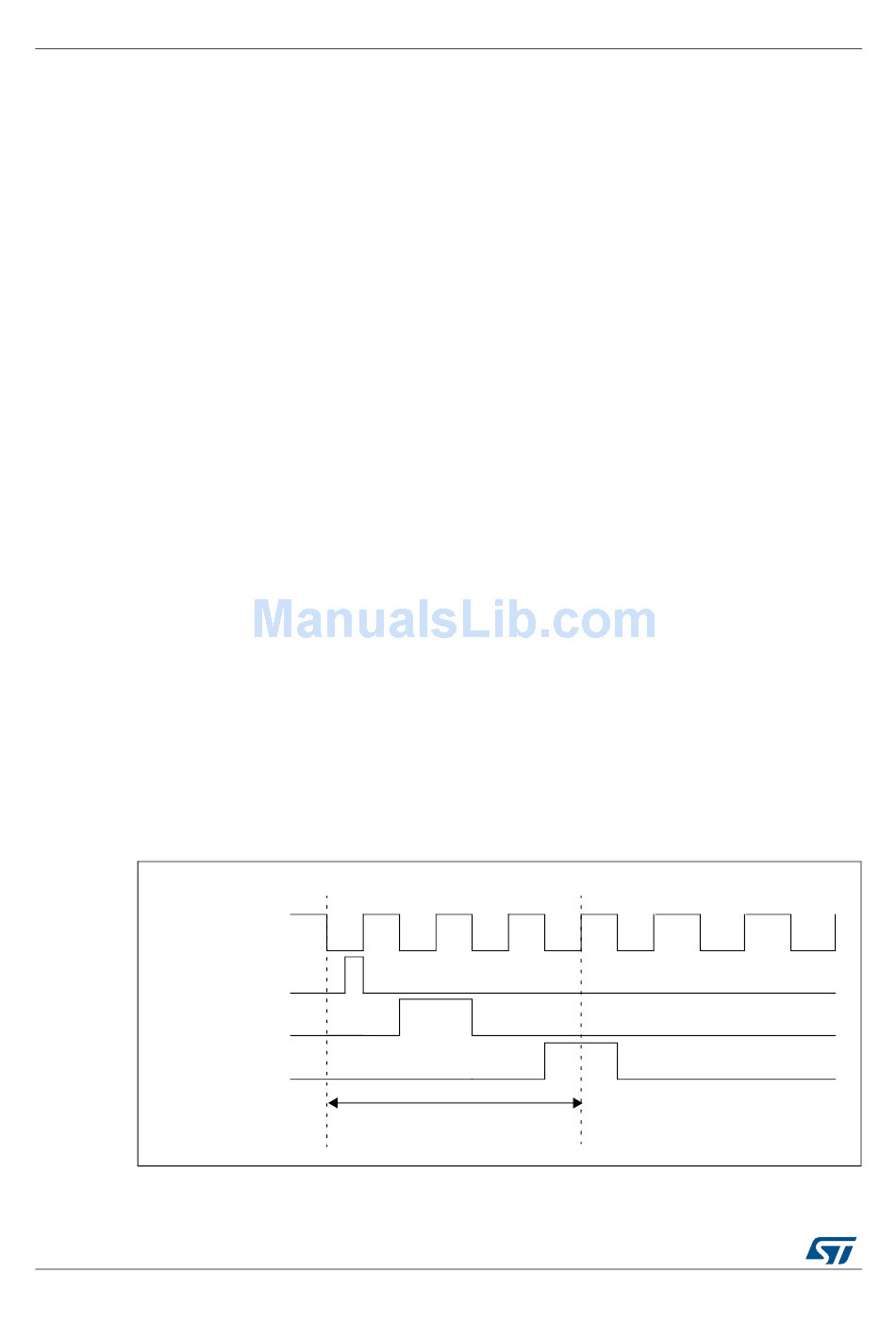

Figure 25. Injected conversion latency

max latency
DocID13902 Rev 15
(1)
