RM0008
2
25.4 I S functional description
2
The I S audio protocol is not available in low- and medium-density devices. This section
concerns only high-density, XL-density and connectivity line devices.
2
25.4.1 I S general description
The block diagram of the I
2
S is shown in Figure
2

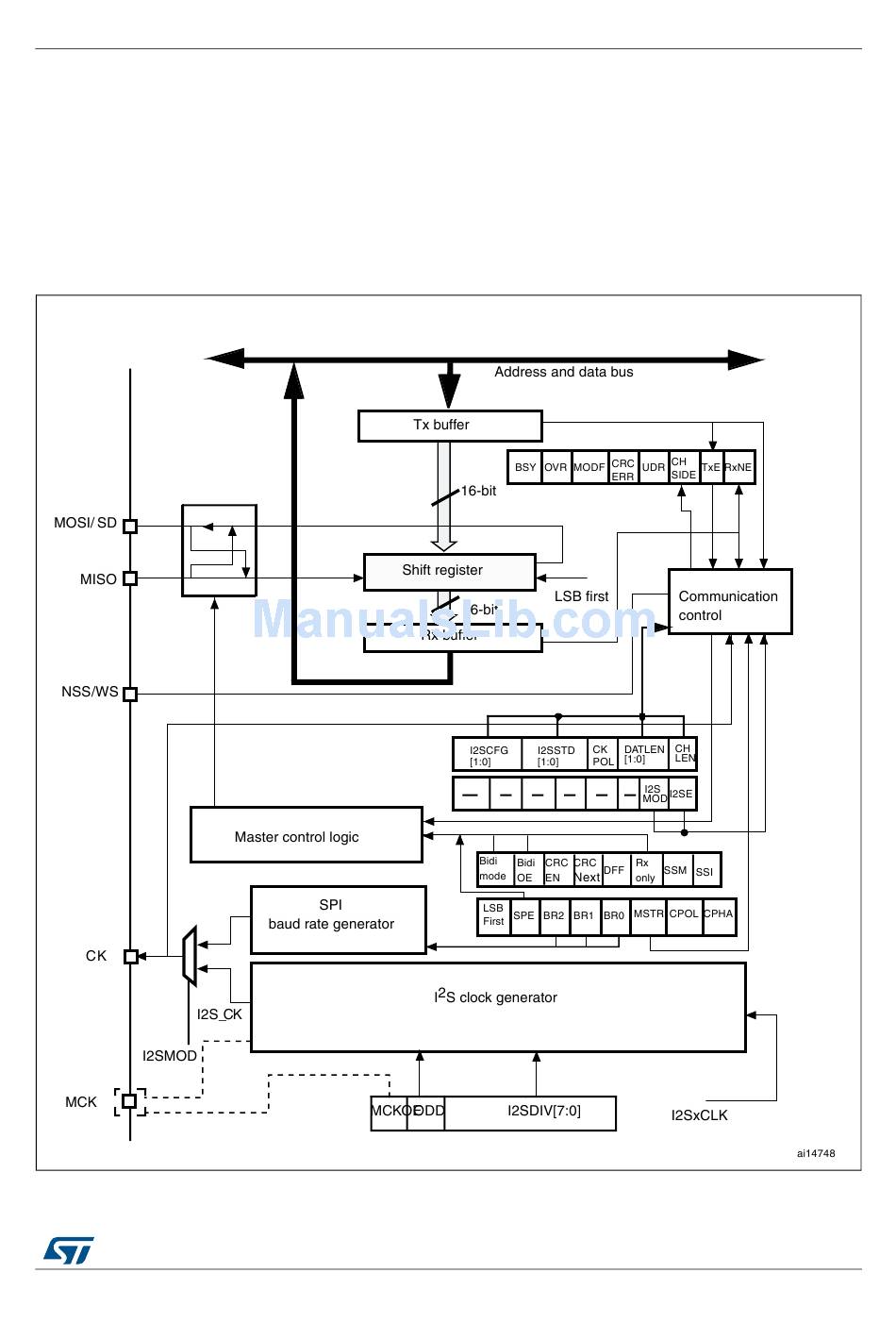

Figure 248. I S block diagram
DocID13902 Rev 15
Serial peripheral interface (SPI)
248.
714/1128
742
