RM0008
The differences with mode1 are the toggling of NWE and the independent read and write
timings when extended mode is set (Mode B).

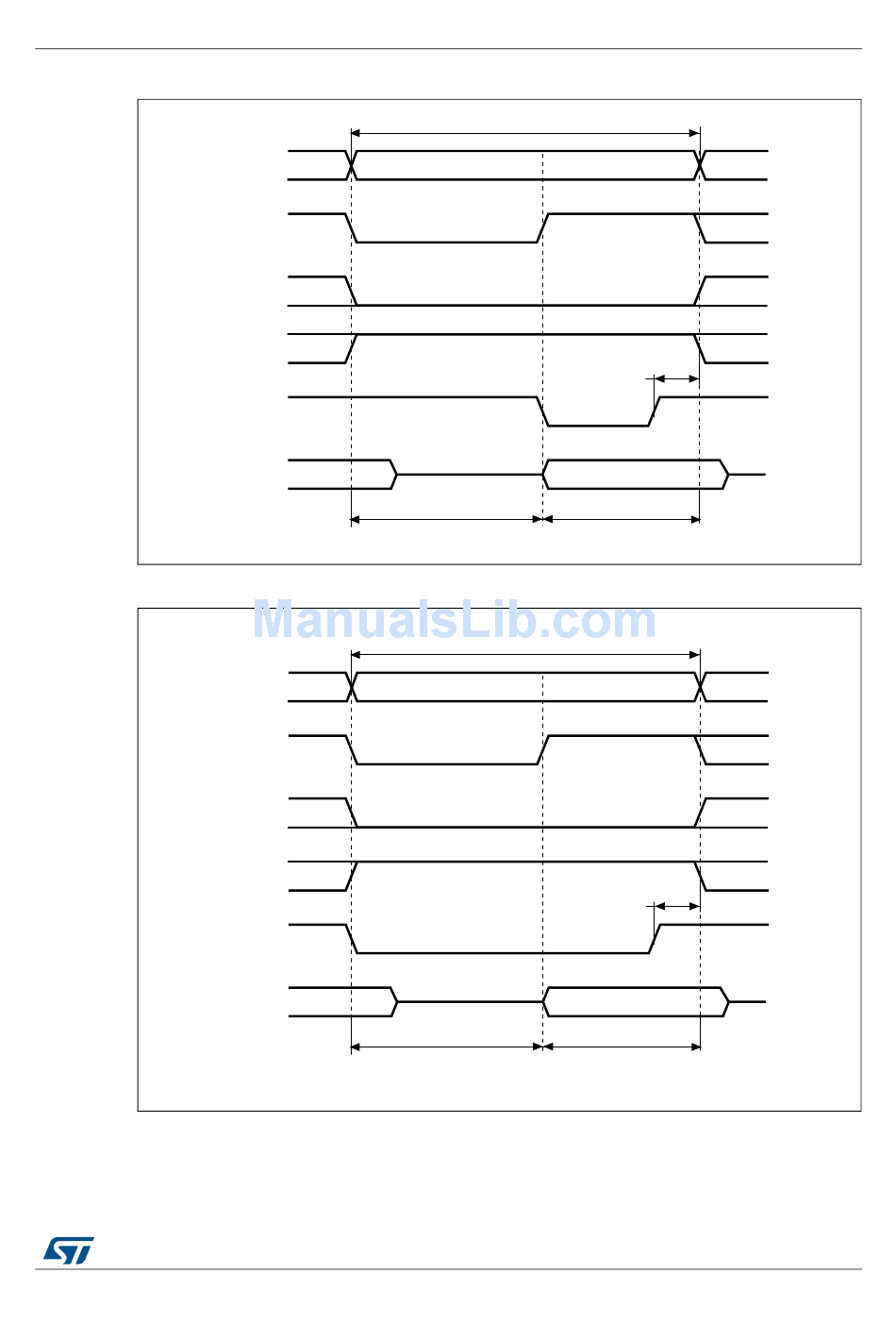

Figure 192. Mode2 write accesses

A[25:0]
NADV
NEx
NOE
NWE
D[15:0]
(ADDSET +1)
HCLK cycles

Figure 193. Mode B write accesses

A[25:0]
NADV
NEx
NOE
NWE
D[15:0]
(ADDSET +1)
HCLK cycles
DocID13902 Rev 15
Flexible static memory controller (FSMC)
Memory transaction
1HCLK
data driven by FSMC
(DATAST + 1)
HCLK cycles
Memory transaction
1HCLK
data driven by FSMC
(DATAST + 1)
HCLK cycles
ai14723b
ai15110b
514/1128
