Figure 67. Counter Timing Diagram, Internal Clock Divided By 2; Figure 68. Counter Timing Diagram, Internal Clock Divided By 4, Timx_Arr=0X36; Figure 69. Counter Timing Diagram, Internal Clock Divided By N - ST STM32F101 series Reference Manual

Advanced-control timers (TIM1&TIM8)

Figure 68. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

1. Center-aligned mode 2 or 3 is used with an UIF on overflow.
303/1128

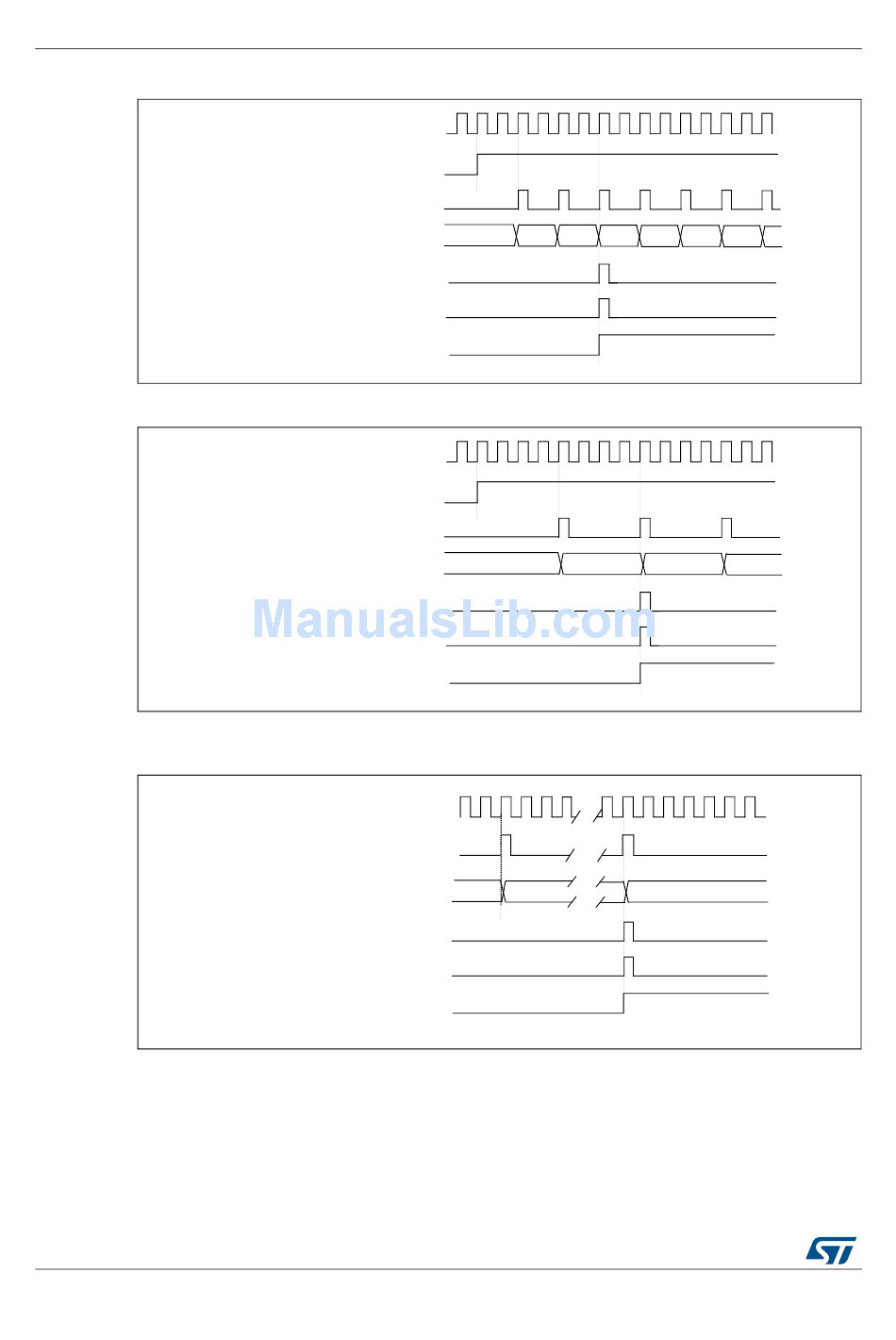

Figure 67. Counter timing diagram, internal clock divided by 2

CK_PSC
CNT_EN
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
CK_PSC
CNT_EN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)

Figure 69. Counter timing diagram, internal clock divided by N

CK_PSC
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
