Analog-to-digital converter (ADC)
(digital word) is calculated for each capacitor, and during all subsequent conversions, the
error contribution of each capacitor is removed using this code.
Calibration is started by setting the CAL bit in the ADC_CR2 register. Once calibration is
over, the CAL bit is reset by hardware and normal conversion can be performed. It is
recommended to calibrate the ADC once at power-on. The calibration codes are stored in
the ADC_DR as soon as the calibration phase ends.
Note: It is recommended to perform a calibration after each power-up.
Before starting a calibration, the ADC must have been in power-on state (ADON bit = '1') for
at least two ADC clock cycles.
CLK
CAL
ADC
Conversion
11.5

Data alignment

ALIGN bit in the ADC_CR2 register selects the alignment of data stored after conversion.
Data can be left or right aligned as shown in
The injected group channels converted data value is decreased by the user-defined offset
written in the ADC_JOFRx registers so the result can be a negative value. The SEXT bit is
the extended sign value.
For regular group channels no offset is subtracted so only twelve bits are significant.
Injected group
SEXT
Regular group
0
Injected group
SEXT
Regular group
D11
223/1128

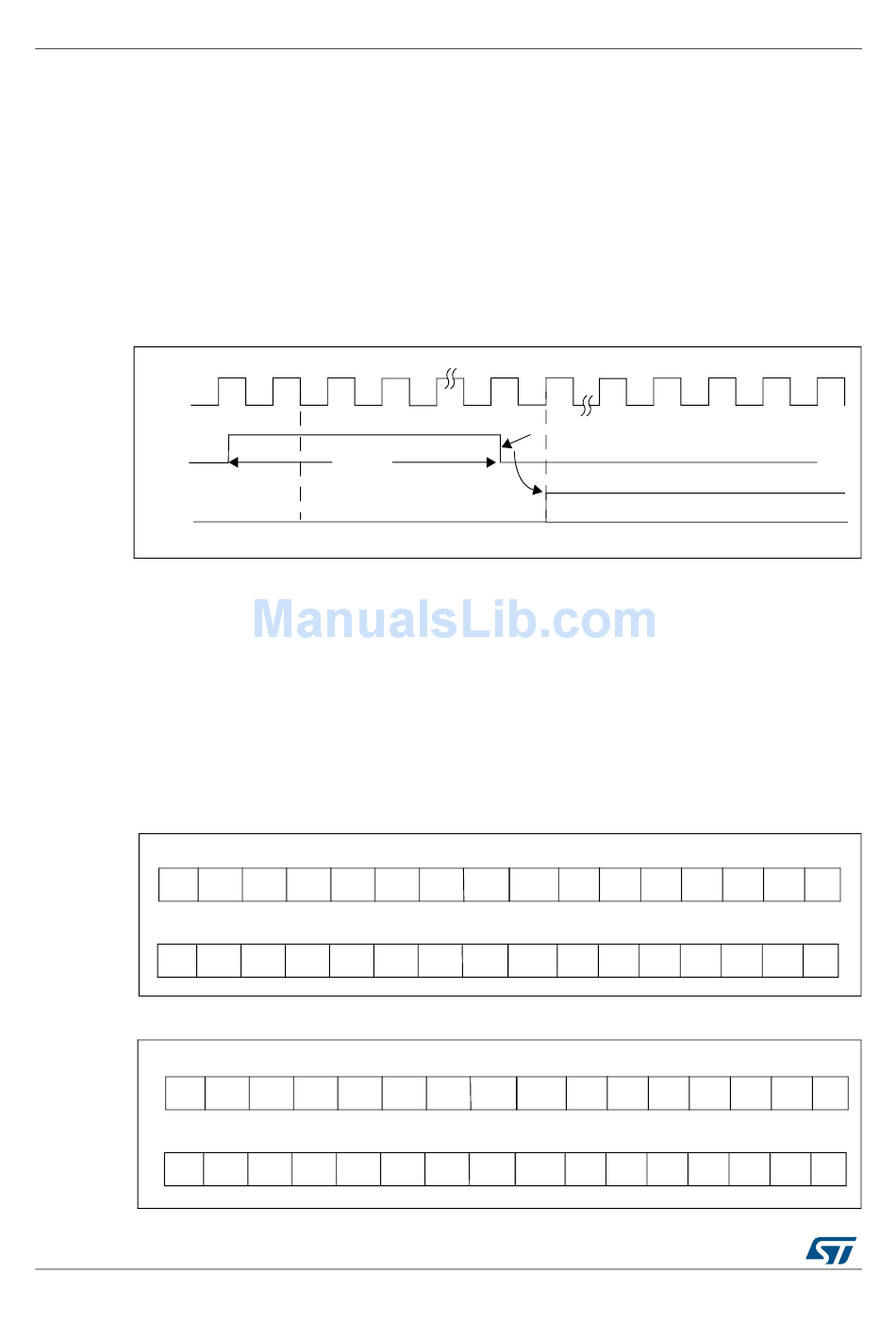

Figure 26. Calibration timing diagram
