Serial peripheral interface (SPI)
Transmit-only procedure (BIDIMODE=0 RXONLY=0)
In this mode, the procedure can be reduced as described below and the BSY bit can be
used to wait until the completion of the transmission (see
1. Enable the SPI by setting the SPE bit to 1.
2. Write the first data item to send into the SPI_DR register (this clears the TXE bit).
3. Wait until TXE=1 and write the next data item to be transmitted. Repeat this step for
each data item to be transmitted.
4. After writing the last data item into the SPI_DR register, wait until TXE=1, then wait until
BSY=0, this indicates that the transmission of the last data is complete.
This procedure can be also implemented using dedicated interrupt subroutines launched at
each rising edge of the TXE flag.
Note: During discontinuous communications, there is a 2 APB clock period delay between the
write operation to SPI_DR and the BSY bit setting. As a consequence, in transmit-only
mode, it is mandatory to wait first until TXE is set and then until BSY is cleared after writing
the last data.
After transmitting two data items in transmit-only mode, the OVR flag is set in the SPI_SR
register since the received data are never read.

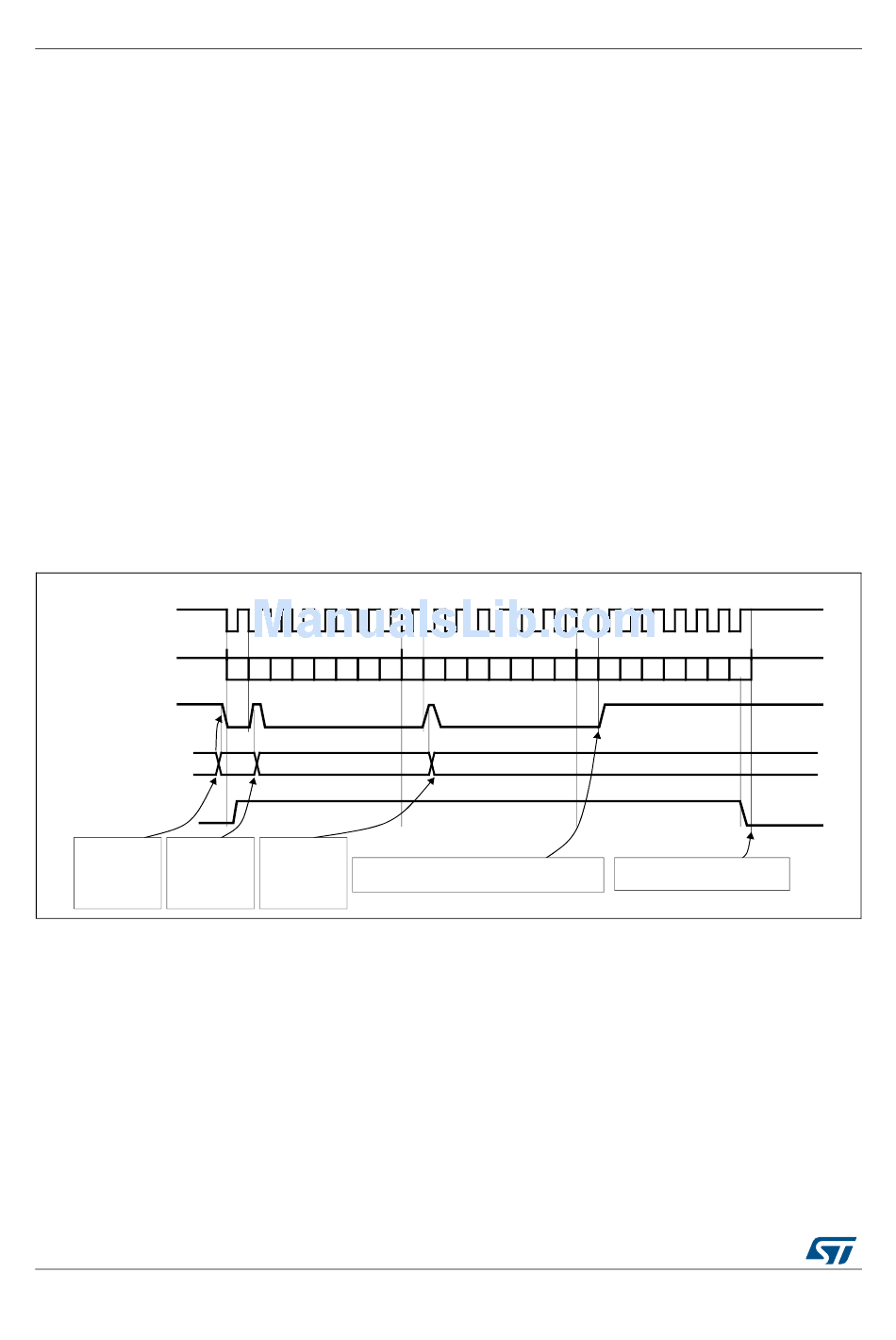

Figure 242. TXE/BSY behavior in Master transmit-only mode (BIDIMODE=0 and RXONLY=0) in

Example in Master mode with CPOL=1, CPHA=1
SCK
MISO/MOSI (out)
TXE flag
Tx buffer
(write to SPI_DR)
BSY flag
software writes software waits
0xF1 into until TXE=1 and
SPI_DR writes 0xF2 into
SPI_DR
703/1128

case of continuous transfers

DATA 1 = 0xF1
b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7
set by hardware
cleared by software
0xF1 0xF2
set by hardware
software waits
until TXE=1 and
writes 0xF3 into
SPI_DR
DocID13902 Rev 15
DATA 2 = 0xF2
set by hardware
cleared by software
0xF3
software waits until TXE=1
Figure 242 and Figure
DATA 3 = 0xF3
set by hardware
reset by hardware
software waits until BSY=0
RM0008
243).
ai17345
